Yaheetech 614279 140x200cm Bed Frame Assembly Instructions

Assembly guide for the Yaheetech 614279 140x200cm bed frame. Includes parts list, step-by-step installation instructions, safety warnings, and maintenance tips.

Table of contents

Manual images

Click an image to enlarge
Box identification: Ensure you have both boxes (1/2 and 2/2). Page 1 Assembly requirements: 2 people, 60 minutes, and tightening method. Page 3 Exploded view of the bed frame. Page 8 Step 1: Attaching side rails to the headboard. Page 9 Step 9: Final assembly with slats. Page 17

Quick guide from the manual

This bed frame requires 2 people for assembly and takes approximately 60 minutes to complete. The most important rule during assembly is to half-tighten all screws into the holes first. Only after all screws are set should you fully tighten them with the provided tool. This ensures proper alignment and prevents structural issues.

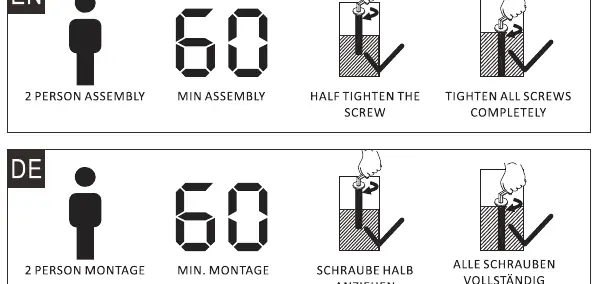

Assembly requirements: 2 people, 60 minutes, and tightening method.
Assembly requirements: 2 people, 60 minutes, and tightening method.

Safety and Maintenance

  • Keep the product away from fire or other heat sources.
  • It is recommended to wear protective gloves during assembly.
  • Use a pad or soft surface to avoid damaging the floor or the frame during assembly.
  • Maintenance: Every 90 days, check that all nuts, screws, and knobs are securely fastened.
  • If any parts are missing, broken, damaged, or worn, stop using the item until repairs are made or factory replacement parts are installed.

Parts List

The product is delivered in 2 separate boxes (1/2 and 2/2). Ensure you have both boxes before starting. The manual provides a detailed breakdown of all components, including screws (labeled 1, 2, 3), frame parts (A, B, C1, C2, C3, C4, D, E, F, G, H, I, J, K, L, M, N), and tools (4).

Box identification: Ensure you have both boxes (1/2 and 2/2).
Box identification: Ensure you have both boxes (1/2 and 2/2).

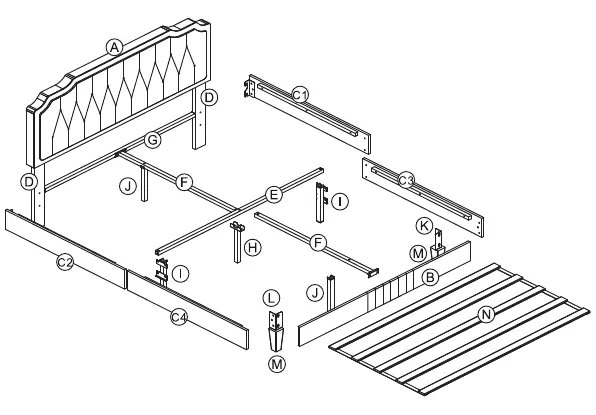

Exploded view of the bed frame.
Exploded view of the bed frame.

Assembly Instructions

The assembly process is divided into 9 steps:

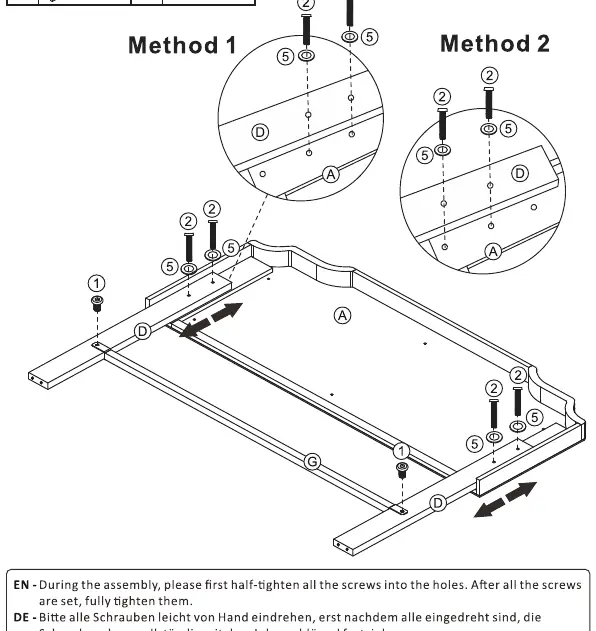

Step 1: Attaching side rails to the headboard.
Step 1: Attaching side rails to the headboard.

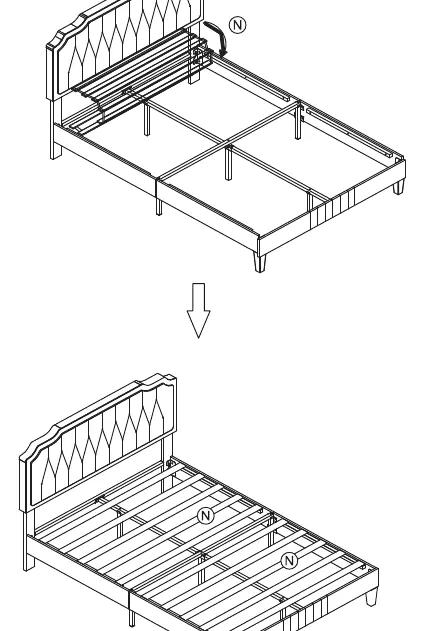

Step 9: Final assembly with slats.
Step 9: Final assembly with slats.
  1. Step 1: Attach the side rails to the headboard using the specified screws and washers.
  2. Step 2-3: Assemble the central support beams and brackets.
  3. Step 4: Connect the side rails to the headboard and footboard sections.
  4. Step 5-7: Install the central support legs and crossbars.
  5. Step 8: Secure all remaining support structures.
  6. Step 9: Place the slats (N) onto the frame to complete the assembly.

Manufacturer information

Yaheetech

Brand profile
Manufacturer website https://yaheetech.shop

Practical help

Common problems

Squeaking or instability

Check all bolts and screws every 90 days and ensure they are fully tightened.

Missing parts

Stop assembly immediately and contact the seller via your order history.

Before use

  • Ensure you have received both boxes (1/2 and 2/2).
  • Prepare a soft surface or pad to protect the floor and frame.
  • Wear protective gloves.
  • Ensure 2 people are available for assembly.
  • Check that all parts listed in the parts list are present.

Specs in practice

Assembly Time
Approximately 60 minutes.
Personnel Required
2 people recommended.
Maintenance Interval
Check and tighten all hardware every 90 days.

Images and diagrams

  • The manual uses a 'half-tighten' method: insert all screws into holes first, then tighten them fully once the structure is set.

Model compatibility

  • Designed for 140x200cm mattress size.
