Installation Manual for Z-Lite 1100-1S Light Fixture
Quick guide for installing the Z-Lite 1100-1S light fixture. Includes step-by-step wiring instructions, grounding procedures, and assembly details.
Quick answers from the manual
Quick answer
- This document provides instructions for the safe installation, wiring, and assembly of the Z-Lite 1100-1S light fixture. p. 1
Key actions
- Secure the universal mounting plate to the outlet box. p. 1
- Connect the fixture ground wire to the green grounding screw and the outlet box ground wire. p. 1
- Connect fixture wires to house wires based on Group A or Group B identification. p. 1
- Assemble the backplate, glass, and install the light bulb. p. 1
First start
- Ensure electricity is shut off at the fuse or circuit breaker before beginning installation. p. 1
- Check that all parts are included as shown in the figure. p. 1
Show 2 more answers Show less
Maintenance and reset
- Wipe fixture with a soft cloth and clean glass with mild soap; avoid abrasive materials. p. 1
Where to find it in the PDF
- Installation and Safety Instructions p. 1
Table of contents
Quick Guide for Installation
This document provides instructions for the safe installation of the Z-Lite 1100-1S light fixture. Important: Always turn off the electricity at the circuit breaker or fuse box before beginning any work. Do not attach the fixture directly to the outlet box without the mounting plate. If you are unsure about the installation process, consult a qualified electrician.
Fixture Assembly and Installation
Follow these steps to install your fixture:
- Mounting: Secure the universal mounting plate (B) to the outlet box using the provided outlet box screws.
- Grounding: Insert the green grounding screw into the circular strap. Wrap the ground wire from the fixture around the screw and connect it to the ground wire from the outlet box using a wire connector.
- Wiring: Identify your fixture wires and connect them to the house wires as follows:
- Group A (Connect to Black House Wire): Black wire, or parallel wire (round & smooth), or white/grey wire with tracer, or brown/gold/black wire without tracer.
- Group B (Connect to White House Wire): White wire, or parallel wire (square & ridged), or white/grey wire without tracer, or brown/gold/black wire with tracer.
- Securing Connections: Place the fixture wire against the house wire, fit a wire connector (not supplied) over them, and screw clockwise until firm. Gently pull the connector to ensure a secure connection.
- Final Assembly: Tuck wires into the outlet box. Assemble the backplate to the mounting plate and secure it with the mounting screws (A). Slide the glass (E) over the socket, then secure the retaining ring (G) and metal cover (F) using the spacer tool (H).
- Bulb Installation: Install the light bulb (not included). Do not exceed the maximum capacity recommended on the socket.
Cleaning and Maintenance
To clean the fixture, wipe it with a soft cloth. Clean the glass with a mild soap. Do not use abrasive materials such as scouring pads, powders, steel wool, or abrasive paper.
Practical help
Common problems
Fixture does not light up
Check that the circuit breaker is on and that the wiring connections are secure and correct according to the Group A/Group B instructions.
Wire connector pulls off
Re-do the connection: ensure wires are placed evenly against each other and the connector is screwed on clockwise until firm.
Glass is loose
Ensure the retaining ring (G) and metal cover (F) are properly tightened to the socket using the spacer tool (H).
Before use
- Turn off electricity at the circuit breaker or fuse box.
- Verify all parts are present according to the assembly diagram.
- Identify house wire colors (Black/White).
- Ensure you have wire connectors (not supplied) available.
- Check that the mounting surface is suitable for the fixture.
Show more Show less
Specs in practice
- Group A Wire
- Fixture wires that connect to the Black (hot) house wire.
- Group B Wire
- Fixture wires that connect to the White (neutral) house wire.
- Parallel Wire (SPT-1 & SPT-2)
- Used for identification: the tracer wire is square/ridged, while the non-tracer wire is round/smooth.
Images and diagrams

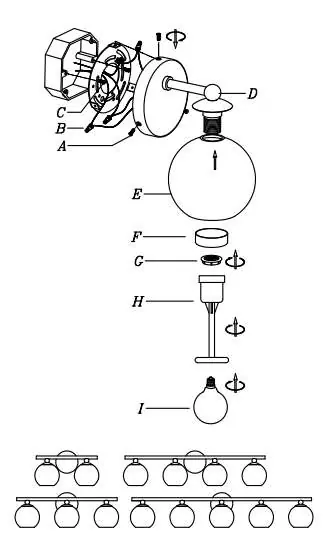

- The diagram illustrates the assembly order: Mounting plate (B) -> Backplate -> Glass (E) -> Retaining ring (G) -> Metal cover (F) -> Spacer tool (H) -> Bulb (I).
Model compatibility
- The installation instructions apply to models 1100-1S, 1100-2V, 1100-3V, 1100-4V, and 1100-5V.
- Bulb is not included with the fixture.
