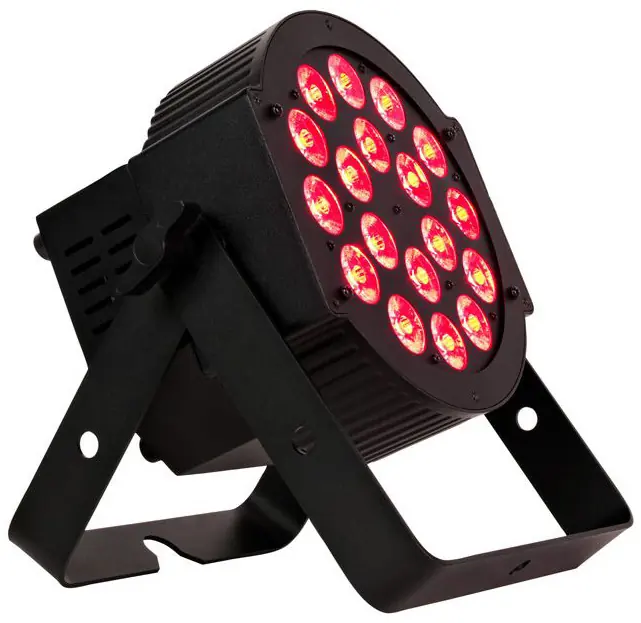

User Manual for ADJ 18P HEX LED Wash Light
Comprehensive user guide for the ADJ 18P HEX LED wash light. Includes installation, DMX setup, operating modes, safety guidelines, and technical specifications.
Quick answers from the manual
Quick answer
- The ADJ 18P HEX is an RGBAW+UV LED wash light. It supports DMX control (6/7/8/12 channels), sound active mode, and manual color mixing. It features automatic voltage sensing and power linking capabilities. p. 1, 5, 21
Key actions
- Mounting the fixture p. 8
- Power linking units p. 15
First start
- Plug into power (100-240V). Use the MODE button to select operating mode (DMX, Static Color, Program, Sound Active). p. 11
Problems and fixes
No DMX response
Check cable wiring (pin 3 hot) and connections.
p. 20
No sound response
Enable Sound Active mode; check sound volume/pitch.
p. 20Maintenance and reset
- Fuse replacement p. 20
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Light Source | 18x 12W Hex (RGBAW+UV) LEDs | RGBAW + UV light source | p. 21 |
| Dimensions | 11.96" x 6.88" x 13" | Physical size | p. 21 |
Where to find it in the PDF
- Installation p. 8
- System Menu p. 10, 11, 12, 13
- Specifications p. 21
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The ADJ 18P HEX is an RGBAW+UV LED wash light designed for professional lighting applications. Before operating, ensure the unit is connected to a compatible power source (100-240V auto-sensing). Always prioritize safety by using a safety cable and ensuring proper ventilation. The fixture supports multiple operating modes, including DMX control, Sound Active, and built-in programs.
Installation
The unit must be mounted using a mounting clamp (not provided) attached to the provided bracket. Ensure the mounting structure can support at least 10 times the weight of the unit. A safety cable capable of holding 12 times the unit's weight must be used. Maintain at least 6 inches (15cm) of clearance from walls for proper ventilation.
DMX Setup
The fixture supports DMX-512 protocol via 3-pin or 5-pin XLR connections. When linking multiple fixtures, use the shortest cable path possible. For long cable runs, use a 110-120 ohm terminator on the last unit to prevent erratic behavior. The fixture features 4 DMX channel modes: 6, 7, 8, and 12 channels.
Operating Modes
- DMX Control: Allows control via a standard DMX 512 controller.
- RGBWA + UV Mode: Manual adjustment of individual color intensities.
- Sound Active Mode: Unit reacts to sound; sensitivity is adjustable.
- Program Mode: 7 built-in programs with adjustable fade and change speeds.
- Static Color Mode: Choose from 64 preset colors.
Maintenance
Fuse Replacement: Disconnect power, remove the power cord, and use a flat-head screwdriver to unscrew the fuse holder to replace the fuse.
Cleaning: Periodically clean internal and external optical lenses to optimize light output. Use normal glass cleaner and a soft cloth. Clean external optics every 20 days, depending on the environment (smoke, fog, dust).
Safety Guidelines
This unit is for indoor use only. It emits high-intensity UV radiation (Risk Group 3). Avoid direct eye and skin exposure at distances shorter than 11 feet (3.3m). Do not operate if the protective lens is damaged or missing.
Manufacturer information
ADJ Products, LLC
Practical help
Common problems
Unit not responding to DMX
Check that DMX cables are connected properly and wired correctly (pin 3 is hot). Ensure the DMX address is set correctly.
Unit does not respond to sound
Ensure Sound Active mode is activated. Note that quiet or high-pitched sounds may not trigger the unit.
Before use
- Verify power source is 100-240V.
- Ensure mounting structure supports 10x unit weight.
- Attach a safety cable rated for 12x unit weight.
- Maintain 6 inches (15cm) of ventilation space.
- Check DMX cables for proper shielding and wiring.
Specs in practice
- Light Source
- 18x 12-Watt Hex (RGBAW + UV) LEDs.
- Power Linking
- Daisy chain up to 4 units at 120V or 8 units at 240V.
Images and diagrams

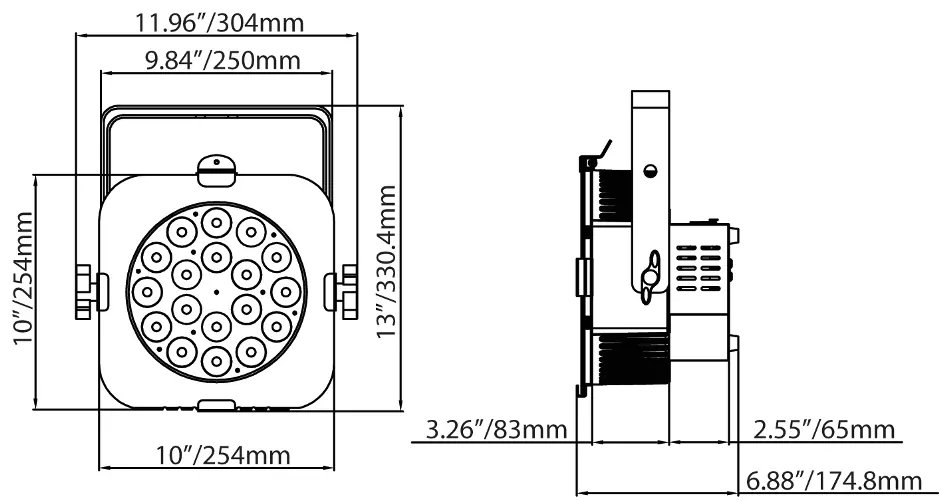

- Dimensional Drawings: Provides physical dimensions (11.96 x 6.88 x 13 inches) for installation planning.
- Dimmer Curves: Illustrates rise and down times for different dimming modes (Standard, Stage, TV, Architectural, Theatre).
Model compatibility
- Compatible with Dotz Par RF remote (sold separately).
- Supports 3-pin and 5-pin DMX connections.
