User Manual for ADJ Fog Fury Jett Pro Vertical Fog Machine

Quick Guide from the Manual

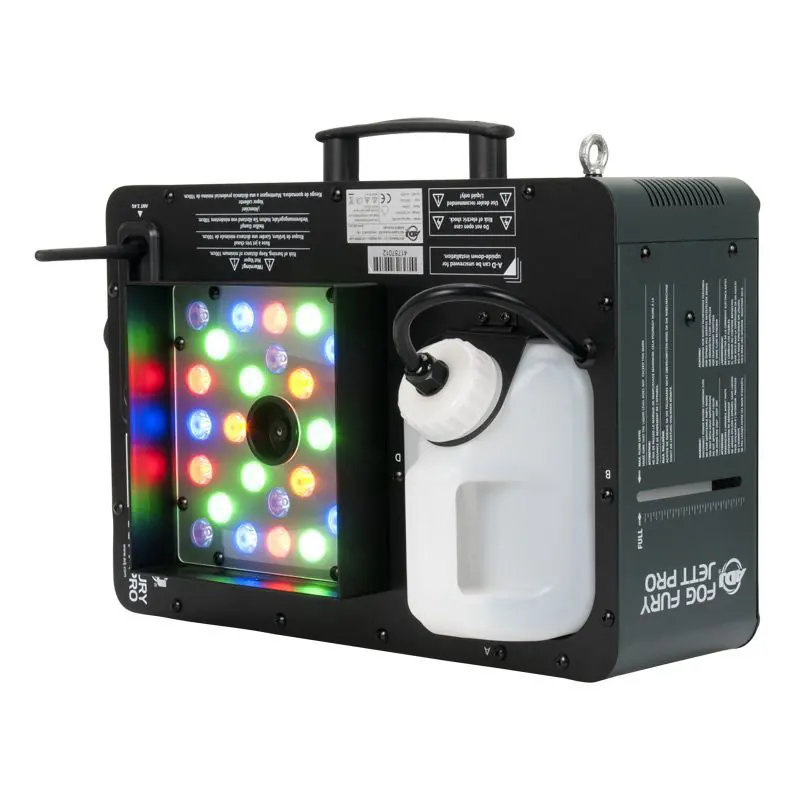

The ADJ Fog Fury Jett Pro is a professional vertical fog machine. Before operation, ensure the unit is placed on a flat, dry surface. Fill the reservoir with ADJ brand water-based fog juice, tighten the cap, and ensure the feeder tube is submerged. The unit requires approximately 9 minutes to reach operating temperature. Use the manual button on the rear or the wireless remote to emit fog.

Safety Precautions

• UV Radiation: This fixture emits high-intensity UV light. Avoid direct eye and skin exposure at distances shorter than 11 feet (3.3m). Wear proper eye and skin protection.
• Hot Vapor: The unit emits hot vapor. Never point the machine towards people or clothing.
• Electrical Safety: Do not expose the unit to rain or moisture. Ensure the power outlet matches the required voltage (120V or 230V). Never connect to a dimmer pack.
• Maintenance: There are no user-serviceable parts inside. Do not remove the cover.

Setup and Operation

To set up the unit, remove all packing material, especially around the nozzle. Connect the remote receiver to the rear socket. Plug the unit into a matching power supply. The red LED on the remote receiver indicates heating; the green LED indicates the unit is ready. If the LED under the reservoir flashes, the fog fluid level is low.

DMX and Wireless Control

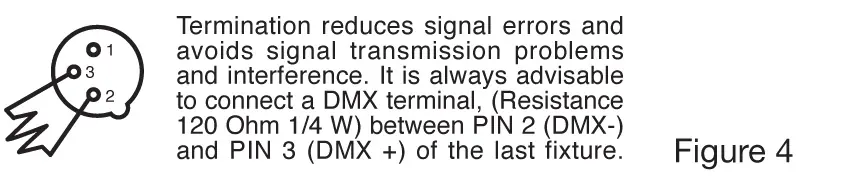

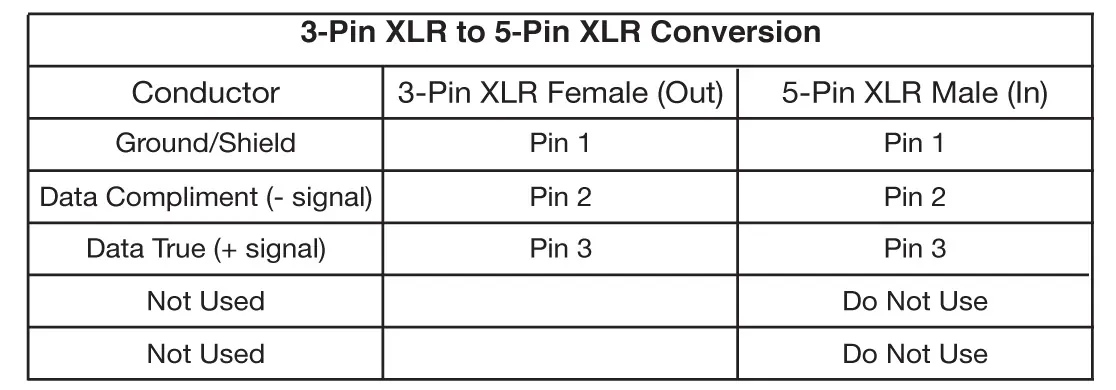

The unit supports DMX-512 protocol with 5 selectable channel modes (1, 2, 3, 7, or 9 channels). Use the MENU button to select the DMX mode and set the address. For wireless operation, use an ADJ WiFly TransCeiver. Set the wireless address using the dip switches on the rear of the unit to match the TransCeiver. The maximum range is 400 feet in an open line of sight.

Truss Mounting

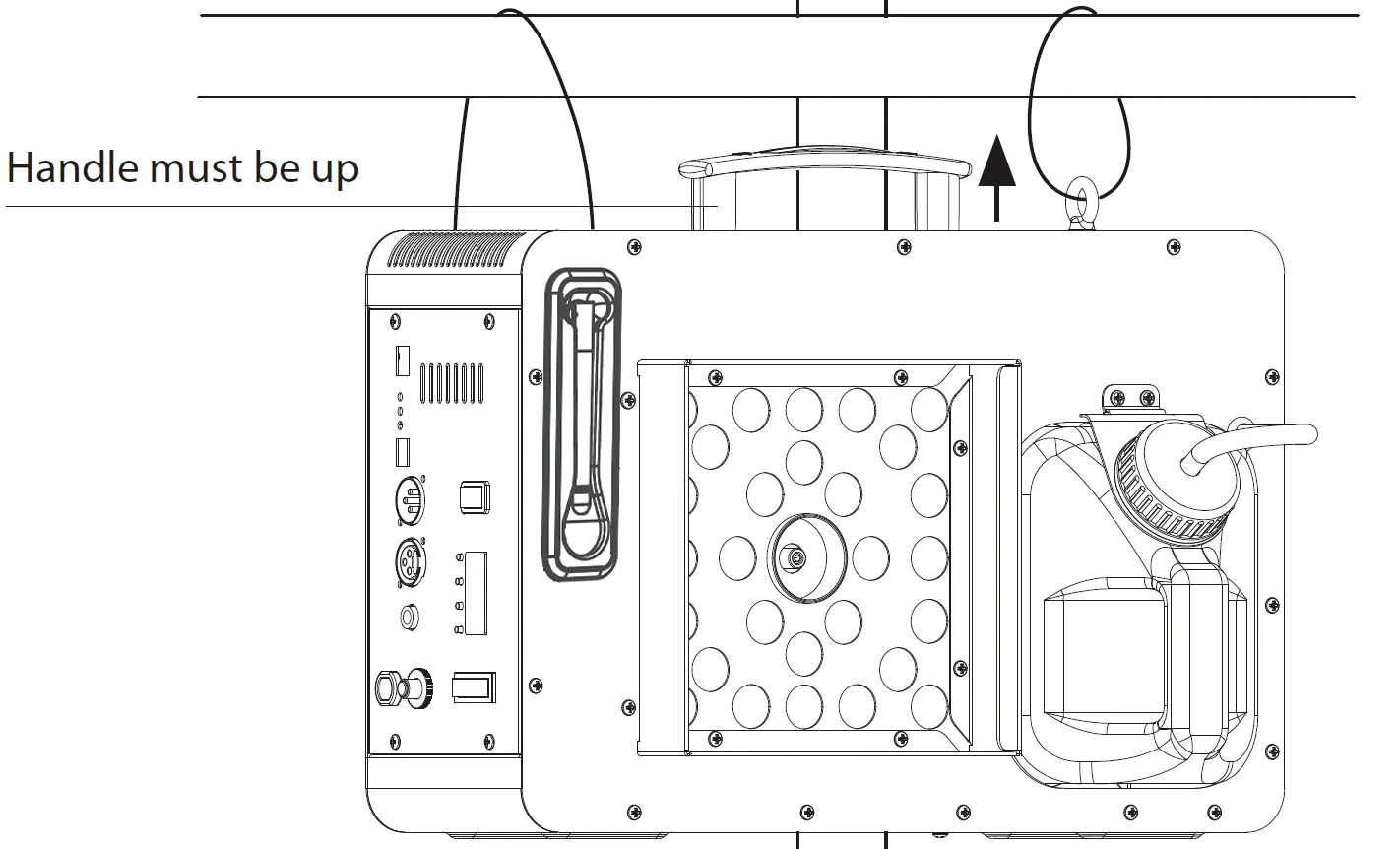

The unit can be mounted right-side up, sideways, or suspended upside down. When suspending upside down, the tank must be removed and re-installed on the bottom of the unit so it remains upright. Always use safety cables when mounting the unit to a truss system. Secure the unit using M10 screws and clamps rated for at least 15kg.

Maintenance and Troubleshooting

Store the device in a cool area and cover it to prevent dust buildup. Run the device at least once every 3-4 months to prevent pump failure. Only use water-based fog juice; never use plain water, vinegar, or other solutions. If you experience low fog output or pump noise, check the fluid level, external fuse, and power connection.

Specifications

• Heater: 1450W
• Power Consumption: 1550W
• Tank Capacity: 2.5 Liters
• Warm Up Time: 9 Minutes
• Duty Cycle: Not to exceed 6 hours continuously
• LEDs: 28 x 3-Watt LEDs (6 red, 7 green, 6 blue, 3 amber, 6 UV)
