User Manual for Anker PowerCore III 19K 60W Power Bank
Quick guide for the Anker PowerCore III 19K 60W power bank. Learn how to charge your devices, use trickle-charging mode for low-power accessories, recharge the power bank, and follow safety guidelines.
Quick answers from the manual
Quick answer
- To charge standard devices, connect them to the PowerCore. For low-power devices like Bluetooth earphones, activate trickle-charging mode by pressing the power button twice or holding for 2 seconds until the LED turns green. p. 1
Key actions
- Activate trickle-charging mode p. 1
- Exit trickle-charging mode p. 1
First start
- Charge the PowerCore fully before first use. p. 1
Problems and fixes
Device feels warm
This is a normal operating condition.
p. 2Maintenance and reset
- Charge and discharge the battery once every three months if not in use. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Capacity | 19200mAh/71.04Wh | Battery capacity | p. 1 |
| Total Output | 60W Max | Maximum power output | p. 1 |
Where to find it in the PDF
- Charging Instructions p. 1
- Safety Instructions p. 2
Table of contents
Quick guide from the manual
The Anker PowerCore III 19K 60W is a portable charger designed to charge mobile devices, tablets, and low-power accessories like Bluetooth earphones and smartwatches. Always ensure the device is used within the specified operating temperature range of 0°C to 40°C.
Charging your devices
To charge your phone or tablet, connect it to the PowerCore using a compatible cable. The device will begin charging automatically.
Trickle-charging mode
This mode is specifically for charging low-power accessories such as Bluetooth earphones or smartwatches.
- To activate: Press the power button twice or press and hold for 2 seconds. The LED indicator will turn green.
- To exit: Press the power button once. The LED indicator will turn blue.

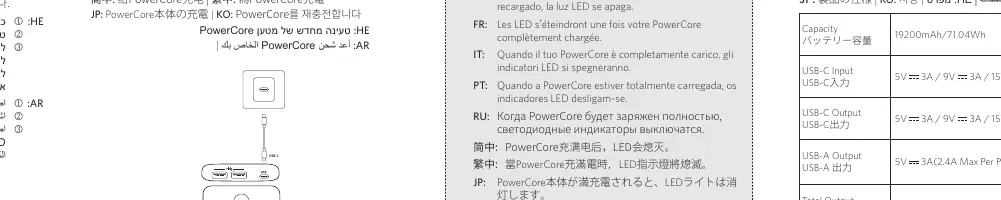

Recharging the PowerCore
Connect the PowerCore to a power source using the USB-C port. When the PowerCore is fully charged, the LED indicators will turn off.
Important safety instructions
- Store the product in a cool and dry place.
- Do not store in hot or humid environments.
- Operating temperature must be between 0°C and 40°C.
- Do not disassemble the product.
- If not used for long periods, charge and discharge the battery once every three months.
- Do not dispose of the product in heat or fire.
- Do not clean with harmful chemicals or detergents.
Technical specifications
- Capacity: 19200mAh / 71.04Wh
- Total Output: 60W Max
- Operating Temperature: 0°C to 40°C
For further support, visit anker.com/support or contact Anker customer service.
Official resources from the manual
Manufacturer information
Anker
Practical help
Common problems
Device not charging
Ensure the cable is securely connected to both the PowerCore and your device.
Power bank feels warm during use
This is a normal operating condition and should not be cause for concern.
Bluetooth earphones or smartwatches not charging
Enable trickle-charging mode by pressing the power button twice or holding for 2 seconds until the LED turns green.
Before use
- Check that the operating environment is between 0°C and 40°C.
- Ensure the PowerCore is sufficiently charged.
- Use a compatible cable for your specific device.
- If storing for a long time, ensure the battery is charged/discharged every 3 months.
Specs in practice
- Total Output
- 60W Max power delivery capability.
- Operating Temperature
- Safe usage range is 0°C to 40°C.
Images and diagrams
- The manual provides a diagram showing how to activate trickle-charging mode using the power button.
- The manual illustrates the LED indicator behavior when the device is fully charged.
Model compatibility
- Compatible with phones, tablets, Bluetooth earphones, and smartwatches.
