User Manual for Anko 2.13M Prelit Christmas Tree 43307920

Quick guide for the Anko 2.13M (7ft) Prelit Christmas Tree (43307920). Includes assembly steps, disassembly, storage tips, and essential safety warnings.

Quick answers from the manual

Quick answer

This manual provides assembly, disassembly, and safety instructions for the Anko 2.13M Prelit Christmas Tree (43307920). p. 1, 2, 3

Key actions

Assemble the tree by inserting sections C, B, and A into the stand and shaping the branches. p. 2
Disassemble by reversing the assembly steps and storing in a cool, dry place. p. 2

First start

Place stand on level surface, insert bottom section (C), middle section (B), and top (A), then shape branches and connect power. p. 2

Problems and fixes

Difficulty separating tree poles

Apply lubricant at the joint and rotate the upper pole in both directions.

p. 2

Maintenance and reset

Do not detach factory pre-plugged light sets. Store in a cool, dry place below 40C. p. 2

Technical specifications

Parameter	Value	Meaning	Pages
Height	2.13M (7ft)	Total tree height	p. 1
System Wattage	3.5W	Maximum power consumption	p. 3
Adaptor Model	JT-DC31V3.6W-H5	Required power adaptor	p. 3

Where to find it in the PDF

Title and Contents p. 1
Assembly and Disassembly p. 2
Safety and Installation p. 3

Table of contents

Quick Guide

This product is a 2.13M (7ft) prelit Christmas tree intended for indoor use only. Before assembly, ensure you have all components: Tree Top, Upper Body, Lower Body, and Metal Stand. The system wattage is 3.5W. Do not connect the tree to the power supply while it is still in the packaging.

Assembly Instructions

Place the tree stand on a level surface.
Insert the bottom section (C) into the stand and secure it tightly with the provided screws.
Insert the trunk end of the middle section (B) into the pole of the bottom section.
Insert the tree top (A) into the trunk and ensure the tab fits securely into the slot.
Open all branches and shape them, starting with tips farthest from the pole. Work from the inside out, moving to the right, left, and center.
Wrap the end tip around the wire near the pole.
Step back to check for gaps and adjust branch tips for a natural look.
Connect the light set to the provided connector and adaptor, then plug the adaptor into a power outlet.
Connect the male and female plugs by matching the color-coding labels.

Disassembly and Storage

Save the carton for storage.
Unplug from the wall outlet and remove all ornaments.
Disassemble the tree by reversing the assembly steps. Do not detach factory pre-plugged light sets.
If tree poles are difficult to separate, apply a small amount of lubricant at the joint and rotate the upper pole in both directions before lifting.
Press branches against the stem before removing sections.
Store the carton in a cool, dry place. Do not store in areas where the temperature exceeds 40C (90F) or in damp areas.

Safety and Installation

Indoor Use Only: The adaptor must be installed indoors, away from weather.
Placement: Do not place near heaters or direct heat sources. Ensure the tree is positioned on surfaces with normal flammability (e.g., wood, masonry).
Cables: Position cables so they do not pose a hazard to children or pets. Do not cover the tree with items like curtains or bedding.
Electrical: Do not overload power sockets. Do not pierce the cable when sourcing in place. The light source is non-replaceable; if the light set or cable is damaged, the entire luminaire must be discarded.
Interconnection: Do not interconnect parts of this lighting chain with other manufacturers' lighting chains.

Manufacturer information

Anko

Brand profile

Manufacturer website https://www.ankoglobal.com/ Support https://www.kmart.com.au/customer-service/

Practical help

Common problems

Tree poles are stuck and difficult to separate

Apply a small amount of lubricant at the joint and rotate the upper pole in both directions before lifting.

Lights not working

Ensure the adaptor is plugged in and the male/female plugs are connected by matching the color-coding labels.

Before use

Ensure the tree stand is placed on a level surface.
Verify all parts are present (Tree Top, Upper Body, Lower Body, Metal Stand).
Check that the adaptor is suitable for indoor use.
Ensure the power cable is long enough to reach an indoor mains power socket.

Specs in practice

Adaptor Model: JT-DC31V3.6W-H5

Images and diagrams

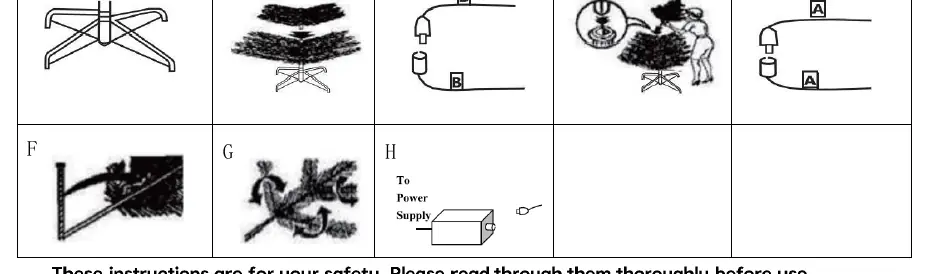

Diagrams A-H illustrate the assembly process, from setting up the stand to connecting the power supply.
Diagrams show the sequence of inserting sections C, B, and A into the stand.

Model compatibility

Indoor use only.
Do not interconnect with other manufacturers' lighting chains.
Not designed for permanent or long-term use.
