Installation and Technical Guide for AQUA ROYALE-GD Wall Mounted Lavatory Faucet
A comprehensive technical guide for the AQUA ROYALE-GD wall-mounted lavatory faucet. Includes detailed dimensions, material specifications, flow rate information, and warranty details.
Quick answers from the manual
Quick answer
- The AQUA ROYALE-GD is a wall-mounted lavatory faucet with a 1.2 GPM flow rate, requiring 1/2-inch supply connections. It features a solid brass construction and a ceramic cartridge. p. 1
Key actions
- Verify installation dimensions using the technical drawing before mounting. p. 2
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Flow rate | 1.2 GPM | Water output capacity | p. 1 |
| Connection | 1/2 inch | Supply hose size | p. 1 |
Where to find it in the PDF
- Product Features and Specifications p. 1
- Technical Drawing p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The AQUA ROYALE-GD is a wall-mounted lavatory faucet featuring a 2-handle design and a brushed brass finish. This document serves as a technical specification sheet and installation reference. Key requirements include a 1/2-inch water supply connection and sufficient wall space for the 2-handle configuration. The faucet is designed with a pressure-regulating system and a ceramic cartridge.
Product overview
The faucet is constructed from solid brass and is designed for wall-mounted installation. It is part of the ROYALE series, which includes variants such as ROYALE-BK (Matte Black) and ROYALE-W (Matte White).
Technical specifications
- Flow rate: 1.2 GPM
- Connection: 1/2-inch hoses
- Cartridge: Ceramic cartridge
- Features: Pressure regulating system, corrosion-resistant
Dimensions and installation

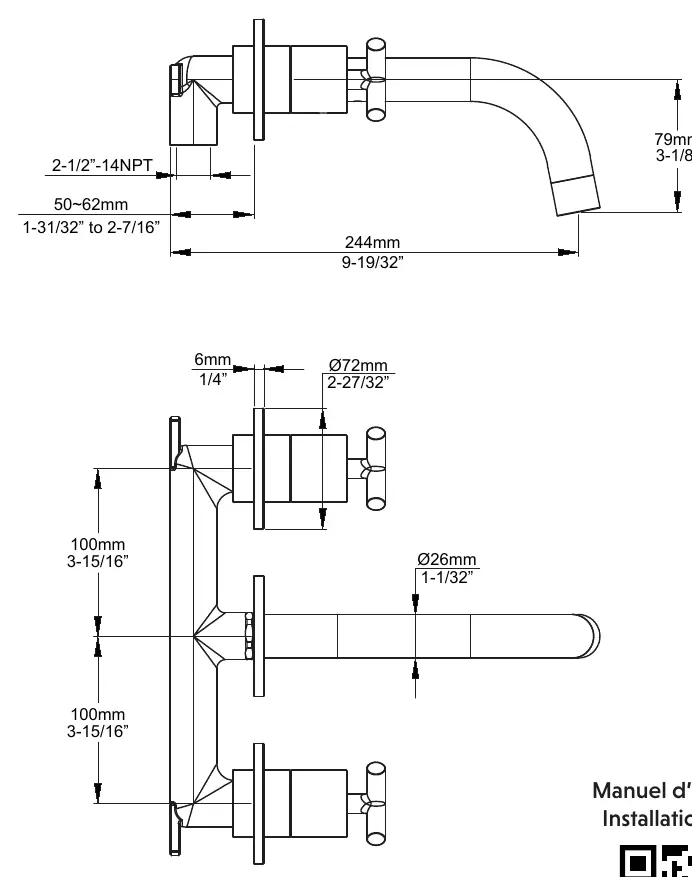

The technical drawing provides the necessary measurements for installation. Please note that dimensions are provided in both millimeters and inches. The spout length is 244mm (9-19/32 inches). Ensure that the wall structure is prepared for a wall-mounted installation, as the faucet requires specific plumbing rough-ins behind the wall surface.
Warranty and certifications
The product meets the following requirements: CSA (B125.1-18) and CUPC (ASME A112.18.1). The manufacturer provides a lifetime warranty on the ceramic cartridge and a 15-year warranty on the finish.
Practical help
Common problems
Incompatible water supply lines
Ensure your plumbing setup supports 1/2-inch hose connections.
Incorrect wall mounting depth
Refer to the technical drawing on page 2 to ensure the rough-in depth matches the required installation dimensions.
Before use
- Verify that the wall structure is suitable for a wall-mounted faucet.
- Ensure 1/2-inch water supply lines are available.
- Check that the space allows for the 2-handle configuration.
- Confirm all parts are present before beginning installation.
Images and diagrams
- The technical drawing illustrates the spout projection of 244mm (9-19/32 inches).
- The diagram shows the spacing and depth requirements for the wall-mounted handles and spout.
- Dimensions are provided in both metric (mm) and imperial (inches) units.
Model compatibility
- Compatible with standard 1/2-inch plumbing connections.
- Designed for wall-mounted installation only.
