Installation Manual for AXOR Carlton 17 Series Bidet Mixer
This installation guide provides step-by-step instructions for the AXOR Carlton 17 Series bidet mixer. Includes safety notes, technical specifications, installation procedures, and maintenance tips.
Quick answers from the manual
Quick answer
- The AXOR Carlton 17 Series bidet mixer should be installed by following local plumbing codes, ensuring pressure balance, and flushing the lines. The EcoSmart flow limiter can be removed if higher flow is required. p. 3, 4, 5
Key actions
- Install, flush, and test pipes and fixture according to applicable standards. p. 3, 5
- Remove EcoSmart flow limiter if water flow is insufficient. p. 3, 5
First start
- Do not use the first half-liter of water drawn in the morning or after long periods of non-use as drinking water. p. 3, 5
Problems and fixes
Problems with instantaneous water heater or low flow
Remove the EcoSmart flow limiter behind the aerator.
p. 3, 5Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Max Operating Pressure | 1 MPa | Maximum pressure limit. | p. 3, 5 |
| Max Hot Water Temp | 70°C | Maximum hot water temperature. | p. 3, 5 |
Where to find it in the PDF

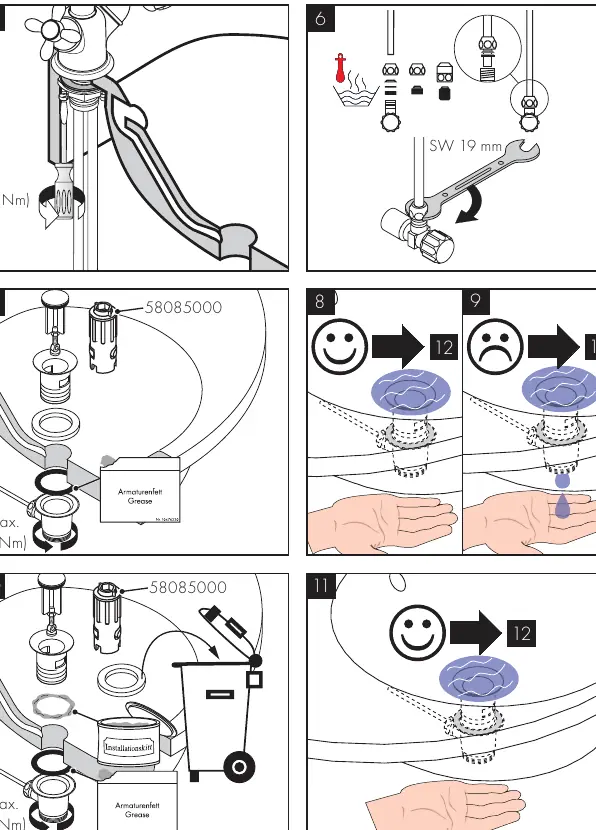

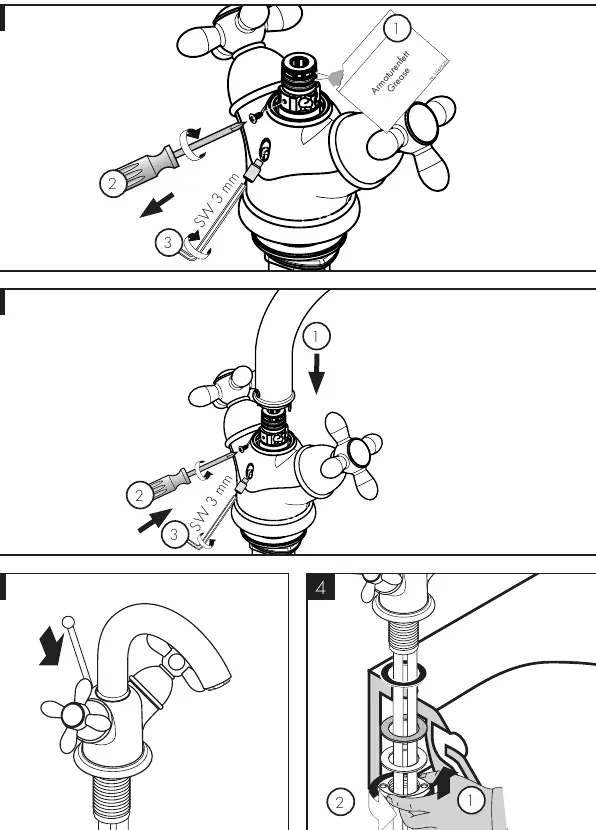

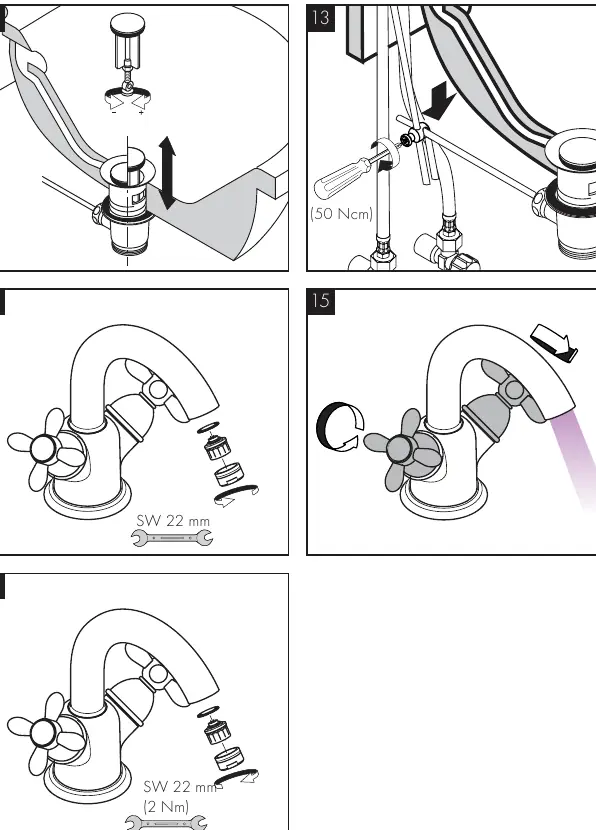

- Installation Steps p. 32, 33, 34, 35

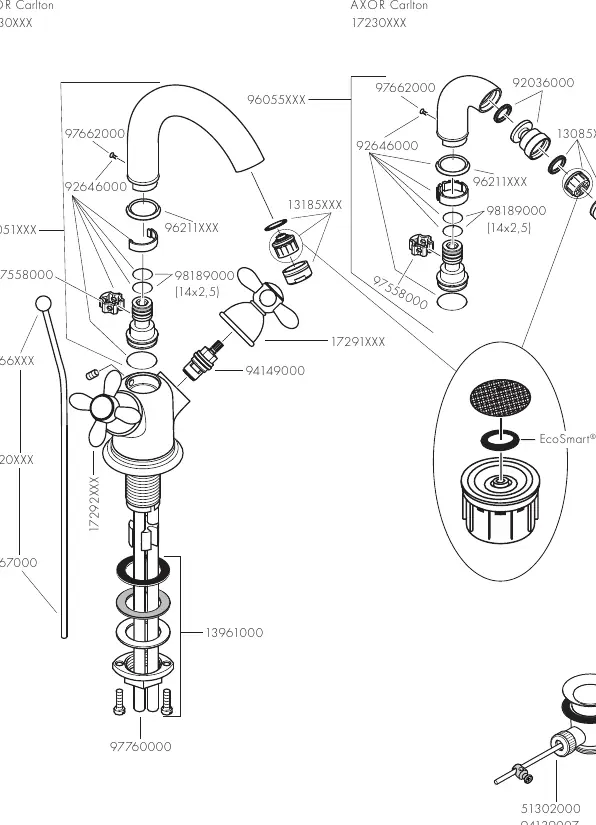

- Spare Parts p. 36
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation and maintenance instructions for the AXOR Carlton 17 Series bidet mixer. Before installation, inspect the product for transport damage. Ensure that hot and cold water supplies are balanced in pressure. The product is designed exclusively for drinking water.
Safety Notes
- Wear gloves during installation to prevent crushing and cutting injuries.
- The product must only be used for bathing, hygienic, and body cleaning purposes.
- Large pressure differences between hot and cold water connections must be balanced.
Installation Instructions
The pipes and the fixture must be installed, flushed, and tested according to applicable standards. Observe local plumbing codes. The drain valve must only be used as intended; do not attach other objects, such as a semi-pedestal, to it.
If you experience problems with an instantaneous water heater or desire a higher water flow, the EcoSmart (flow limiter) located behind the aerator can be removed.
Technical Data
- Operating pressure: max. 1 MPa
- Recommended operating pressure: 0.1 - 0.5 MPa
- Test pressure: 1.6 MPa
- Hot water temperature: max. 70°C
- Recommended hot water temperature: 65°C
- Thermal disinfection: max. 70°C / 4 min

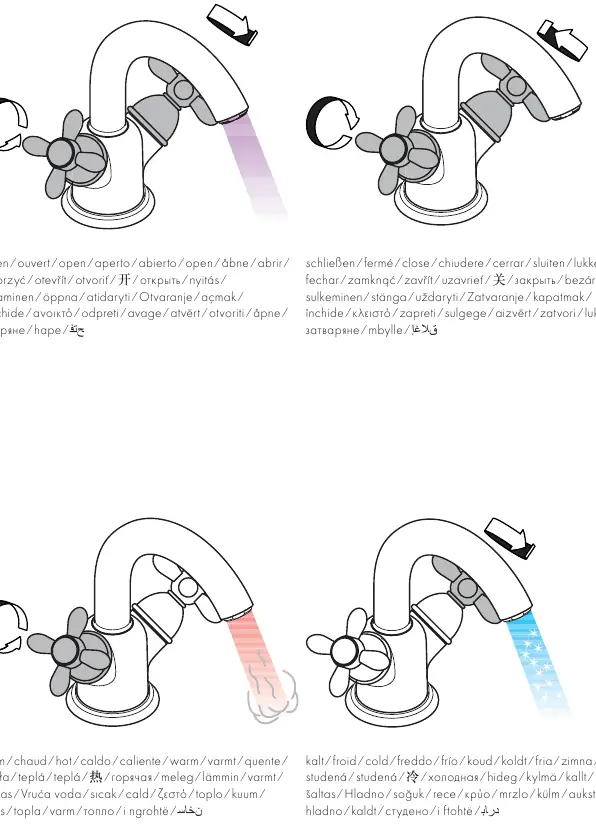

Operation
Hansgrohe recommends not using the first half-liter of water drawn in the morning or after a prolonged period of non-use as drinking water.
Cleaning and Maintenance
Clean the faucet regularly to maintain its finish. Do not use silicone containing acetic acid. Refer to the spare parts list for replacement components.
Manufacturer information
AXOR
Practical help
Common problems
Insufficient water flow
Remove the EcoSmart flow limiter located behind the aerator.
Pressure differences
Balance the pressure between hot and cold water supplies.
Before use
- Inspect the product for transport damage before installation.
- Ensure pipes and fixture are installed, flushed, and tested according to standards.
- Check that hot and cold water pressures are balanced.
- Ensure the drain valve is used only for its intended purpose.
Specs in practice
- Operating pressure
- The maximum pressure the faucet can withstand (1 MPa).
- Recommended operating pressure
- The optimal pressure range for best performance (0.1 - 0.5 MPa).
- Hot water temperature
- The maximum safe temperature for the hot water supply (70°C).
Images and diagrams
- Flow diagrams show water output with and without the EcoSmart flow limiter.
- Dimensional drawings provide necessary measurements for installation.
Model compatibility
- Designed exclusively for drinking water.
- Compatible with instantaneous water heaters.
