Hansgrohe AXOR Starck 2-Handle Basin Mixer Installation and User Manual
Quick guide for the Hansgrohe AXOR Starck 2-Handle Basin Mixer. Includes installation steps, technical specifications, EcoSmart flow limiter adjustment, and maintenance instructions.
Quick answers from the manual
Quick answer
- This manual provides installation and usage instructions for the Hansgrohe AXOR Starck 2-Handle Basin Mixer. It includes technical specifications, maintenance tips, and guidance on using the EcoSmart flow limiter. p. 4
Key actions
- Install the mixer p. 31
- Remove EcoSmart flow limiter p. 4
First start
- Flush pipes and test for leaks p. 4
Problems and fixes
Low water flow
Remove the EcoSmart flow limiter behind the aerator.
p. 4Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Operating pressure | max. 1 MPa | Maximum allowed pressure | p. 4 |
| Recommended operating pressure | 0.1 - 0.5 MPa | Optimal pressure range | p. 4 |
| Hot water temperature | max. 80°C | Maximum hot water temperature | p. 4 |
Where to find it in the PDF
- Installation steps p. 31
- Spare parts p. 36
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides essential installation and usage instructions for the Hansgrohe AXOR Starck 2-Handle Basin Mixer. It covers safety precautions, technical specifications, and maintenance procedures.
Safety information
- Wear gloves during installation to prevent crushing and cutting injuries.
- The product is intended for bathing, hygienic, and body cleansing purposes only.
- Balance significant pressure differences between hot and cold water supplies.
Installation
The fitting must be installed, flushed, and tested according to valid norms.
- Flush the pipes thoroughly before installation.
- Install the mixer according to the provided diagrams.
- Test the connection for leaks.
EcoSmart flow limiter
The mixer is equipped with an EcoSmart flow limiter. If you experience issues with an instantaneous water heater or require a higher water flow, the EcoSmart limiter located behind the aerator can be removed.
Technical data
- Operating pressure: max. 1 MPa
- Recommended operating pressure: 0.1 – 0.5 MPa
- Test pressure: 1.6 MPa
- Hot water temperature: max. 80°C
- Recommended hot water temperature: 65°C
Hansgrohe mixers can be used with hydraulically and thermally controlled continuous flow heaters if the flow pressure is at least 0.15 MPa.
Maintenance
For cleaning, please refer to the enclosed brochure. Spare parts are available; refer to the exploded view diagram for part identification.
Manufacturer information
Hansgrohe SE
Practical help
Common problems
Low water flow
Remove the EcoSmart flow limiter located behind the aerator.
Instantaneous water heater issues
Remove the EcoSmart flow limiter to increase water flow.
Before use
- Wear gloves during installation
- Balance hot and cold water pressures
- Flush pipes before installation
- Check for leaks after installation
Specs in practice
- Operating pressure
- Maximum allowed pressure is 1 MPa
- Recommended operating pressure
- Optimal performance range is 0.1 - 0.5 MPa
- Hot water temperature
- Maximum temperature is 80°C
Images and diagrams
- Flow diagram shows performance with and without EcoSmart

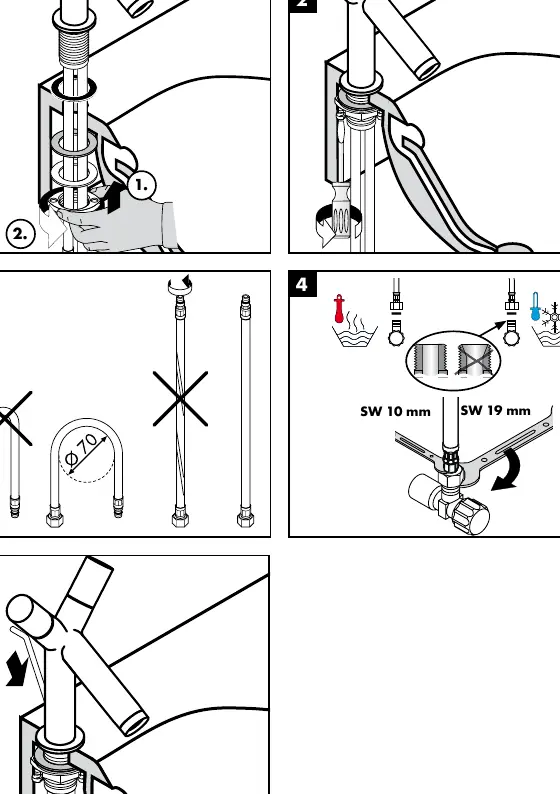

- Installation steps 1-5 show the mounting process

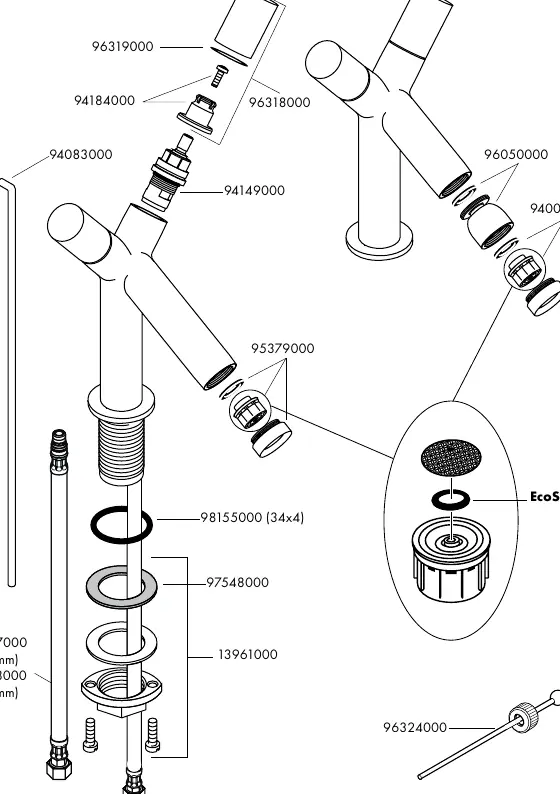

- Exploded view shows spare parts identification
Model compatibility
- Compatible with hydraulically and thermally controlled continuous flow heaters if flow pressure is at least 0.15 MPa
