Installation Guide for Artika 17OUT-GL-PMB Wall-Mounted LED Light Fixture
Step-by-step installation instructions for the Artika 17OUT-GL-PMB wall-mounted LED light. Includes wiring, mounting, and sealing guidelines.
Quick answers from the manual
Quick answer
- This manual provides instructions for installing the Artika 17OUT-GL-PMB wall-mounted LED light fixture, including mounting, wiring, and sealing procedures. p. 1, 3, 5, 6
Key actions
- Turn off the main electrical supply at the circuit breaker before installation. p. 4
- Apply sealant to the sides and top of the fixture, but leave the bottom open. p. 8
Problems and fixes
Moisture drainage issues
Do not seal the bottom side of the backplate.
p. 8Where to find it in the PDF
- Included Hardware p. 2
- Installation Steps p. 3, 5, 6, 7
- Warranty p. 11
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides instructions for the installation of the Artika 17OUT-GL-PMB wall-mounted LED light fixture. The installation requires basic tools and electrical knowledge. Important: Always turn off the main electrical supply at the circuit breaker before starting any installation or maintenance work. If using a dimmer, ensure it is LED compatible.

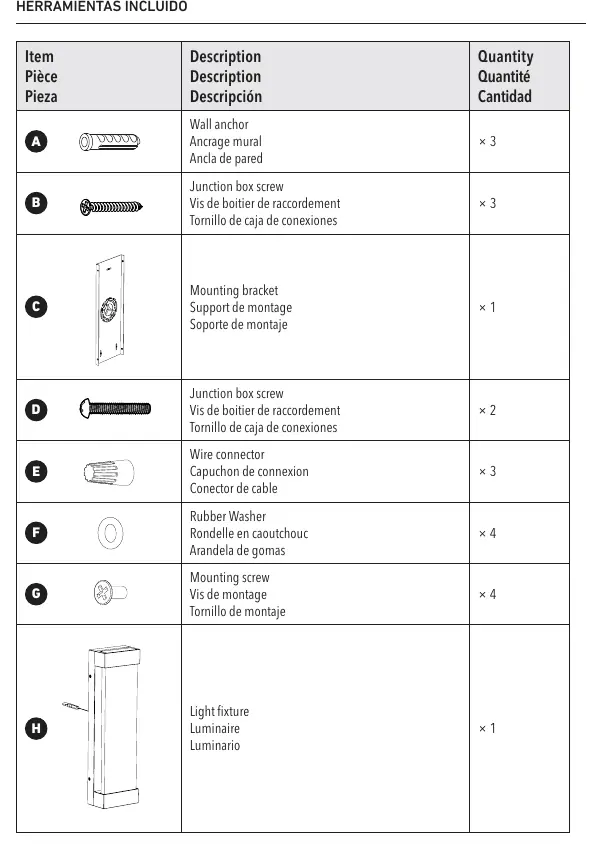

Included hardware
- Wall anchors (3)
- Junction box screws (3 + 2)
- Mounting bracket (1)
- Wire connectors (3)
- Rubber washers (4)
- Mounting screws (4)
- Light fixture (1)
Installation steps
- Mounting bracket installation: Secure the mounting bracket to the junction box using the provided screws and wall anchors. Ensure the bracket is level.

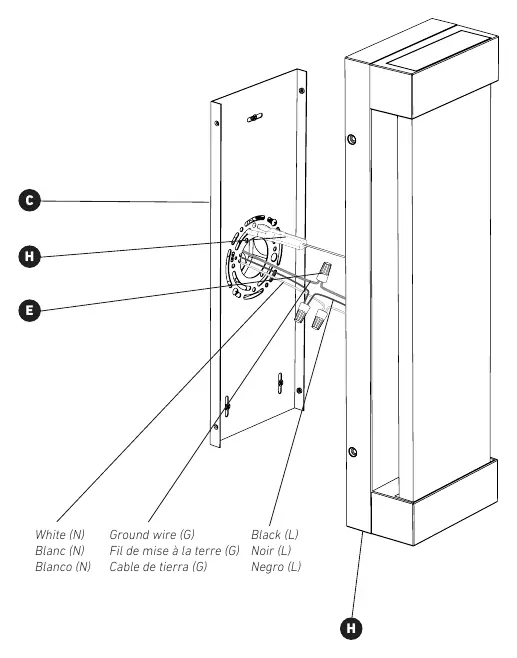

- Wiring: Connect the fixture wires to the house supply wires using the provided wire connectors. Match the colors: White (Neutral) to White, Black (Live) to Black, and Ground (G) to Ground.
- Canopy installation: Attach the light fixture to the mounting bracket using the mounting screws and rubber washers.
- Final sealing: Apply sealant to the sides and top of the light fixture where it meets the wall. Do not seal the bottom side of the backplate to allow moisture to drain.
Safety and maintenance
This product is for indoor or outdoor residential use only. The manufacturer is not responsible for malfunctions caused by improper installation. Failure to follow these instructions voids the warranty. If you are not comfortable working with electrical wiring, it is recommended to have this product installed by a certified electrician.
Warranty
Artika For Living Inc. offers a five-year limited warranty on manufacturing defects for residential use. The warranty is non-transferable and requires the original sales receipt. It does not cover improper installation, misuse, or normal wear and tear.
Manufacturer information
Artika
Practical help
Common problems
Moisture accumulation inside the fixture
Ensure the bottom side of the backplate is not sealed. The bottom must remain open to allow moisture to drain.
Light flickering or not working with a dimmer
Verify that the dimmer switch being used is compatible with LED lights.
Before use
- Turn off the main electrical supply at the circuit breaker.
- Ensure you have a pencil, screwdriver, sealant, and a level.
- Verify all included hardware is present.
- Confirm the installation location is suitable for an indoor/outdoor light fixture.
Specs in practice
- LED compatible
- If using a dimmer switch, it must be specifically rated for LED lighting to prevent malfunction.
Images and diagrams
- The mounting bracket is secured to the junction box using screws.
- Wiring connections are made inside the junction box using wire connectors.
- Sealant should be applied to the top and sides of the fixture, but never the bottom.
Model compatibility
- For residential use only.
- Suitable for indoor or outdoor installation.
