Instruction Manual for Artika Kalio18 LED Wall Lamp 18SCO-KA-BL1710V-JA
Get started with your Artika Kalio18 LED Wall Lamp. This guide covers installation, wiring, safety precautions, and warranty information for model 18SCO-KA-BL1710V-JA.
Quick answers from the manual
Quick answer
- The Artika Kalio18 LED Wall Lamp is designed for indoor residential use. Installation involves mounting the bracket to the junction box, connecting the ground, neutral, and live wires, and securing the fixture with canopy screws. p. 3, 5, 6, 7
Key actions
- Turn off power at the breaker panel p. 4
- Connect wires using provided connectors p. 6
- Secure fixture to mounting bracket p. 7
First start
- Ensure the main electrical supply is switched off before installation. p. 4
Problems and fixes
Radio/TV interference
Reorient antenna or increase distance between equipment and receiver.
p. 9Where to find it in the PDF
- Installation Steps p. 3, 5, 6, 7
- Safety Warnings p. 4
- Warranty p. 11
Table of contents
Manual images
Click an image to enlargeQuick Guide from the Manual
The Artika Kalio18 LED Wall Lamp is designed for indoor residential use. Before beginning installation, ensure the main electrical supply is turned off at the circuit breaker. The installation requires basic tools, including a screwdriver, and should be performed by a certified electrician if required by local building codes.

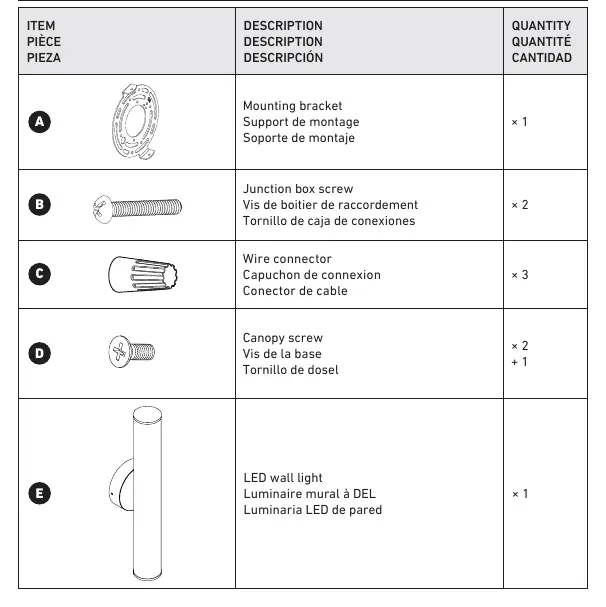

Included Hardware
- A: Mounting bracket (x1)
- B: Junction box screw (x2)
- C: Wire connector (x3)
- D: Canopy screw (x2 + 1)
- E: LED wall light (x1)

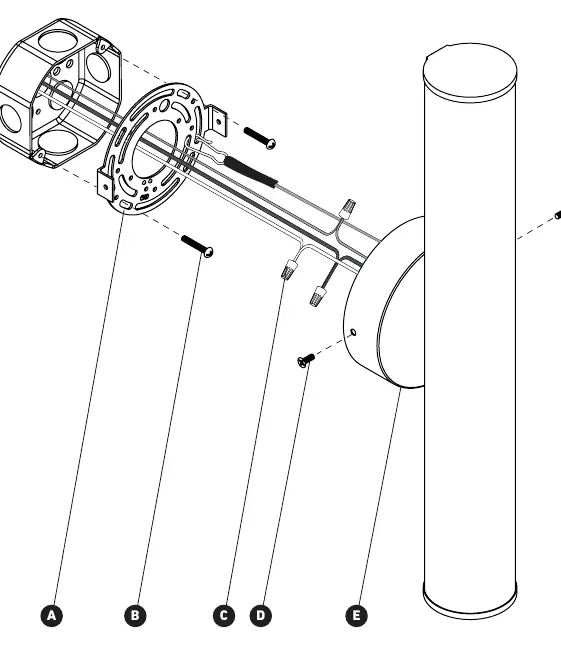

Installation Steps
1. Mounting Bracket Installation
Secure the mounting bracket (A) to the junction box using the junction box screws (B). Ensure the bracket is level and firmly attached.
2. Connecting the Wires
Connect the fixture wires to the house supply wires using the provided wire connectors (C):
- Ground wire (GND): Connect to the house ground wire.
- White (N): Connect to the house neutral wire.
- Black (L): Connect to the house live wire.
Ensure all connections are secure and properly insulated.
3. Fixture Installation
Align the LED wall light (E) with the mounting bracket and secure it using the canopy screws (D).
Safety Warnings
Warning: Risk of electrical shock. Always turn off the main electrical supply from the fuse box or circuit breaker before installing the unit or performing any maintenance. Failure to follow installation instructions may void the warranty.
Warranty
Artika For Living Inc. offers a five-year limited warranty on manufacturing defects for residential use. The warranty is non-transferable and requires the original sales receipt. It does not cover improper installation, misuse, or normal wear and tear.
Contact Information
For customer service, contact Artika For Living Inc. at 1-866-661-9606 or via email at [email protected]. Service is available Monday to Friday, 9 am - 5 pm EST.
Manufacturer information
Artika
Practical help
Common problems
Light does not turn on
Verify that the circuit breaker is turned on and that all wire connections are secure.
Radio or TV interference
Reorient or relocate the receiving antenna or increase the separation between the equipment and the receiver.
Before use
- Turn off the main electrical supply at the fuse box or circuit breaker.
- Ensure you have a screwdriver available.
- Verify that all hardware parts (A, B, C, D, E) are present.
- Confirm that the installation location is suitable for indoor use.
- Check if local regulations require a certified electrician for installation.
Images and diagrams

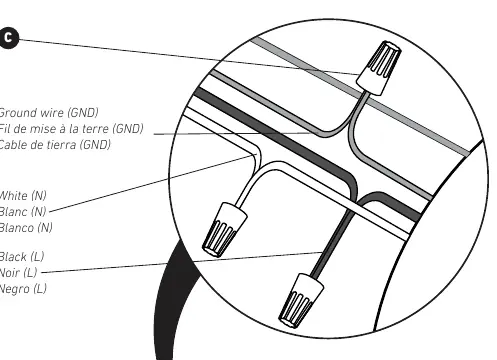

- The wiring diagram illustrates the connection of the Ground (GND), Neutral (White), and Live (Black) wires using the provided wire connectors.
Model compatibility
- For indoor use only.
- For residential use only.
