Artika Skylight Pro 15 LED Ceiling Light 15FLPR-SP3-MB
Quick installation guide for the Artika Skylight Pro 15 LED Ceiling Light (15FLPR-SP3-MB). Includes hardware list, step-by-step mounting instructions, wiring diagrams, and safety warnings.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation instructions for the Artika Skylight Pro 15 LED Ceiling Light. Before beginning, ensure the main electrical supply is turned off at the fuse box or circuit breaker. The manufacturer recommends installation by a certified electrician. This product is for indoor and residential use only.

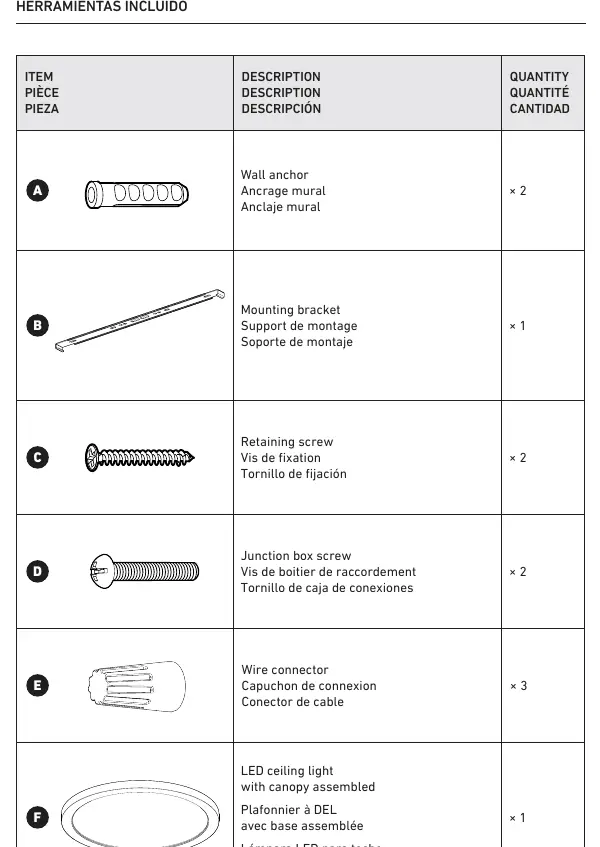

Included hardware
- Wall anchors (x2)
- Mounting bracket (x1)
- Retaining screws (x2)
- Junction box screws (x2)
- Wire connectors (x3)
- LED ceiling light with canopy (x1)
Installation steps

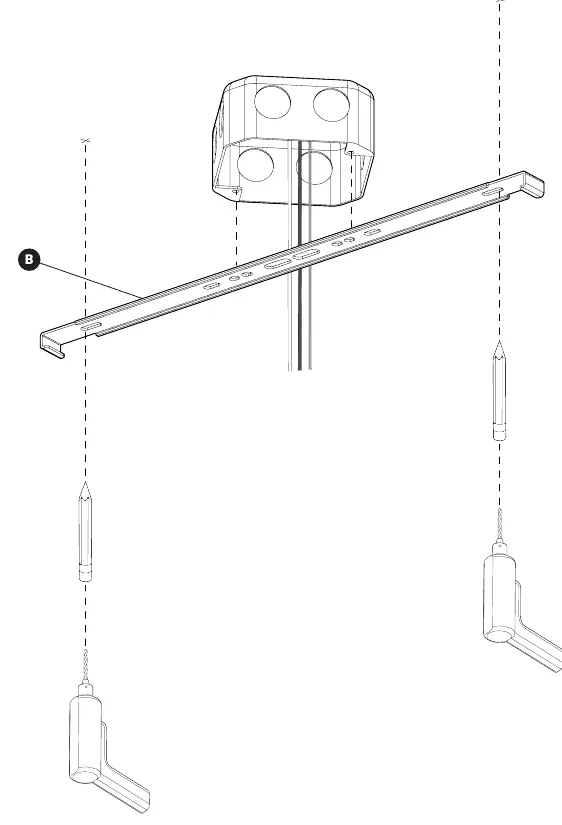

1. Mounting bracket installation
Use the mounting bracket as a template to mark the ceiling. Drill holes using a 1/4-inch (6.5 mm) drill bit. Insert wall anchors into the holes. Secure the mounting bracket to the junction box and ceiling using the provided screws.
2. Connecting the wires
Connect the wires using the provided wire connectors:
- Black (L) to Black (L)
- White (N) to White (N)
- Ground (G) to Ground (G)

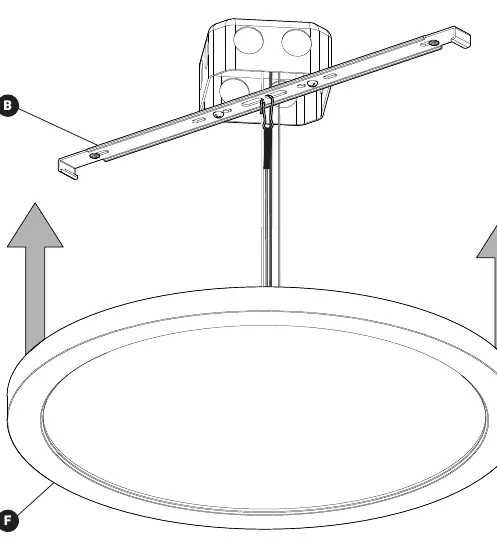

3. Final installation
Align the LED ceiling light with the mounting bracket. Push the light up towards the ceiling and rotate it to lock it securely into place.
Safety and warnings
- Electrical Shock Risk: Always turn off the power at the breaker panel before installation or maintenance.
- Dimmer Compatibility: If using a dimmer, it must be LED compatible.
- Professional Installation: We recommend installation by a certified electrician, as required by local building codes in some regions.
- Environment: Do not use this product outdoors.
Warranty
Artika For Living Inc. offers a five-year limited warranty on manufacturing defects for residential use. The warranty is non-transferable and requires the original sales receipt. It does not cover improper installation, misuse, or normal wear and tear.
Manufacturer information
Artika
Practical help
Common problems
Light not working or flickering
Ensure the dimmer switch is LED compatible. Check all wire connections to ensure they are secure.
Warranty voided
Warranty is void if the product is installed incorrectly, subjected to abnormal use, or if instructions are not followed.
Before use
- Turn off the main electrical supply at the fuse box or circuit breaker.
- Verify that your dimmer switch is LED compatible.
- Ensure you have a screwdriver, drill, and a 1/4-inch (6.5 mm) drill bit.
- Read all instructions carefully before starting installation.
- Confirm the installation location is indoors and residential.
Specs in practice
- Dimmer compatibility
- If a dimmer is used, it must be specifically rated for LED lights to prevent malfunction.
- Ground wire (G)
- Must be connected to the house ground wire for safety.
Images and diagrams

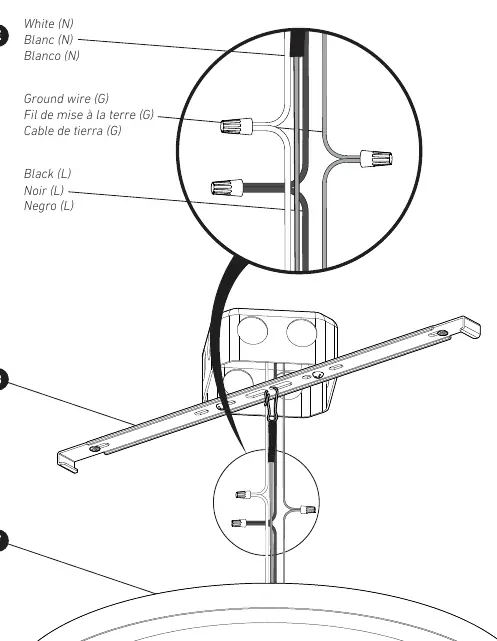

- The wiring diagram illustrates connecting the Black (L), White (N), and Ground (G) wires from the ceiling to the corresponding wires on the light fixture using wire connectors.
Model compatibility
- Indoor use only.
- Residential use only.
- Requires LED compatible dimmer if used.
