User Manual for Artika 15FM-CF5C-HD2BL LED Flush Mount Light
Quick guide for the Artika 15FM-CF5C-HD2BL LED Flush Mount Light. Includes installation steps, wiring instructions, safety warnings, and color temperature settings.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides installation and operation instructions for the Artika 15FM-CF5C-HD2BL LED Flush Mount Light. Before beginning, ensure the main power is turned off at the circuit breaker. The installation requires basic tools including a screwdriver, drill, and a 1/4-in. drill bit. This fixture features selectable white technology, allowing you to adjust the color temperature between 2700K and 5000K.
Safety warnings
- Electrical Shock Risk: Always turn off the main electrical supply at the fuse box or circuit breaker before installation or maintenance.
- Indoor Use Only: This product is designed for residential indoor use only.
- Dimmer Compatibility: If using a dimmer switch, it must be LED compatible.
- Professional Installation: It is recommended that this product be installed by a certified electrician, as required by local building codes in some regions.

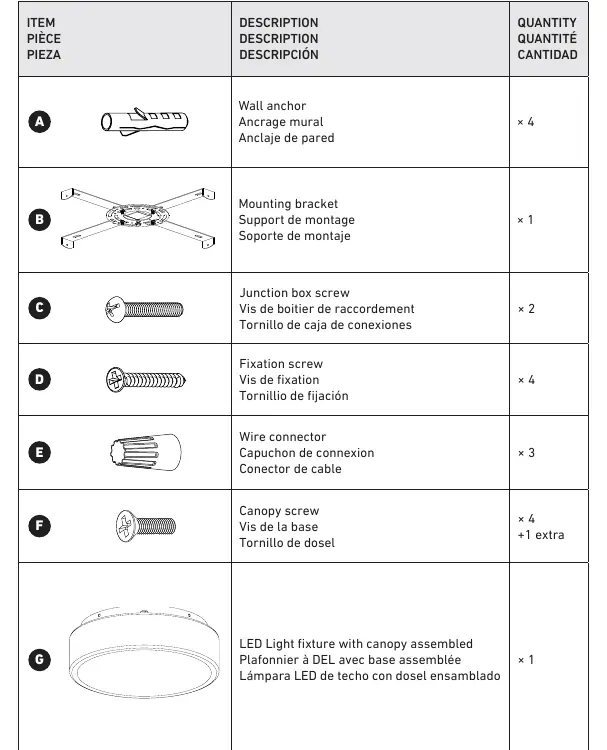

Included hardware
- Wall anchors (x4)
- Mounting bracket (x1)
- Junction box screws (x2)
- Fixation screws (x4)
- Wire connectors (x3)
- Canopy screws (x4 + 1 extra)
- LED Light fixture with canopy assembled (x1)
Installation
- Mounting Bracket: Use the mounting bracket as a template to mark the ceiling with a pencil. Drill holes at the marked locations and insert the wall anchors. Secure the mounting bracket to the junction box using the junction box screws.
- Wiring: Connect the fixture wires to the house supply wires using the provided wire connectors. Connect the Ground wire (G), White (N) to White (N), and Black (L) to Black (L).
- Final Installation: Align the fixture canopy with the mounting bracket and secure it using the canopy screws.
Selectable white technology
The fixture includes a switch to adjust the color temperature. You can select between 2700K, 3000K, 3500K, 4000K, or 5000K. Ensure you peel off the protective film before use.
Warranty and support
Artika For Living Inc. offers a three-year limited warranty for manufacturing defects for residential use. The original sales receipt is required for claims. For support, contact Artika at 1-866-661-9606 or [email protected].
Manufacturer information
Artika
Practical help
Common problems
Light does not turn on
Check if the circuit breaker is on and verify that all wire connections are secure and correctly matched.
Flickering or buzzing
Ensure the dimmer switch being used is compatible with LED lighting.
Before use
- Turn off the main power at the circuit breaker.
- Verify you have a screwdriver, drill, and 1/4-in. drill bit.
- Check that all hardware listed in the manual is included.
- Ensure the installation location is suitable for indoor residential use.
- Consult a certified electrician if you are not familiar with electrical wiring.
Specs in practice
- Selectable White Technology
- Allows the user to choose the color temperature of the light from 2700K (warm) to 5000K (cool) via a switch on the fixture.
Images and diagrams

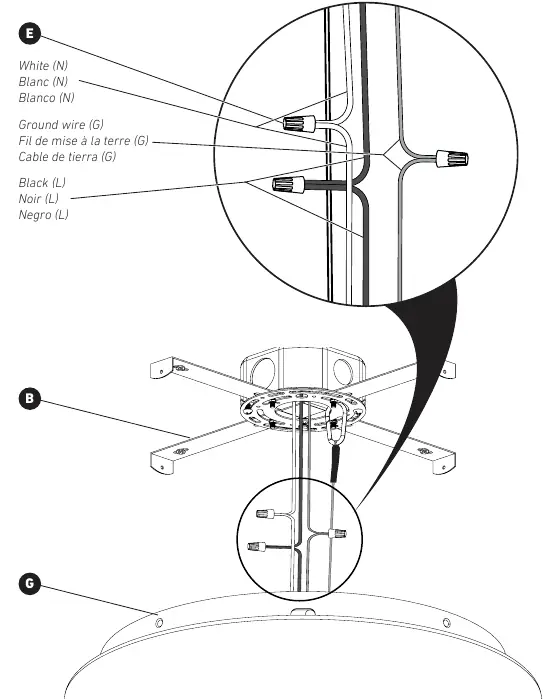

- The wiring diagram illustrates connecting the Ground wire, White (Neutral) wire, and Black (Live) wire using the provided wire connectors.
- The installation steps show the sequence of mounting the bracket to the ceiling, connecting wires, and attaching the fixture canopy.
Model compatibility
- For indoor residential use only.
- Requires an LED-compatible dimmer switch if dimming is desired.
