Artusi 100cm Freestanding Cooker AFGR1047B
View the technical specifications and features of the Artusi 100cm Freestanding Cooker (Model AFGR1047B). This guide details the three-cavity oven configuration, seven-burner gas cooktop, safety features, and physical dimensions for...
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides the technical specifications and feature overview for the Artusi 100cm Freestanding Cooker, model AFGR1047B. It outlines the configuration of the three oven cavities, the seven-burner gas cooktop, and the physical dimensions required for installation. Please note that the provided drawings are not to scale and are intended for reference; refer to the full user guide for detailed installation instructions.
Oven Features
The unit features a 3-door electric oven system with an analogue clock and minute timer.
Cavity 2 (Left Side, Main Oven)
- Thermostat: 50–240°C
- Functions: 4 cooking functions (defrost, top only, bottom only, bottom + top heating elements with fan)
- Capacity: 4 shelf positions
- Internal Size: 46.5W x 32H x 41D cm
- Included: 1 x baking tray & grill inset, 1 x chrome-wire rack, 1 x telescopic rack
Cavity 1 (Left Side, Grill)
- Thermostat: 40–240°C
- Power: 1400W grill
- Capacity: 3 shelf positions
- Internal Size: 46.5W x 17H x 41D cm
- Included: 1 x chrome-wire shelf
Cavity 3 (Right Side, Secondary Oven)
- Functions: Fan forced
- Thermostat: 40–240°C
- Capacity: 4 shelf positions
- Internal Size: 36.5W x 31.5H x 41D cm
- Included: 1 x baking tray & grill inset, 1 x chrome-wire rack
Cooktop Features
The cooktop features a black cooking surface with cast-iron trivets, burner caps, and a WOK cradle.
- Burners: 7 gas burners total (1 x WOK, 2 x rapid, 2 x semi-rapid, 2 x auxiliary)
- Total Gas Consumption: NG 58.6 Mj/h
- Safety: Flame failure safety device fitted to each burner with automatic electronic ignition
Storage Compartment
- Capacity: 3 shelf positions
- Internal Size: 36.5W x 18H x 41D cm
Safety and Maintenance
- Doors: Triple-glazed glass doors for improved safety and insulation.
- Cleaning: The unit features an easy-to-clean inner door.
Practical help
Common problems
Burner fails to ignite
Ensure the flame failure safety device is functioning and the automatic electronic ignition is activated.
Installation fitment issues
Product dimensions (1000w x 600d x 900h mm) are indicative only; use the actual product to define dimension cut-outs.
Before use
- Verify gas type (NG 58.6 Mj/h) is compatible with your supply.
- Ensure the installation area accommodates the 1000mm width and 600mm depth.
- Check that all burner caps and trivets are correctly positioned.
- Confirm electrical connection for the oven and ignition system.
Specs in practice
- 1000w x 600d x 900h mm
- External dimensions of the cooker.
- Triple-glazed
- Three layers of glass in the oven door for heat retention and safety.
Images and diagrams

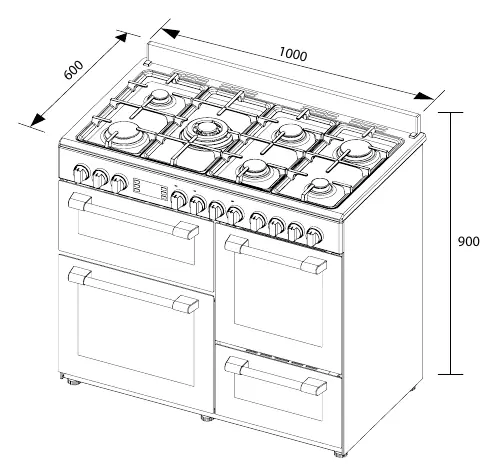

- The technical diagram illustrates the overall dimensions of the unit: 1000mm width, 600mm depth, and 900mm height.
Model compatibility
- Designed for Natural Gas (NG) usage.
- Drawings provided are not to scale; refer to the full user guide for installation.
