Installation Manual for Aurora FLC Series LED Floodlight
Quick installation guide for Aurora FLC Series LED floodlights. Includes wiring diagrams, safety requirements, and mounting instructions for models EN-FLC30 through EN-FLC200.
Table of contents
Quick Installation Guide
The Aurora FLC Series floodlights are designed for outdoor use and require installation by a qualified electrician. The process involves isolating the power, marking and drilling mounting holes, securing the bracket, wiring the unit to an IP-rated junction box, and attaching the light fixture. Ensure the power is switched off at the mains before beginning any work.
Safety Information
- Class I: This luminaire must be earthed.
- IP Rating: The unit is IP65 rated, providing protection against dust and low-pressure water jets.
- Usage Restrictions: Do not install in saunas or steam rooms.
- Dimmability: The unit is not dimmable.
- Maintenance: There are no user-serviceable parts inside the luminaire.
Installation Steps
- Isolate Power: Ensure the mains power supply is switched off.
- Marking: Use the mounting bracket as a template to mark the hole positions. Hole spacing varies by model: 150mm for EN-FLC30/50, 180mm for EN-FLC80/100, and 185mm for EN-FLC150/200.
- Drilling: Drill the holes into the mounting surface.
- Mounting: Secure the bracket to the wall using appropriate screws and rawl plugs (not supplied).
- Wiring: Connect the supply cable to an IP-rated junction box (not included). Connect the Brown wire to Live (L), Blue wire to Neutral (N), and Green/Yellow wire to Earth.
- Final Assembly: Attach the floodlight unit to the mounted bracket and secure it.
- Power Up: Restore the mains power supply.
Technical Specifications
The FLC Series operates on a standard input voltage of 100-240V at 50/60Hz AC. The installation height should be at least 2.5 meters from the ground.
Manufacturer information
Aurora Lighting
Practical help
Common problems
Light does not turn on
Check that the mains power is on and verify all wiring connections in the junction box are secure.
Dimming issues
The FLC Series is not dimmable; ensure it is not connected to a dimmer switch.
Installation location concerns
Do not install in saunas, steam rooms, or areas with high humidity/heat that exceed the IP65 rating.
Before use
- Ensure the power supply is isolated at the mains.
- Verify the mounting surface is suitable for the weight of the floodlight.
- Confirm the supply voltage is 100-240V 50/60Hz.
- Ensure you have an IP-rated junction box for the wiring connections.
- Check that you have the correct screws and rawl plugs for your specific wall type.
Specs in practice
- 100-240V 50/60Hz
- Compatible with standard global mains voltage ranges.
Images and diagrams

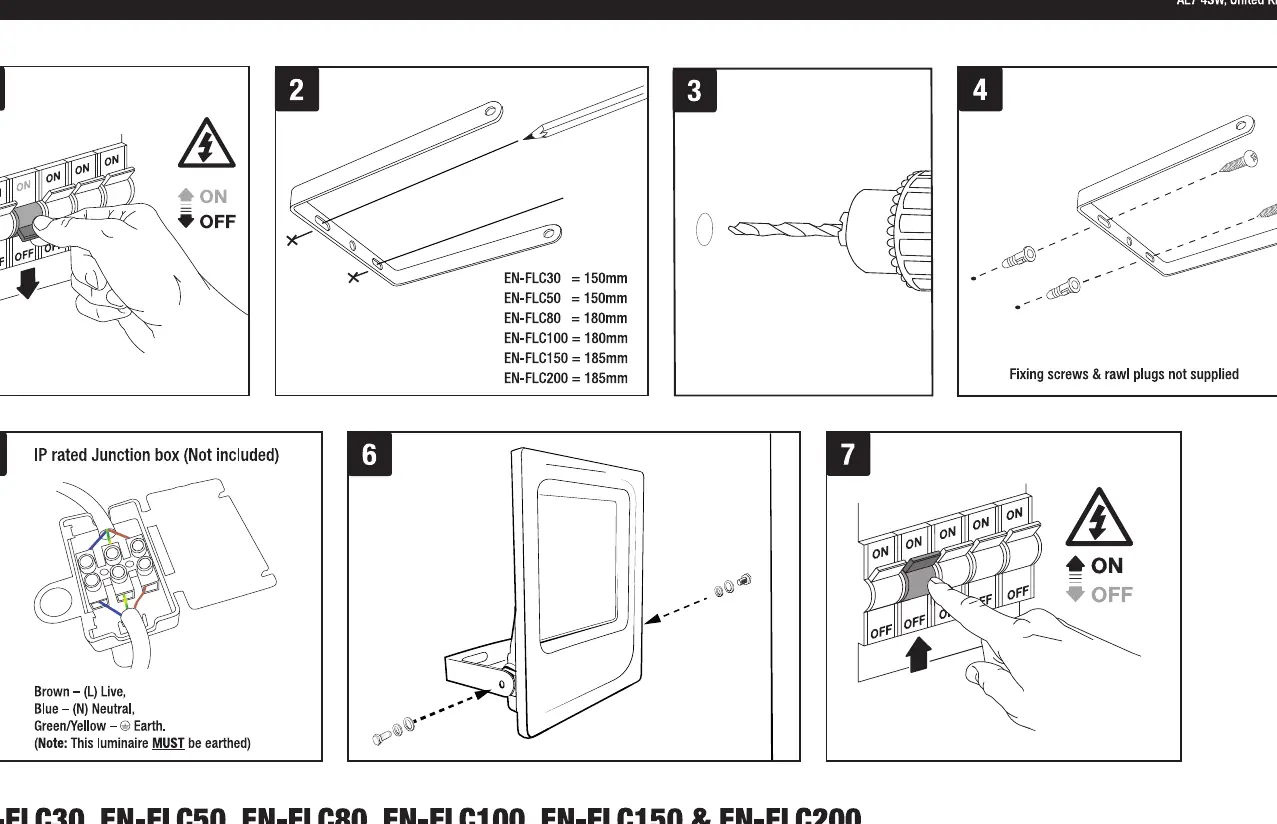

- Step 1: Isolate power at the circuit breaker.
