User Manual for Avantco 177IC3500 3500W Countertop Induction Range
Quick guide for the Avantco 177IC3500 3500W Countertop Induction Range. Includes operation instructions, safety warnings, error codes, cleaning tips, and technical specifications.
Quick answers from the manual
Quick answer
- The Avantco 177IC3500 is a 3500W countertop induction range. It operates on 208-240V power and features adjustable power levels (500-3500W), temperature control (140-460°F), and a 0-180 minute timer. p. 1, 2, 7
Key actions
- Place magnetic cookware centered on the plate before turning on. p. 7
First start
- Plug into a grounded 208-240V socket, press ON/OFF, then press Temp/Heating to start. p. 7
Problems and fixes
E0
No cookware on cooker. Place cookware on plate.
p. 9
E1
Temperature sensor overheated. Let cool.
p. 9
E2
Cookware too hot. Unplug and let cool.
p. 9
E3
Power surge protection.
p. 9Error codes
| Code | Meaning | Action | Pages |
|---|---|---|---|
| E0 | No cookware detected | Place cookware on plate and turn on | p. 9 |
| E1 | Sensor overheated | Let cool down | p. 9 |
| E2 | Cookware too hot | Unplug and let cool | p. 9 |
| E3 | Power surge | Wait for normal current | p. 9 |
Maintenance and reset
- Clean after each use with a damp cloth. Do not use abrasive cleaners. p. 10
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Wattage | 3500W | Power consumption | p. 2 |
| Voltage | 208-240V | Operating voltage | p. 2 |
| Temperature Range | 140-460°F | Cooking temperature | p. 2 |
Where to find it in the PDF
- Specifications p. 2
- Operation p. 7
- Safety Functions p. 9
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

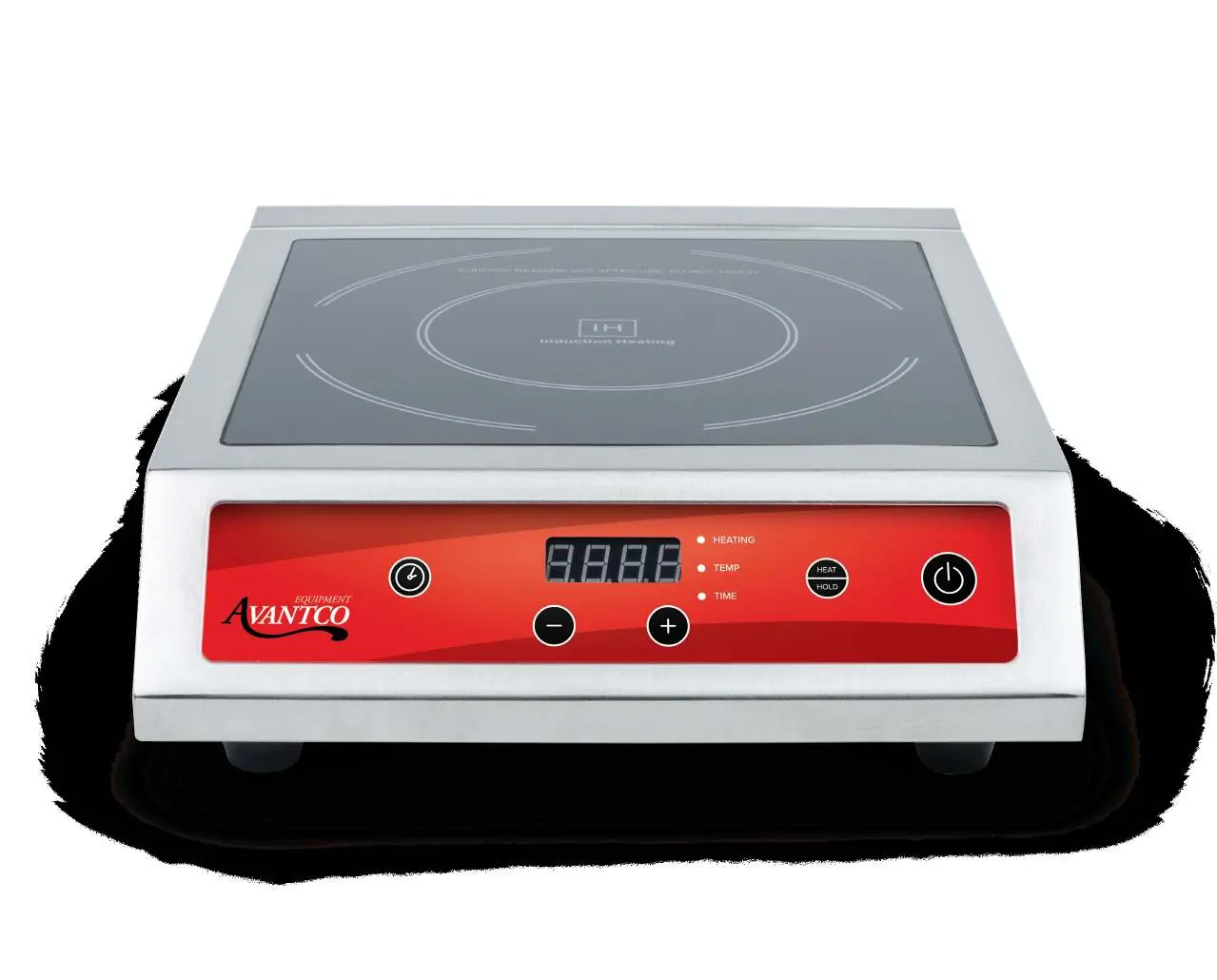

The Avantco 177IC3500 is a 3500W countertop induction range designed for commercial or residential use. It requires magnetic cookware and operates on a 208-240V power supply. Always ensure the unit is placed on a stable, flat, and dry surface with adequate ventilation.
Safety Precautions
- Electrical Safety: Connect only to a grounded power socket with appropriate voltage (208-240V). Do not use multiple sockets or extension cords.
- Surface Safety: The cooking surface is tempered glass. Do not use if cracked. Do not place empty pots on the unit.
- Usage: Keep away from children. Do not place magnetic objects (credit cards, electronics) near the unit while in operation.
- Ventilation: Do not block air supply or ventilation slots.
Operation
- Place suitable magnetic cookware filled with food centered on the cooking field.
- Plug the unit into a suitable socket; a long acoustic signal will sound.
- Press the ON/OFF key to enter Standby Mode.
- Press the Temp/Heating button to start the fan and enter power mode.
- Use the + or - keys to adjust power (500W–3500W) or temperature (140°F–460°F).
- Use the Timer button to set cooking time (0–180 minutes in 5-minute steps). If not set, it defaults to 180 minutes.
Control Panel
The control panel features an LED display, a Timer key, Increase/Decrease keys, a Heat/Hold key, and an ON/OFF key. The display shows power levels, temperature, or time depending on the selected mode.
Safety Functions and Error Codes
The unit includes built-in safety features. If an error occurs, the display will show a code:
- E0: No cookware detected. Place magnetic cookware on the plate.
- E1: Temperature sensor overheated. Let the unit cool down.
- E2: Cookware too hot (boil dry protection). Unplug and let cool.
- E3: Power surge protection. Wait for current to return to normal.
- E1-3: General safety error. Unplug and let cool.
Usable Cookware
Use only magnetic cookware (ferromagnetic). Suitable materials include steel, cast iron, enameled iron, and stainless steel with a magnetic bottom. Do not use glass, ceramic, copper, or aluminum. Test with a magnet to confirm suitability.
Cleaning and Maintenance
- Always switch off and unplug the appliance before cleaning.
- Let the unit cool down completely.
- Wipe the plates and stainless steel surface with a damp cloth only.
- Do not immerse the device or cord in water.
- Do not use abrasive cleaners, scouring pads, or sharp objects.
Manufacturer information
Avantco Equipment
Practical help
Common problems
Unit displays E0
No cookware detected. Place magnetic cookware on the plate and turn on.
Unit displays E1
Temperature sensor overheated. Let the unit cool down.
Unit displays E2
Cookware too hot (boil dry protection). Unplug and let cool for 20 minutes.
Unit displays E3
Power surge protection. Wait for current to return to normal.
Before use
- Ensure the surface is stable, flat, and dry.
- Verify the power socket is grounded and matches 208-240V.
- Use only magnetic cookware (test with a magnet).
- Ensure the cookware is centered on the cooking field.
- Do not block ventilation slots.
- Clean the unit surface with a slightly moist cloth.
Specs in practice
- Power Levels
- Adjustable from 500W to 3500W.
- Temperature Range
- 140°F to 460°F.
Images and diagrams
- The control panel features a timer key, LED display, increase/decrease keys, heat/hold key, and ON/OFF key.

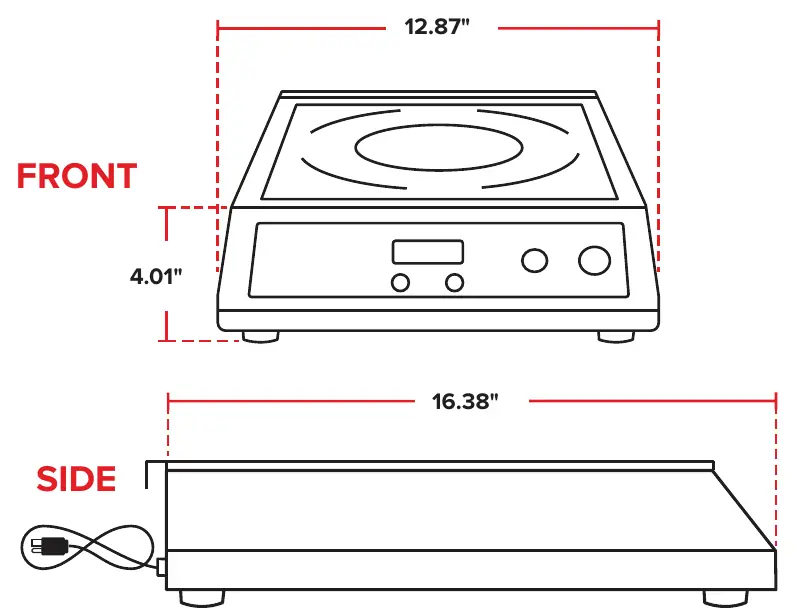

- The technical drawing shows the unit dimensions: 12.87" x 16.38" x 4.01".
Model compatibility
- Use magnetic cookware (steel, cast iron, enameled iron, stainless steel).
- Do not use glass, ceramic, copper, or aluminum cookware.
- Cookware bottom diameter should be between 4¾" and 10¼".
