User Manual for Avantco 177ID18DB Double Drop-In Induction Range
Quick guide for the Avantco 177ID18DB Double Drop-In Induction Range. Includes operation instructions, safety warnings, error codes, cleaning tips, and technical specifications.
Quick answers from the manual
Quick answer
- The Avantco 177ID18DB is a double drop-in induction range. It requires magnetic cookware, operates on 208-240V, and features 8 power levels and a 0-99 minute timer. p. 1, 2, 7
Key actions
- Powering on and adjusting settings p. 7
- Setting the timer p. 7
First start
- Plug in, place magnetic cookware, press ON/OFF, and select power level. p. 7
Problems and fixes
E0 Error
No cookware on cooker. Place magnetic cookware on plate.
p. 10
E1 Error
Temperature sensor overheated. Let unit cool.
p. 10Error codes
| Code | Meaning | Action | Pages |
|---|---|---|---|
| E0 | No cookware on cooker | Place cookware on plate and turn on | p. 10 |
| E1 | Temperature sensor overheated | Unplug and let cool | p. 10 |
| E2 | Cookware too hot | Unplug and let cool completely | p. 10 |
| E3 | Power surge protection | Wait for normal current | p. 10 |
Maintenance and reset
- Clean with damp cloth, do not immerse in water. p. 11
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Wattage | 3100W | 1800W Rear & 1300W Front | p. 2 |
| Voltage | 208-240V | Operating voltage | p. 2 |
Where to find it in the PDF
- Specifications p. 2
- Operation p. 7
- Control Panel p. 10
Table of contents
Manual images
Click an image to enlargeQuick Guide
The Avantco 177ID18DB is a double drop-in induction range designed for commercial use. Before first use, ensure the unit is placed on a flat, dry, heat-resistant surface. Always use magnetic cookware. The unit operates on 208-240V power. Never leave the appliance unattended while in operation.
Operation
The appliance features two induction cooking plates that can be used independently or simultaneously. To operate:
- Plug the unit into a suitable grounded socket.
- Place magnetic cookware filled with food in the center of the cooking zone.
- Press the ON/OFF key to enter Standby Mode.
- Use the '+' or '-' keys to adjust the power level (1-8).
- Use the timer arrow to set a cooking time from 0 to 99 minutes. If no timer is set, the unit defaults to 99 minutes.
- Press the 'Lock' button to engage the child lock mode.
Safety Functions
The unit includes built-in safety features indicated by error codes on the display:
- E0: No cookware detected. The unit will switch to standby after 1 minute.
- E1: Temperature sensor overheated or out of order. The unit will stop heating until cooled.
- E2: Cookware too hot (boil dry protection). Unplug and let cool.
- E3: Power surge protection. The unit will return to normal once current stabilizes.
Cookware Compatibility
Induction cooking requires specific cookware. Use only magnetic (ferromagnetic) pots and pans, such as enameled iron, cast iron, or stainless steel with a magnetic base. Do not use glass, ceramic, or aluminum cookware. A simple test is to see if a magnet sticks to the bottom of the pan.
Cleaning and Maintenance
Always switch off and unplug the appliance before cleaning. Allow the unit to cool completely. Wipe the glass surface and stainless steel body with a damp cloth. Do not use abrasive cleaners, scouring pads, or sharp objects. Never immerse the unit or power cord in water or other liquids.
Technical Specifications

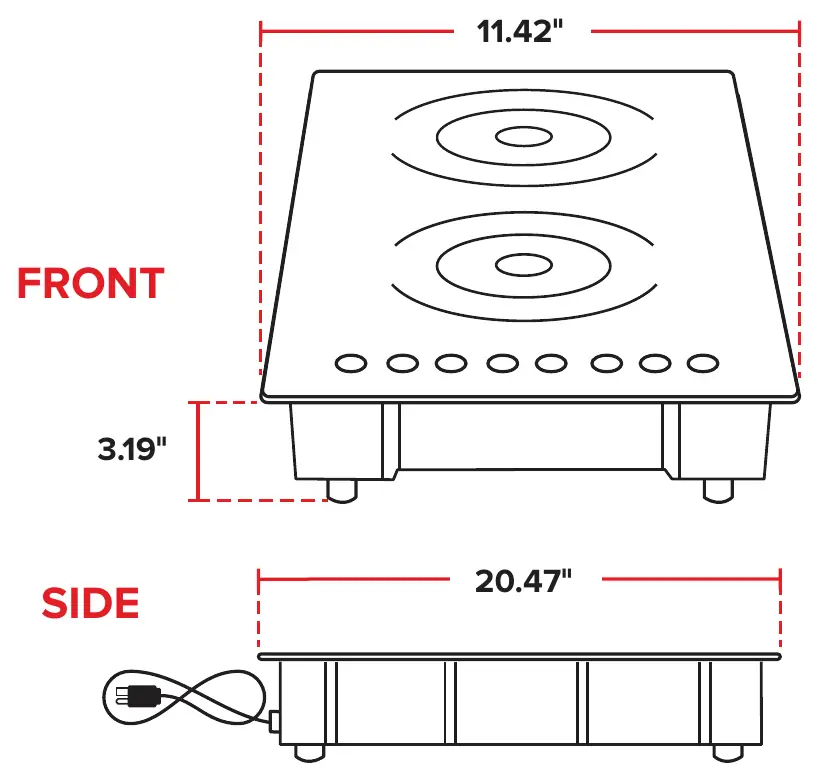

The 177ID18DB model operates at 3100W total (1800W rear, 1300W front) on 208-240V, 60Hz power. It features a 0-99 minute timer and requires a cutout dimension of 10.2"W x 19.25"D.
Manufacturer information
Avantco Equipment
Practical help
Common problems
Unit displays E0
No cookware detected. Place magnetic cookware on the plate.
Unit displays E1
Temperature sensor overheated. Allow the unit to cool down.
Unit displays E2
Cookware is too hot (boil dry protection). Unplug and let cool for 20 minutes.
Unit displays E3
Power surge protection. Wait for the electrical current to return to normal.
Before use
- Ensure the surface is flat, dry, and heat-resistant.
- Verify the power supply is 208-240V.
- Check that cookware is magnetic (ferromagnetic).
- Ensure ventilation slots are not blocked.
- Clean the unit surface with a moist cloth.
Specs in practice
- Power Levels
- Adjustable from 1 to 8 for precise heat control.
- Cutout Dimensions
- Required opening size for installation: 10.2"W x 19.25"D.
Images and diagrams
- The control panel features separate controls for the rear and front burners, a timer setting, and a lock key.
Model compatibility
- Requires magnetic cookware (steel, cast iron, enameled iron).
- Do not use glass, ceramic, or aluminum cookware.
- Recommended bottom diameter is 6.5 inches.
