User Manual for Avantco 177IC35DB Double Countertop Induction Range
Comprehensive user guide for the Avantco 177IC35DB Double Countertop Induction Range. Includes setup, operation, safety precautions, error codes, and maintenance instructions.
Quick answers from the manual
Quick answer
- The Avantco 177IC35DB is a 3600W double countertop induction range. It requires magnetic cookware and operates between 140-460°F with a 0-180 minute timer. p. 1, 2, 7
Key actions
- Adjusting power, temperature, and time p. 7, 9
First start
- Plug in, place magnetic cookware, press ON/STAND BY, select mode (Watt/Temp), and adjust with +/- keys. p. 7
Problems and fixes
E0 Error
No cookware on cooker. Place cookware on plate and turn on.
p. 9
E1 Error
Temperature sensor overheated. Allow to cool.
p. 9
E2 Error
Cookware too hot. Unplug and let cool.
p. 9Error codes
| Code | Meaning | Action | Pages |
|---|---|---|---|
| E0 | No cookware on cooker | Place cookware on plate and turn on | p. 9 |
| E1 | Temperature sensor overheated/sensor out of order | Allow to cool | p. 9 |
| E2 | Cookware too hot | Unplug and let cool down completely | p. 9 |
| E3 | Power surge protection | Unit will return to normal function when current is normal | p. 9 |
Maintenance and reset
- Clean with damp cloth, do not use abrasive cleaners, store in dry place. p. 10
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Wattage | 3600W (1800W Each) | Total power output | p. 2 |
| Voltage | 208-240V | Required power supply | p. 2 |
| Temperature Range | 140-460°F | Adjustable cooking temperature | p. 2 |
Where to find it in the PDF
- Specifications p. 2
- Operation p. 7
- Control Panel p. 9
Table of contents
Manual images
Click an image to enlargeQuick Guide

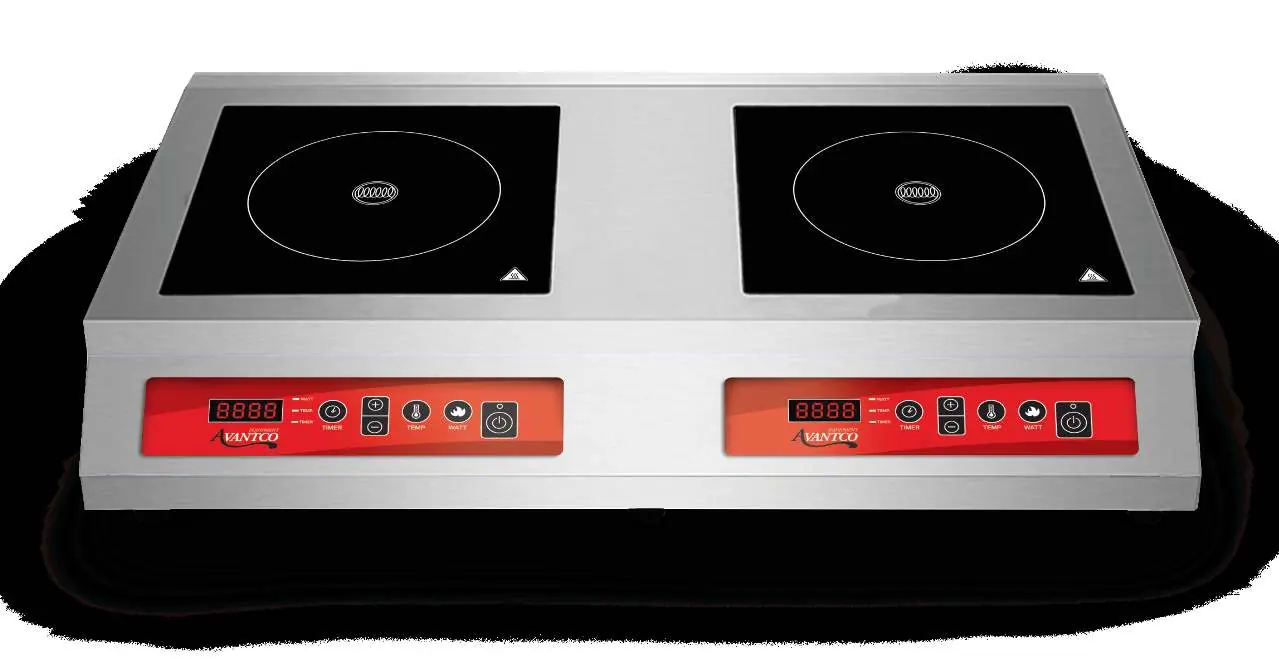

The Avantco 177IC35DB is a double countertop induction range designed for commercial use. It requires magnetic cookware to function. The unit features independent controls for each burner, allowing you to adjust power levels, temperature, and cooking time. Always ensure the unit is placed on a stable, flat surface and that ventilation slots are not blocked.
Safety Precautions
- Electrical Safety: Connect only to a grounded power socket with appropriate voltage (208-240V). Do not use multiple sockets or extension cords.
- Pacemakers: Persons with pacemakers should maintain a minimum distance of 60 cm from the device while in operation.
- Cookware: Use only magnetic cookware. Do not place empty pots on the unit.
- Environment: Do not use on wet ground. Keep away from flammable materials. Do not block ventilation slots.
- Cleaning: Never immerse the unit or cord in water. Do not use a dishwasher.
Operation
Follow these steps to operate the induction range:
- Place magnetic cookware filled with food centered on the cooking plate.
- Plug the unit into a suitable socket.
- Press the ON/STAND BY button to enter standby mode.
- Press the Watt Key to turn the device on. The fan will start, and the display will default to 9.
- Use the + or - keys to adjust power levels (1-9).
- Press the Temp button to switch to temperature mode and adjust using + or - (140-460°F).
- Press the Timer button to set the cooking time (0-180 minutes). If not set, it defaults to 180 minutes.
Suitable Cookware
The induction range requires cookware with a magnetic (ferromagnetic) bottom. Suitable materials include steel, cast iron, enameled iron, and stainless steel. Do not use glass, ceramic, copper, or aluminum cookware. The bottom diameter should be between 4¾" and 10¼".
Cleaning and Maintenance
- Always switch off and unplug the appliance before cleaning.
- Allow the unit to cool down completely.
- Wipe the plates and stainless steel surface with a damp cloth only.
- Do not use abrasive cleaners, metal scouring pads, or sharp objects.
- Do not use petrol products or flammable acid/alkaline substances.
- Store in a dry place out of reach of children.
Troubleshooting
If the unit displays an error code, refer to the following:
- E0: No cookware detected. Place magnetic cookware on the plate.
- E1: Temperature sensor overheated or out of order. Allow the unit to cool.
- E2: Cookware too hot (boil dry protection). Unplug and let cool.
- E3: Power surge protection. Unit will return to normal once current stabilizes.
Manufacturer information
Avantco Equipment
Practical help
Common problems
Unit will not switch on to heat (E0)
Ensure magnetic cookware is placed centered on the cooking plate.
Unit stops heating (E1)
The temperature sensor is overheated. Allow the unit to cool down.
Unit locks up (E2)
Boil dry protection activated. Unplug the unit and let it cool for 20 minutes.
Before use
- Verify power supply is 208-240V.
- Ensure the unit is on a stable, flat, dry surface.
- Check that ventilation slots are clear.
- Confirm cookware is magnetic (ferromagnetic).
- Clean the surface with a damp cloth.
Specs in practice
- Temperature Range
- Adjustable from 140°F to 460°F.
Images and diagrams
- The control panel features an LED display, Timer, Temp, Watt, and ON/OFF keys.
- Induction cooking works by creating an alternating electromagnetic field that heats the bottom of the cookware directly.
Model compatibility
- Use magnetic cookware only.
- Recommended bottom diameter: 8 inches.
- Do not use glass, ceramic, copper, or aluminum.
