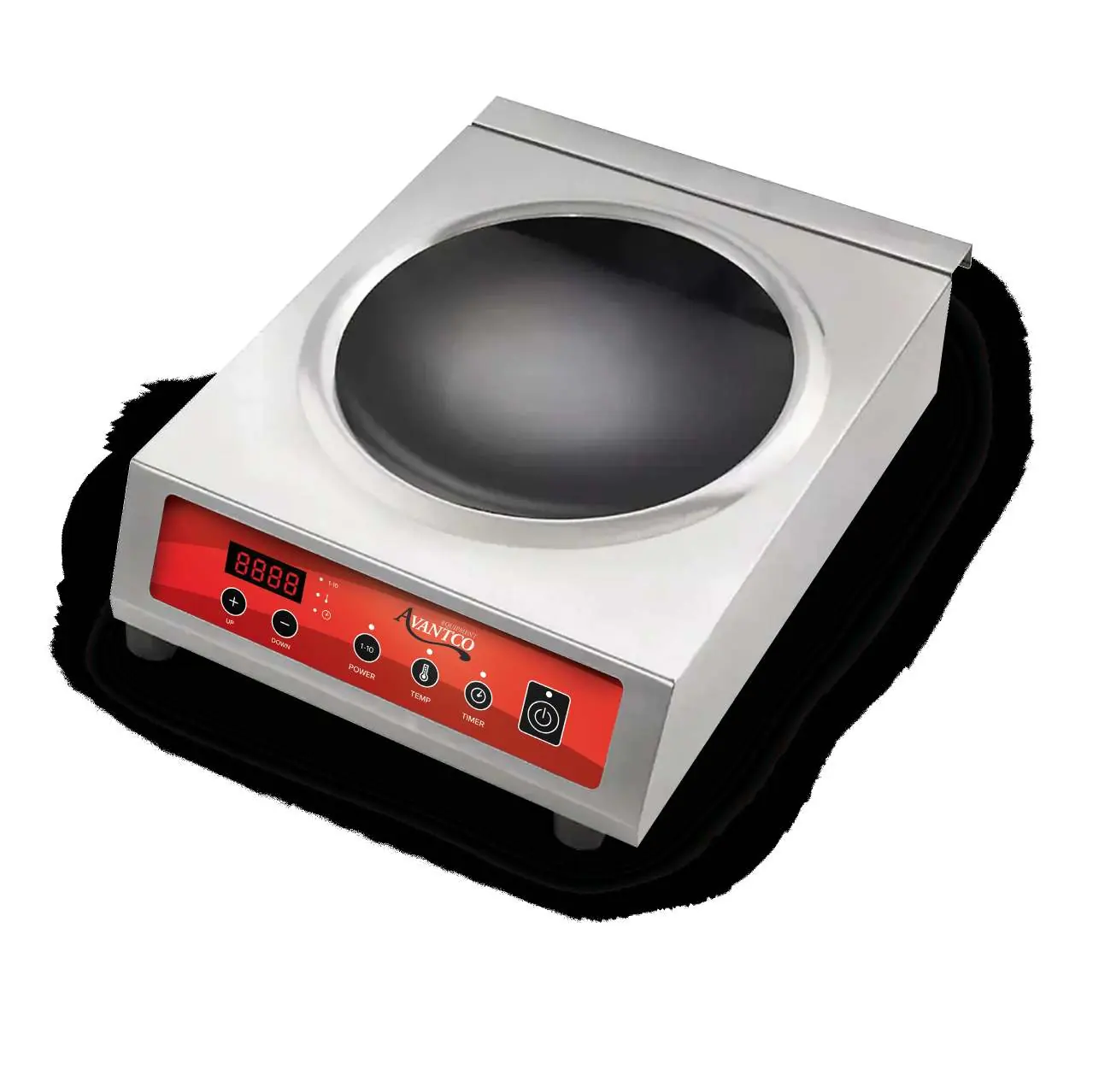

User Manual for Avantco 177IWC35 3500W Countertop Wok Induction Range

Comprehensive user guide for the Avantco 177IWC35 3500W Countertop Wok Induction Range. Includes setup instructions, operation modes, safety functions, error codes, and maintenance tips.

Quick answers from the manual

Quick answer

The Avantco 177IWC35 is a 3500W induction range. To operate, place magnetic cookware on the center, press ON/OFF, and select power level or temperature using the control panel. p. 7

Key actions

Cleaning the unit p. 10

First start

Place on flat surface, plug in, place magnetic cookware, press ON/OFF. p. 7

Problems and fixes

No cookware detected. Place magnetic cookware on plate.

p. 9

Sensor overheated. Let cool.

p. 9

Error codes

Code	Meaning	Action	Pages
E0	No cookware	Place cookware on plate	p. 9
E1	Sensor overheated	Let cool	p. 9
E2	Cookware too hot	Unplug and let cool	p. 9
E3	Power surge	Wait for normal current	p. 9

Maintenance and reset

Unplug and let cool down completely for E2 error. p. 9

Technical specifications

Parameter	Value	Meaning	Pages
Wattage	3500W	Power consumption	p. 2
Voltage	208-240V	Required power supply	p. 2

Where to find it in the PDF

Specifications p. 2
Operation p. 7
Safety Functions p. 9

Table of contents

Quick Guide from the Manual

The Avantco 177IWC35 is a 3500W induction range designed for commercial use. Before first use, ensure the unit is placed on a stable, flat, and dry surface. Always use magnetic cookware (steel, cast iron, or stainless steel) and ensure it is centered on the cooking plate. The unit operates on a 208-240V power supply.

Safety Precautions

Electrical Safety: Connect only to a grounded power socket. Do not use multiple sockets or extension cords. Never immerse the cord, plug, or appliance in water.
Usage Safety: Do not use if the glass surface is damaged. Keep away from children. Do not place empty pots on the unit.
Environment: Do not block ventilation slots. Keep away from flammable materials and heat sources.

Operation

To operate the induction range:

Place magnetic cookware filled with food in the center of the cooking plate.
Plug the unit into a suitable socket.
Press the ON/OFF button to enter Standby Mode.
Press the Power button to start. The default power level is 5. Use the + or - keys to adjust power levels (1-10).
To use temperature mode, press the Temp button. Use + or - to adjust temperature (140-460°F).
To set a timer, press the Timer button. Use + or - to adjust time (0-180 minutes).

Cleaning and Maintenance

Always switch off and unplug the appliance before cleaning.
Allow the unit to cool down completely.
Wipe the plates and stainless steel surface with a damp cloth only.
Do not use abrasive cleaners, metal scouring pads, or petrol products.
Never wash the appliance or power cord in a dishwasher.

Troubleshooting and Error Codes

If the unit displays an error code, refer to the following:

E0: No cookware detected. Place magnetic cookware on the plate.
E1: Temperature sensor overheated. Allow the unit to cool down.
E2: Cookware too hot (boil dry protection). Unplug and let cool for 20 minutes.
E3: Power surge protection. Wait for current to return to normal.
E1-3: General safety error. Unplug and let cool.

Manufacturer information

Avantco Equipment

Brand profile

Manufacturer website https://www.avantco.com Support https://www.avantco.com/support

Practical help

Common problems

Unit will not switch on to heat

Ensure magnetic cookware is placed on the center of the cooking plate.

E1 error code

Temperature sensor overheated. Allow the unit to cool down.

E2 error code

Boil dry protection activated. Unplug and let cool for 20 minutes.

Before use

Check for any damage to the unit or power cord
Place on a stable, flat, and dry surface
Ensure the power supply is 208-240V
Verify cookware is magnetic (steel, cast iron, stainless steel)
Clean the surface with a moist cloth

Specs in practice

Power Levels: Adjustable from 1 to 10 for heat intensity.
Temperature Range: Adjustable from 140°F to 460°F.

Images and diagrams

The control panel features an LED display, Power, Temp, Timer, and +/- adjustment keys.
The technical drawing shows the unit dimensions: 13.39" x 17.13" x 4.73".

Model compatibility

Use only magnetic cookware (ferromagnetic).
Do not use glass, ceramic, or aluminum cookware.
Flat-bottom woks must be 14 inches or smaller.
