User Manual for Avantco 177BCG3 Bulk Coffee Grinder

Quick guide for the Avantco 177BCG3 Bulk Coffee Grinder. Includes installation, operation, cleaning, maintenance, and troubleshooting instructions.

Quick answers from the manual

Quick answer

The Avantco 177BCG3 is a commercial bulk coffee grinder. It requires professional installation and periodic maintenance, including burr replacement every 1,000kg of coffee. p. 1, 8

Key actions

Perform First Time Operation p. 7
Grind Coffee p. 7

First start

Run the grinder empty, cycling the grind setting from #9 to #1 and back to #9 to check for abnormal noise. p. 7

Problems and fixes

Overload protection tripped

Allow the grinder to cool, then reset the semi-automatic protector by pressing the protector’s button on the back.

p. 8

Maintenance and reset

Replace grinding burrs after every 1,000kg of coffee. p. 8

Technical specifications

Parameter	Value	Meaning	Pages
Electrical	110V / 60Hz	Power requirements	p. 4
Hopper Capacity	3 lb.	Bean storage capacity	p. 4

Where to find it in the PDF

General Description p. 5
Technical Specifications p. 4

Table of contents

Manual images

Click an image to enlarge

General Description of the Avantco 177BCG3

Page 5

Page 6

Quick Guide from the Manual

The Avantco 177BCG3 is a commercial-grade bulk coffee grinder. Before first use, it is critical to perform the 'First Time Operation' procedure to ensure the unit is functioning correctly. The grinder is designed for indoor, commercial use only and requires professional installation and maintenance.

General Description

The unit features a main power switch, a grinding dial for coarseness adjustment, a bean hopper with a lid, a coffee grounds outlet chute, and a residue tray. An overload protector is located on the back of the unit.

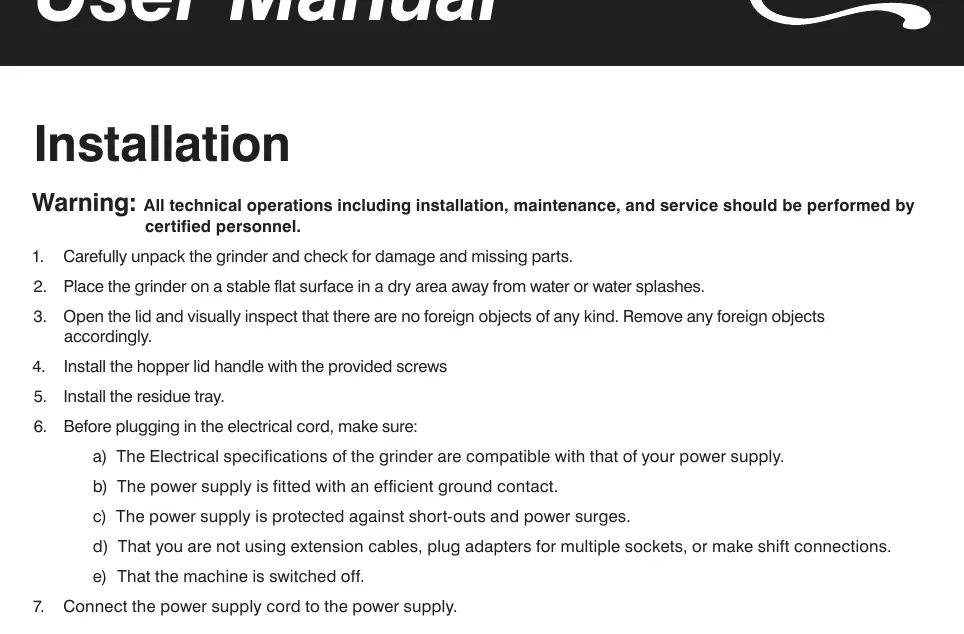

Installation

Placement: Place the grinder on a stable, flat surface in a dry area away from water.
Assembly: Install the hopper lid handle using the provided screws and attach the residue tray.
Electrical: Ensure the power supply matches the grinder's specifications (110V/60Hz). Do not use extension cords or plug adapters. The unit must be electronically grounded.

Operation

First Time Operation:

Connect to power with the main switch in the OFF position.
Set the grind dial to the coarsest position (#9).
Do not add coffee beans.
Switch to RUN.
Gradually change the grind setting from #9 to #1 and back to #9 while the unit is running.
Listen for abnormal noises; if detected, contact a technician.

Grinding Coffee:

Fill the hopper with beans and place a container under the chute.
Set the desired coarseness using the dial.
Switch to RUN to start grinding.
Switch to OFF to stop. Use the chute clipper to clear leftover grounds.
Note: To prevent overheating, grind in short intervals of no longer than 15 minutes per 35-minute period.

Maintenance & Cleaning

Periodic Maintenance: Check grinding burrs every 100kg of coffee. Replace burrs every 1,000kg.
Cleaning the Hopper: Turn off, unplug, and allow to cool. Remove the hopper and clean with a cloth, hot water, and neutral detergent.
Cleaning the Grinding Chamber: Disassemble the grinding knob and core. Use a brush and clean cloths to clean components. Do not use sharp objects on blades. Lubricate the motor shaft with food-grade lubricant before reassembly.

Safety Devices

The unit includes a semi-automatic overload protector. If the motor stops due to an over-current condition, allow the unit to cool, then press the protector's button located on the back of the grinder.

Manufacturer information

Avantco Equipment

Brand profile

Manufacturer website https://www.avantco.com Support https://www.avantco.com/support

Practical help

Common problems

Grinder squeaking or grinds too coarse

Readjust the grind setting (see 'Readjustment of Grind Setting' section).

Motor stops (Overload)

Allow the grinder to cool, then press the overload protector button on the back of the unit.

Abnormal or excessive noise

Stop operation immediately and contact a certified technician.

Before use

Ensure the grinder is placed on a stable, vertical surface.
Verify the power supply is compatible (110V/60Hz) and grounded.
Check that the bean hopper is fully secured.
Ensure no foreign objects are in the grinding chamber.
Perform the 'First Time Operation' cycle without beans.

Specs in practice

Grinding Capacity: 450gr/min (Espresso).
Beans Hopper Capacity: 3 lb.
Powder Coarseness: 100 micron (#1) to 1000 micron (#9).

Images and diagrams

Main Switch: 3-way switch (OFF, ON, RUN).
Grinding Dial: Turn clockwise for finer grind, counter-clockwise for coarser grind.
Overload Protector: Located on the back of the grinder behind the round lid.

Model compatibility

Commercial use only.
Indoor use only.
Do not use extension cords or plug adapters.
Only grind roasted coffee beans.

Show more Show less
