User Manual for Avantco Hot Dog Roller Grill 177RG1830 Series
Comprehensive user manual for Avantco Hot Dog Roller Grills (177RG1830, 177RG1830NS, 177RG1830SLT, 177RG1850NS, 177RG1850SLT). Includes setup, operation, cleaning, maintenance, parts diagrams, and conversion instructions for rear-mounted...
Quick answers from the manual
Quick answer
- This manual covers the operation, cleaning, and maintenance of Avantco Hot Dog Roller Grills. It includes specific instructions for heating hot dogs, cleaning the rollers, and converting models to rear-mounted controls. p. 1, 4, 5
Key actions
- Clean rollers p. 4
- Adjust chain tension p. 5
First start
- Clean the rollers with a soft cloth before first use. p. 3
Problems and fixes
Rollers not turning
Adjust chain tension by loosening motor screws and pushing the motor down.
p. 5Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 120V/60Hz | Power supply requirement | p. 2 |
| Heating Time | 40 minutes | Average heating duration | p. 4 |
Where to find it in the PDF
- Product Features and Specs p. 2
- Operation and Cleaning p. 4
- Conversion Instructions p. 5
- Parts Diagram and List p. 7, 8
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides essential instructions for the operation and maintenance of Avantco Hot Dog Roller Grills. Key takeaways include:
- First Use: Clean the rollers with a soft cloth before the first use.
- Operation: The left knob controls front rollers; the right knob controls back rollers. Average heating time is 40 minutes.
- Cleaning: Always unplug and cool the unit before cleaning. Wipe rollers from the end to the center to prevent grease from entering bearings.
- Maintenance: If rollers are not turning, check the chain tension by adjusting the motor screws.

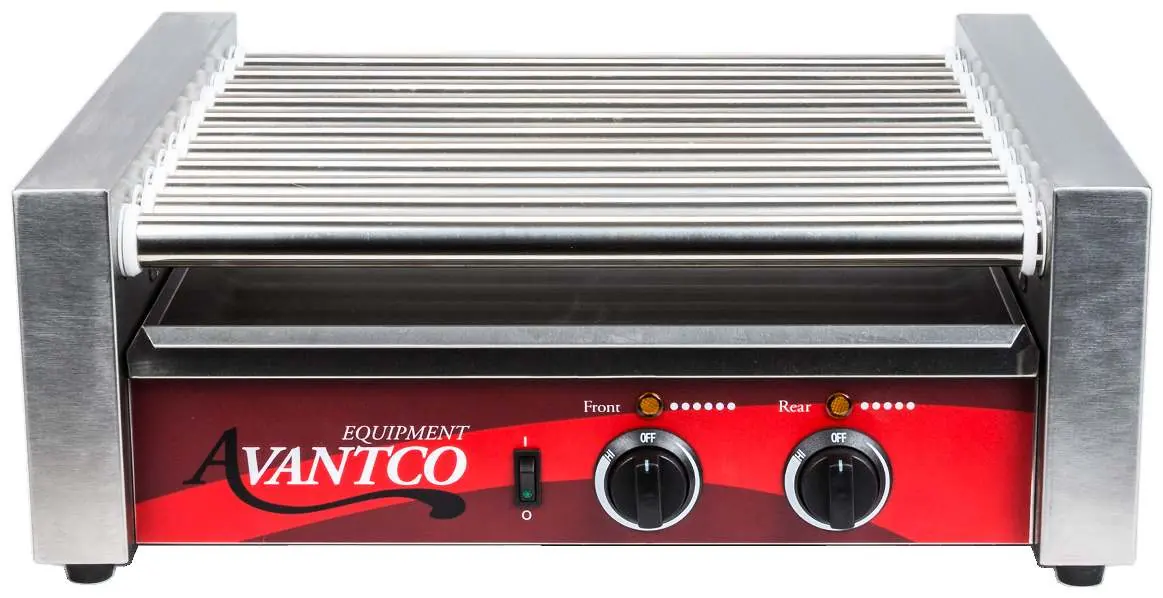

Product Features
Avantco hot dog roller grills feature high-torque motor drive systems and independent temperature controls for front and back rollers. The base is constructed from stainless steel with an extractable oil plate for easy cleaning. Teflon seals are utilized to prevent grease from entering the base and damaging the motor or drive chain.
Installation
Ensure the nameplate voltage matches your outlet voltage (120V/60Hz). Electrical and grounding connections must comply with local electrical codes. Do not operate the unit outdoors, and ensure it is placed away from gas or electric burners.
Operation Guide
Place unfrozen hot dogs evenly on the rollers. Turn the roller switch to "ON" to start rotation. Adjust the temperature knobs to the desired heat level. After 40 minutes of heating, turn the temperature control knob to low to keep the hot dogs warm. Do not leave hot dogs on the grill for more than four hours to maintain quality.
Cleaning Instructions
Unplug the unit and allow it to cool completely. Do not submerge the unit in water. Wipe rollers from the end to the center to protect the bearings. For products with high fat or sugar content, clean the rollers every 3-4 hours. Do not use abrasive cleaners or scouring pads, as these can damage the roller surface.
Conversion Instructions: Rear-Mounted Controls
Specific models (177RG1830SLT and 177RG1850SLT) can be converted to rear-mounted controls. This process involves flipping the machine, removing the base, and moving the control panel from the front to the back. It is recommended that a professional electrician performs this conversion to avoid voiding the warranty.
Technical Specifications
The grills are available in various sizes with capacities of 30 or 50 hot dogs. All models operate on 120V/60Hz power. Power consumption ranges from 910W to 1460W depending on the model.
Manufacturer information
Avantco Equipment
Practical help
Common problems
Rollers are not turning
The chain may be loose. Loosen the motor screws, push the motor down to create tension, and re-tighten the screws.
Grease buildup in bearings
Always wipe rollers from the end to the center during cleaning to prevent grease and particles from entering the bearings.
Hot dogs becoming thick and hard
Do not leave hot dogs on the grill for more than four hours.
Before use
- Ensure the nameplate voltage matches the outlet voltage.
- Clean the rollers with a soft cloth.
- Ensure the unit is in the 'OFF' position before plugging in.
- Verify the unit is placed on a stable, level surface.
Specs in practice
- Heating Duration
- Average time to heat hot dogs is 40 minutes.
Images and diagrams

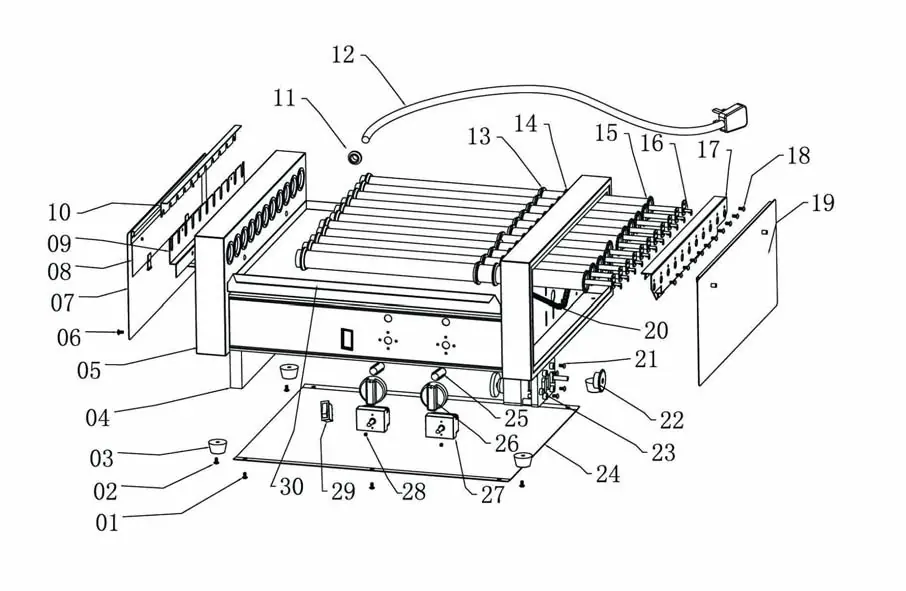

- The parts diagram identifies 30 components, including heating elements, rollers, and the motor.
- The circuit diagram illustrates the wiring for the heating elements (R1-R7) and indicator lights (HL1-HL2).
Model compatibility
- Conversion instructions for rear-mounted controls apply only to 177RG1830SLT and 177RG1850SLT models.
