User Manual for Avantco 177BMSCM Sausage Clipping Machine
Quick guide for the Avantco 177BMSCM Sausage Clipping Machine. Includes setup, operation, cleaning, and troubleshooting steps.
Quick answers from the manual
Quick answer
- The Avantco 177BMSCM is a manual sausage clipping machine. Operation involves loading clips, placing the casing at the clipping point, and pressing the handle. p. 5
Key actions
- Loading clips p. 5
- Clipping operation p. 5
First start
- Ensure the machine is stable on a flat surface before use. p. 3
Problems and fixes
The nail is stuck
Check weighted loading block position or add more clips.
p. 6Maintenance and reset
- Coat metal parts with food-safe silicone spray to prevent rusting. p. 5
Where to find it in the PDF
- Safety Precautions p. 3
- Parts Identification p. 4
- Operation p. 5
- Troubleshooting p. 6
Table of contents
Quick guide from the manual
The Avantco 177BMSCM is a manual sausage clipping machine designed for clipping bags and sausage casings. Before operating, ensure the machine is stable on a flat surface. Always read and understand all safety instructions provided in the manual to avoid injury. The machine requires regular cleaning and lubrication to maintain performance.

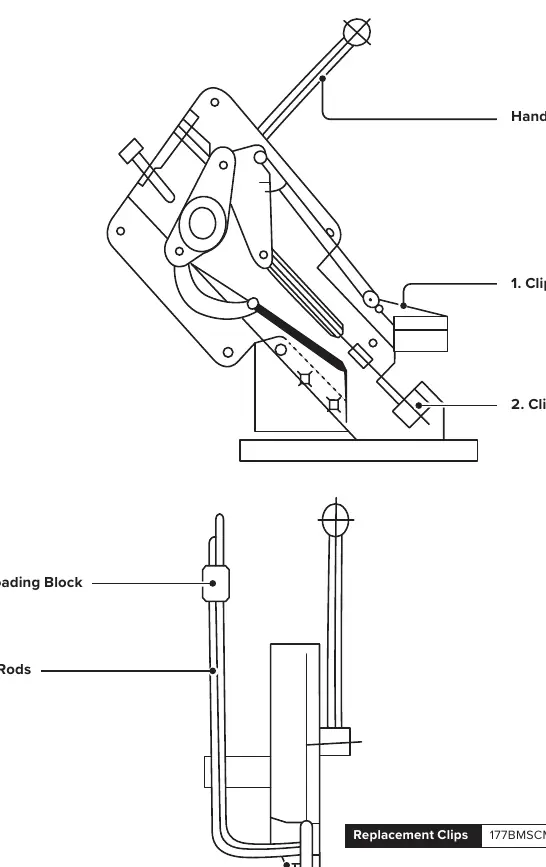

Parts Identification
- Handle: Used to operate the clipper mechanism.
- Clipper: The main clipping assembly.
- Clipping Point: The area where the bag or casing is placed for clipping.
- Weighted Loading Block: Holds the clips in place on the rods.
- Clip Holder Rods: Guides for the clips.
Operation
- Remove the weighted loading block from the machine.
- Place the clips between the clip holder rods, ensuring the opening of the clips is facing away from the machine.
- Place the weighted loading block back in its original position between the clip holder rods and above the clips.
- Position the bag or casing that needs to be clipped at the clipping point.
- Apply pressure to the handle to move the clipper and secure the bag or casing.
Note: The tightness of the sausage after clipping depends on the size and thickness of the casing. Adjust the stop screw clockwise to loosen and counter-clockwise to tighten according to the casing diameter.
Cleaning and Maintenance
Wash all parts thoroughly with warm, soapy water. A long bristle brush is recommended for cleaning. Rinse with clear water, sanitize as necessary, and dry thoroughly before storage. Any metal parts must be coated with a food-safe silicone spray to prevent rusting.
Troubleshooting
If you encounter issues, refer to the following:
- Nail is stuck: Check if the weighted loading block is positioned correctly or if there are insufficient clips on the slide.
- Handle cannot be pressed: Clean the inside of the machine and check for loose or damaged screws.
- Pressing is laborious: Clean debris in the mold groove and add lubricating oil. If issues persist after a year, swap or replace the lower mold.
Manufacturer information
Avantco Equipment
Practical help
Common problems
The nail is stuck
Ensure the weighted loading block is placed correctly on the outer slide and press it onto the clip. Add more clips if the slide is empty.
The handle cannot be pressed down
Loosen the 2-hole and 3-hole compression screws, remove the compression plates, and clean the remaining clips inside.
Pressing is laborious
Clean debris in the mold groove and add lubricating oil. If the issue persists after 1 year, swap the upper and lower positions of the lower mold or replace it.
The handle cannot be pressed
Check for loose or damaged screws inside the machine. Lock the screws in place or replace them.
Before use
- Check for damaged parts
- Ensure the machine is stable during use
- Verify clips are loaded with the opening facing away from the machine
- Adjust the stop screw based on casing diameter
Images and diagrams
- Handle: Used to operate the clipper
- Clipper: The main mechanism
- Clipping Point: Where the bag/casing is placed
- Weighted Loading Block: Holds clips in place
- Clip Holder Rods: Guides for the clips
Model compatibility
- Intended for clipping bags and sausage casings
- Use only original factory parts and accessories
