User Manual for Bauer 20141E-B Electric Pressure Washer

Quick guide for the Bauer 20141E-B Electric Pressure Washer. Includes assembly instructions, safety warnings, operating procedures, maintenance tips, and troubleshooting steps.

Quick answers from the manual

Quick answer

  • The Bauer 20141E-B is a 2000 PSI electric pressure washer. Always test the GFCI before use, ensure an adequate water supply (2.4-3 GPM), and never use an extension cord. p. 6, 10, 12

Key actions

  • Test GFCI before each use. p. 3, 12
  • Clean nozzles after every use. p. 13

First start

  • Connect water supply, plug in GFCI, test GFCI, turn on switch. p. 11, 12

Problems and fixes

Pressure Washer will not start

Check power, outlet, and GFCI reset button.

p. 15

Maintenance and reset

  • Clean nozzles with tip cleaner, flush detergent tank, drain water for storage. p. 13, 14

Technical specifications

Parameter Value Meaning Pages
Maximum Pressure 2000 PSI Maximum operating pressure p. 6
Electrical Rating 120VAC / 60Hz / 14A Power requirements p. 6

Where to find it in the PDF

  • Safety Instructions p. 3, 4, 5
  • Assembly p. 8, 9
  • Operating Instructions p. 10, 11, 12, 13
  • Maintenance p. 14
  • Parts List p. 18
Table of contents

Manual images

Click an image to enlarge
Pressure washer functions overview Page 7 Wheel assembly Page 8 Handle assembly Page 8 Gun holder assembly Page 9 Hose connection Page 9 GFCI test button Page 12

Quick guide from the manual

The Bauer 20141E-B is a 2000 PSI electric pressure washer designed for outdoor residential use. Before operating, ensure you have an adequate water supply (2.4-3 GPM) and a dedicated electrical circuit. Never use an extension cord with this unit. Always test the GFCI (Ground Fault Circuit Interrupter) before each use.

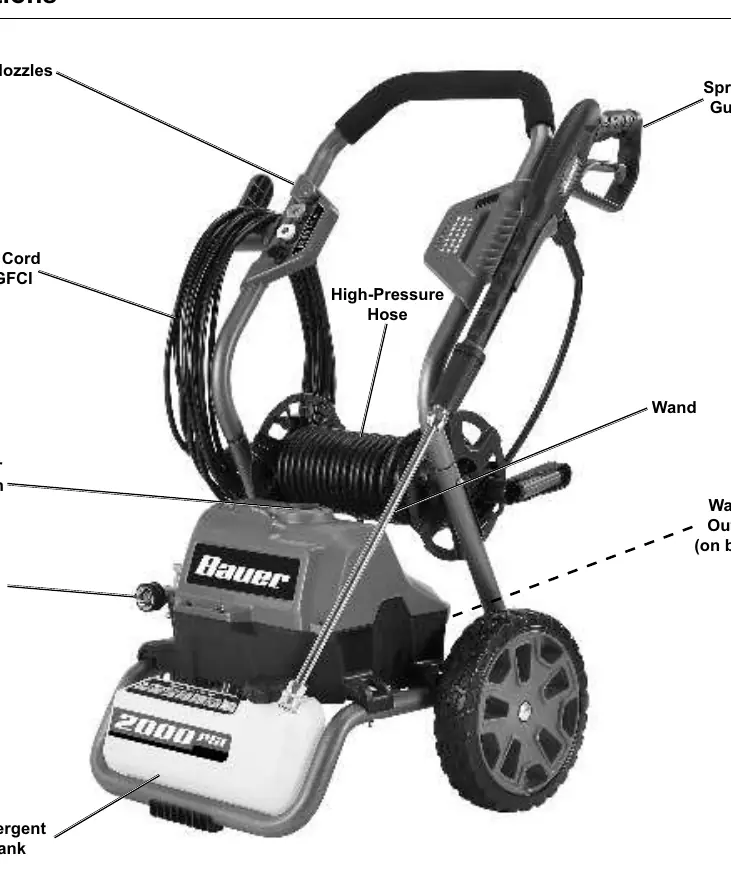

Pressure washer functions overview
Pressure washer functions overview

Assembly

Follow these steps to assemble your pressure washer:

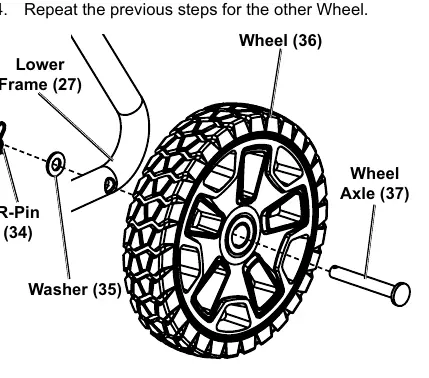

Wheel assembly
Wheel assembly
Handle assembly
Handle assembly

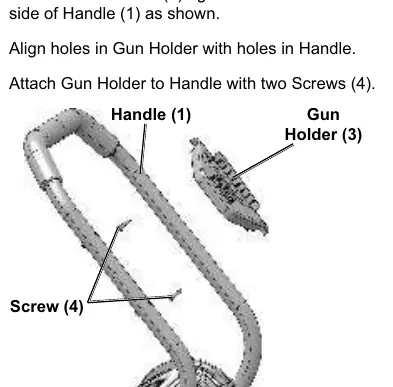

Gun holder assembly
Gun holder assembly

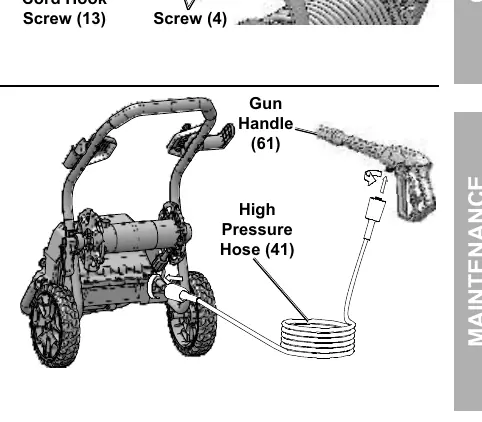

Hose connection
Hose connection
  • Wheels: Insert the wheel axle through the wheel, then through the lower frame. Secure with a washer and R-pin. Repeat for the other side.
  • Handle: Hold the spring buttons on the handle ends while inserting them into the lower frame until they pop into place.
  • Gun Holder & Storage Panel: Attach the gun holder to the left side of the handle and the storage panel to the right side using the provided screws.
  • Hose Connection: Connect the high-pressure hose to the back of the pressure washer and the gun handle by pushing the hose in and threading the coupler tightly.

Operation

Before starting, ensure the water inlet strainer is free of debris. Connect the water supply hose to the water inlet. Select the appropriate nozzle for your task. The black nozzle is specifically for dispensing detergent at low pressure.

GFCI test button
GFCI test button

To operate:

  1. Uncoil the high-pressure hose completely.
  2. Plug the GFCI into a dedicated, grounded 120V outlet.
  3. Press the RESET button on the GFCI; the indicator should light up.
  4. Turn on the water supply.
  5. Turn the power switch to the ON position.
  6. Release the trigger safety lock and press the trigger to spray.

Maintenance

Regular maintenance is essential for longevity:

  • After each use: Drain water by tipping the unit, flush the detergent tank, and clean the body with a clean cloth and mild detergent.
  • Nozzles: Clean nozzles after every use using the nozzle tip cleaner to remove debris.
  • Storage: Store in a dry, frost-free room. Flush the unit with automotive antifreeze before long-term storage.

Troubleshooting

If the unit fails to start, check the power cord, outlet, and GFCI breaker. If the pressure varies, check the water supply for kinks, clean the water inlet filter, or clean the nozzle. If the unit stops suddenly, check the GFCI breaker.

Practical help

Common problems

Pressure Washer will not start

Check that the cord is plugged in, verify power at the outlet, and press the reset button on the GFCI unit.

Pressure Washer stops suddenly

Check if the GFCI circuit breaker tripped and press the reset button. If water is leaking, discontinue use immediately.

Output pressure varies

Check water supply hose for kinks, clean the water inlet filter, or clean the nozzle with the tip cleaner.

Detergent will not dispense

Ensure you are using the correct detergent type and clean the dispenser.

Before use

  • Check water supply flow rate (must be 2.4-3 GPM).
  • Test GFCI before each use.
  • Wear ANSI-approved safety goggles.
  • Ensure water inlet strainer is free of debris.
  • Check for ice in cold weather.
  • Ensure high-pressure hose is not kinked.

Specs in practice

Electrical Rating
120VAC / 60Hz / 14A
Maximum Pressure
2000 PSI
Maximum Flow Rate
1.2 GPM

Images and diagrams

  • Assembly diagram shows parts 1-64.
  • Control panel includes power switch and water inlet/outlet.

Model compatibility

  • Intended for outdoor residential use only.
  • Do not use extension cords.
  • Use cold water only.
