User Manual for beamZ Tiger 18R MKII Moving Head
Quick guide for the beamZ Tiger 18R MKII Moving Head. Includes installation, DMX control, gobo replacement, maintenance, and troubleshooting steps.
Quick answers from the manual
Quick answer
- The Tiger 18R MKII is a professional moving head light. Ensure transport locks are removed before use, mount securely with a safety cable, and use a 120 Ohm terminator at the end of the DMX chain. p. 5, 6, 7
Key actions
- Unlock Pan/Tilt transport locks p. 7
- Mount with safety cable p. 5
- Terminate DMX chain p. 6
First start
- Check mains voltage, unlock transport locks, connect DMX controller. p. 5, 6, 7
Problems and fixes
No response
Check power, cables, and fuse.
p. 8Maintenance and reset
- Clean regularly with dry cloth or low-pressure compressed air. p. 7
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 100-240VAC | Power input | p. 39 |
Where to find it in the PDF
- Safety Instructions p. 4
- DMX Control p. 6
- Gobo Replacement p. 7
- Technical Specifications p. 39
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides instructions for the beamZ Tiger 18R MKII moving head. Key operations include proper rigging, DMX configuration, and routine maintenance.
Safety Instructions
Always read the manual before use. Ensure the unit is installed in a well-ventilated area with at least 50cm of free space. Never look directly into the light beam. Repairs must be performed by a qualified technician.

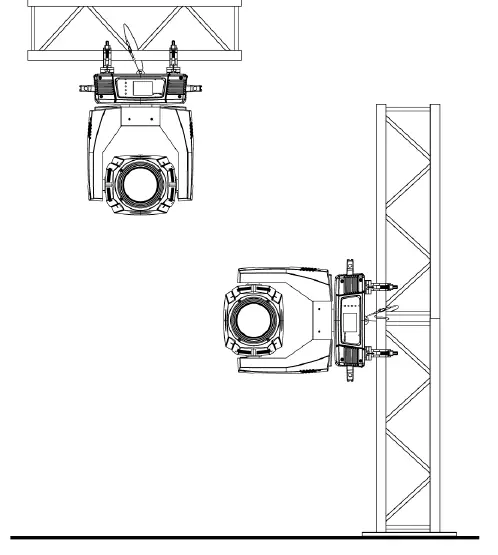

Installation and Rigging
The unit can be set on a stable surface or mounted to a truss. Use certified clamps and omega brackets. For mounting heights over 100cm, a safety cable is mandatory.

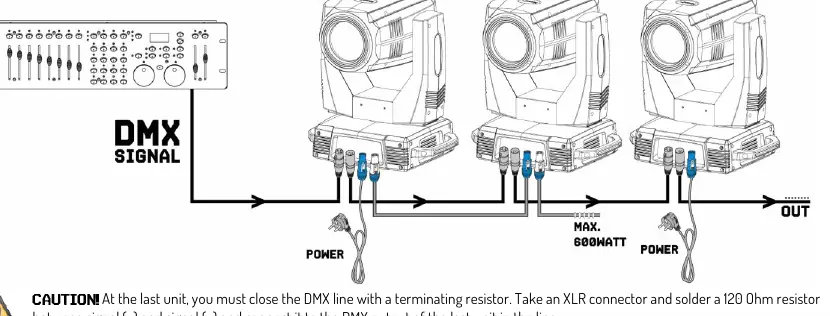

DMX512 and RDM Control
Connect the DMX controller to the first unit and daisy-chain subsequent units. The last unit in the chain must be terminated with a 120 Ohm resistor.

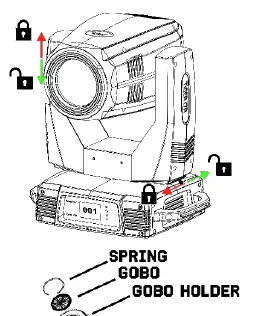

Transport Security
The unit features Pan/Tilt locks to prevent damage during transport. These must be unlocked before operation.
Gobo Replacement
Turn off and cool the unit before replacing gobos. Ensure replacement gobos match the standard size (24.8mm OD, 21mm ID).
Cleaning and Maintenance
Regularly clean the unit to prevent dust buildup, which affects cooling and light output. Use a dry cloth or low-pressure compressed air. Do not use solvents.
Troubleshooting
If the unit does not respond, check power, cables, and the fuse. If the light cuts out, ensure proper ventilation and cooling.
Manufacturer information
beamZ
Practical help
Common problems
No response from unit
Check power, cables, and fuse.
Light output cuts out intermittently
Allow unit to cool, ensure airflow, clean if necessary.
Before use
- Check for transport damage
- Verify mains voltage
- Unlock Pan/Tilt transport locks
- Ensure 50cm ventilation space
Specs in practice
- Pan movement
- 540°
- Tilt movement
- 270°
Images and diagrams
- Rigging diagram showing omega bracket and safety cable attachment
- DMX connection diagram with terminator resistor
Model compatibility
- Requires 120 Ohm terminator for DMX chain
- Gobo size: 24.8mm OD, 21mm ID, 1.1mm max thickness
