Behringer SF300 Super Fuzz Pedal User Manual
Quick guide for the Behringer SF300 Super Fuzz pedal. Learn how to use the controls, switch between Fuzz 1, Fuzz 2, and Boost modes, install the battery, and connect your instrument.
Table of contents
Quick Guide
The Behringer SF300 Super Fuzz pedal is designed to recreate classic fuzz tones from the 60s and 70s. Note that the unit has no dedicated on/off switch; it activates automatically as soon as an instrument cable is inserted into the IN connector. To preserve battery life, always remove the cable when the pedal is not in use.
Controls and Operation
The pedal features several controls to shape your sound:
- LEVEL: Adjusts the overall output volume.
- TREBLE: Boosts or cuts the high-frequency range.
- BASS: Boosts or cuts the low-frequency range.
- GAIN: Adjusts the amount of distortion.
- MODE Switch: Selects between three distinct effect modes:
- FUZZ 1: Provides a basic fuzz sound with an emphasis on the midrange.
- FUZZ 2: Delivers a full-bodied fuzz sound with scooped mids and sharp harmonics.
- BOOST: The LEVEL control becomes inactive, and the GAIN control adjusts the boost level.
- Footswitch: Activates or deactivates the effect.
- ON/BATT LED: Indicates when the effect is active and serves as a battery level indicator.
Battery Installation
The battery compartment is located underneath the pedal cover. To install or replace the 9V battery (not included):
- Use a ballpoint pen to press the hinges on the pedal cover.
- Remove the pedal cover carefully to avoid scratching the unit.
- Insert or replace the 9V battery.
- Replace the cover.
Specifications
- Connectors: 1/4 inch TS (In and Out).
- Input Impedance: 500 kΩ.
- Output Impedance: 1 kΩ.
- Power Supply: 9V DC, 100 mA regulated (BEHRINGER PSU-SB recommended).
- Power Connector: 2 mm DC jack, negative center.
- Battery Type: 9V type 6LR61.
- Power Consumption: 30 mA.
Safety Instructions
To ensure safe operation, follow these guidelines:
- Do not use the device near water or install it near heat sources.
- Use only authorized attachments and accessories.
- Do not attempt to service the product yourself. Contact qualified service personnel for repairs, especially if the power supply cord or plug is damaged.
Manufacturer information
Behringer
Practical help
Common problems
Pedal does not turn on
The SF300 has no on/off switch. Ensure the instrument cable is fully inserted into the IN connector to activate the unit.
Battery replacement difficulty
Use a ballpoint pen to press the hinges on the pedal cover to release it. Be careful not to scratch the unit during removal.
Before use
- Ensure you have a 9V battery or a compatible 9V DC power supply.
- Check that your instrument cable is a standard 1/4 inch TS cable.
- Verify the pedal is placed on a stable surface away from water or heat sources.
- Ensure the input cable is removed when not in use to extend battery life.
Specs in practice
- Power Supply
- Requires 9V DC, 100mA regulated, negative center.
Images and diagrams

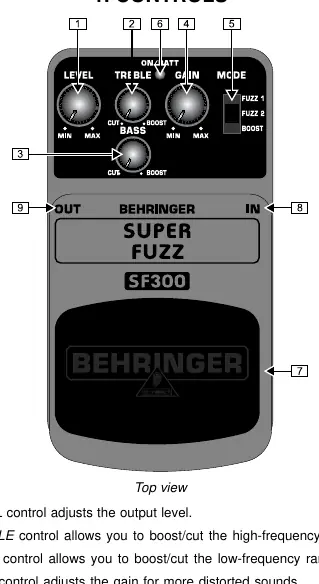

- The top view diagram identifies the Level, Treble, Bass, Gain, and Mode controls.
- The diagram shows the location of the IN and OUT 1/4 inch TS connectors.
Model compatibility
- Requires 9V battery or 9V DC power supply (not included).
- Compatible with standard 1/4 inch TS instrument cables.
