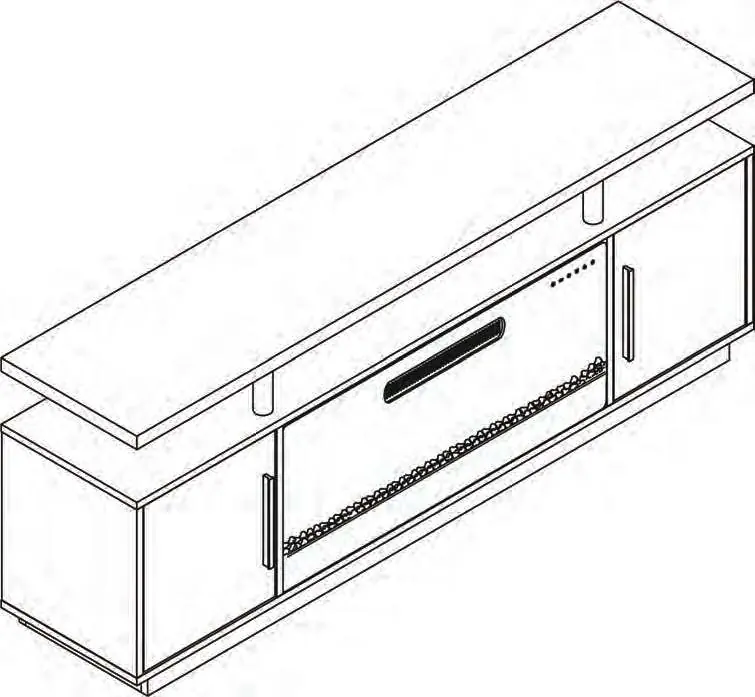

Assembly and Care Guide for Belleze Avenue Entertainment Center 014-HG-41895

Quick Start Guide

This entertainment center requires 2 people for assembly. The estimated assembly time is 90 minutes. Please ensure you have a clear, flat surface (carpet or rug recommended) to prevent scratches during assembly. Keep children and pets away from the assembly area due to small parts and packaging materials.

Package Contents

The package includes various panels (1-15) and hardware (A-Z). Before starting, lay out all components and hardware separately to verify that no parts are missing or damaged. Do not discard packaging until assembly is complete.

Assembly Instructions

Follow the steps in order to build the unit:

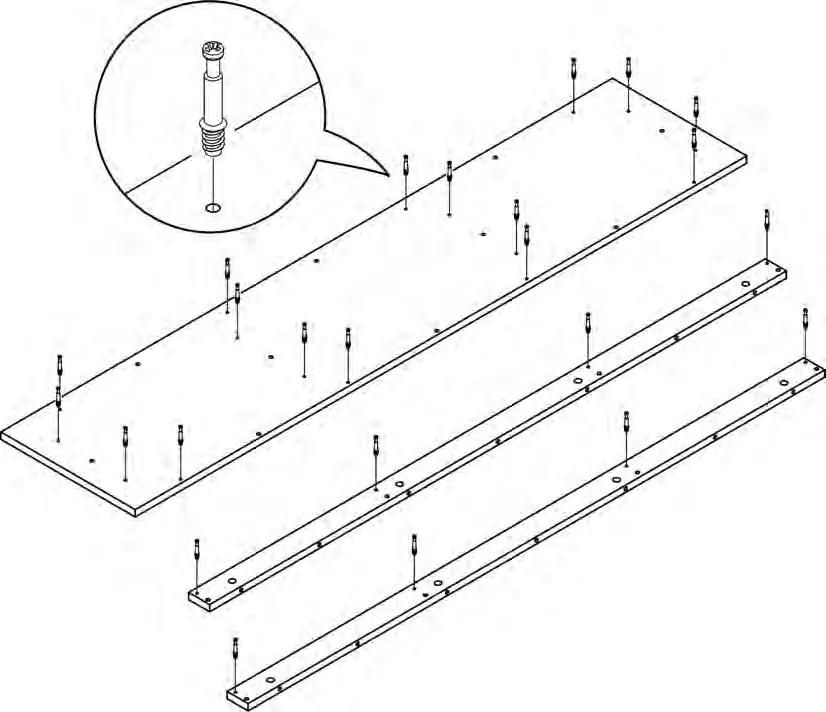

• Base Assembly: Attach cam bolts to the bottom panel (3) and long base panels (14). Insert wood dowels and assemble the base panels (14, 15) together.
• Main Structure: Assemble the side panels (4) and medial panels (5, 6) onto the bottom panel (3). Slide the back panels (8) into the stand.
• Top Section: Attach stud bolts and spacers to the top panel (1). Attach the power hub (T) to the middle panel (2). Assemble the top surround panel (13) to the middle panel (2), then attach the middle panel assembly to the top panel spacers.
• Final Assembly: Secure the middle panel assembly onto the main stand structure. Secure back panels with hardware (Q, R). Insert shelf pegs and place storage shelf panels (11).

Fireplace Installation

Once the stand is assembled, set the fireplace unit from the front of the mantel and center it in the opening. Check the alignment and attach the unit to the mantel by inserting screws (S) through the drilled holes on the mantel. Place decorative crystals/rocks into the fireplace as desired.

Door Adjustment

If the cabinet door clearance is uneven, adjust the hinges:

• Up and down: Loosen the screws on the mounting plate.
• In and out: Loosen the screws on the hinge arm.
• Side to side: Use the front adjustment screw on the hinge.

Safety and Warnings

Warning: Serious or fatal crushing injuries may occur if the furniture tips over. The unit must be permanently fixed to the wall stud using the included anti-tipping device. Only place items on top of the product if they meet the recommended size and weight limits (Max TV weight: 70 lbs / 31.8 kg; Max TV width: 75 inches). This product is designed for flat panel TVs only.

Care and Maintenance

Clean the MDF surface with a lightly dampened cloth. A small amount of mild soap can be used if necessary. Dry the surface immediately after cleaning. Do not use bleach or alcohol. Tighten all bolts and screws within the first 2 weeks of assembly, and check tightness every 2 months.

Support

If you encounter difficulties or missing parts, contact Belleze support at 1-800-682-6376 or email [email protected].
