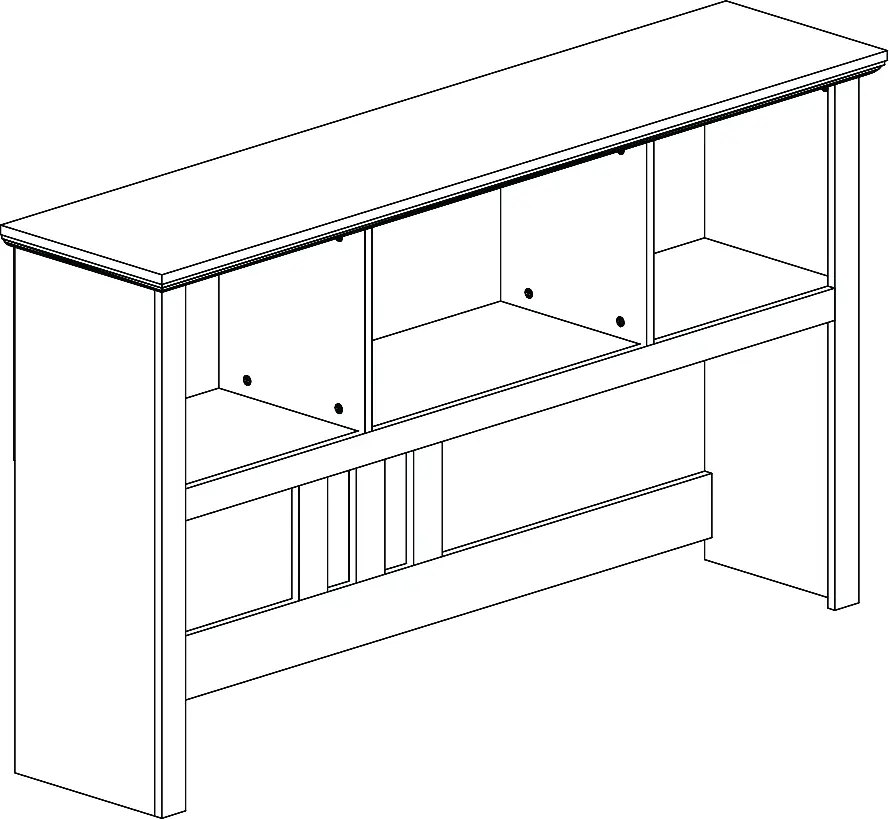

Assembly Guide for Belleze Bonelli 50 Inch Executive Desk with Hutch

Quick guide from the manual

This assembly guide provides instructions for the Belleze Bonelli 50 Inch Executive Desk with Hutch. Assembly requires 2 people and approximately 60 minutes. Please ensure you have a screwdriver and a hammer available, as these tools are not included. Assemble the furniture on a soft surface like a carpet, rug, or empty carton to prevent scratches or damage.

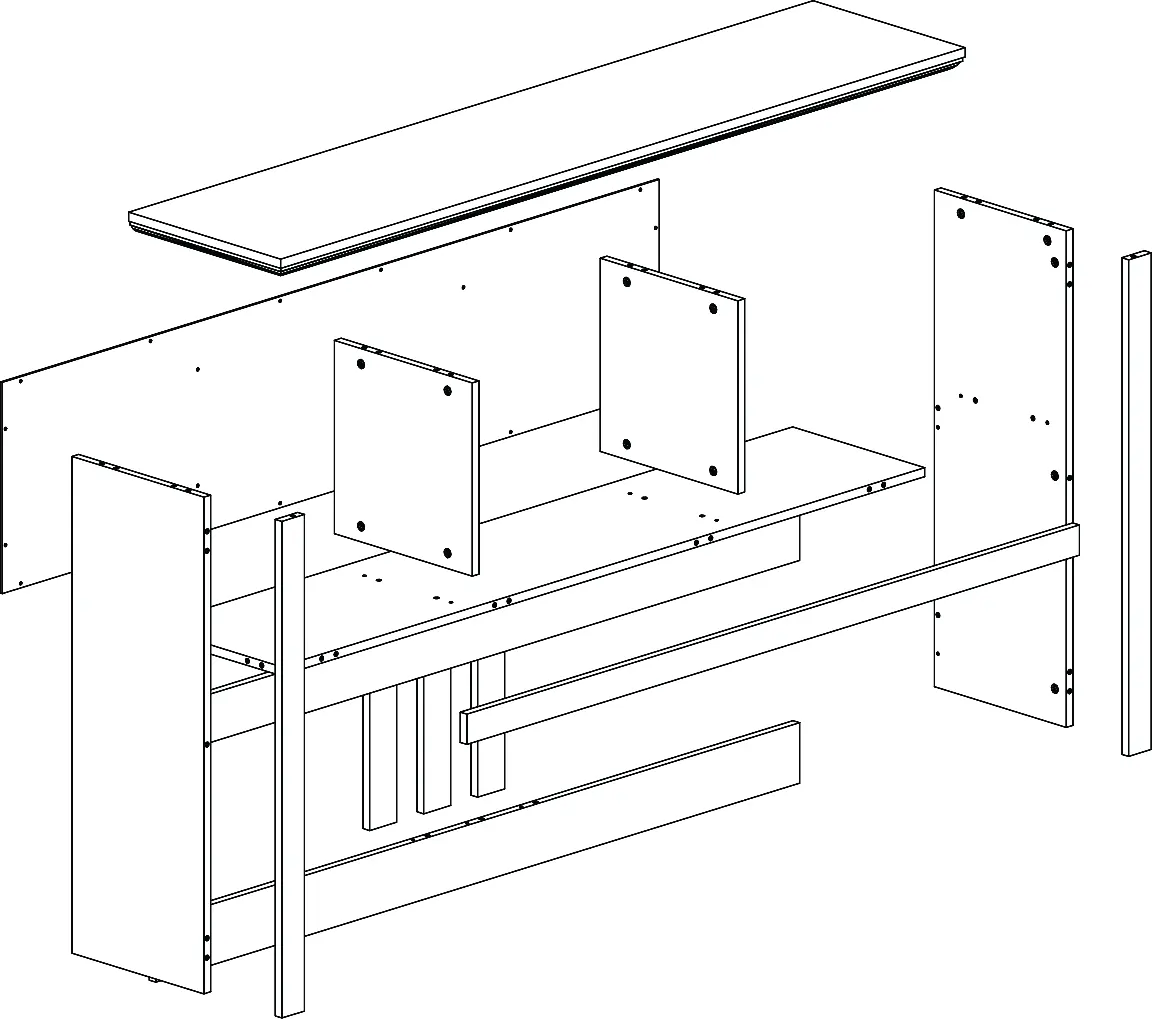

Package Content

The package includes the following components:

• Top Plate
• Shelf Board
• Right and Left Side Plates
• Median Septum (2)
• Rear and Front Shelf support Plates
• Bottom Plate
• Trim Strips (3)
• Left and Right Front Plates
• Back Board

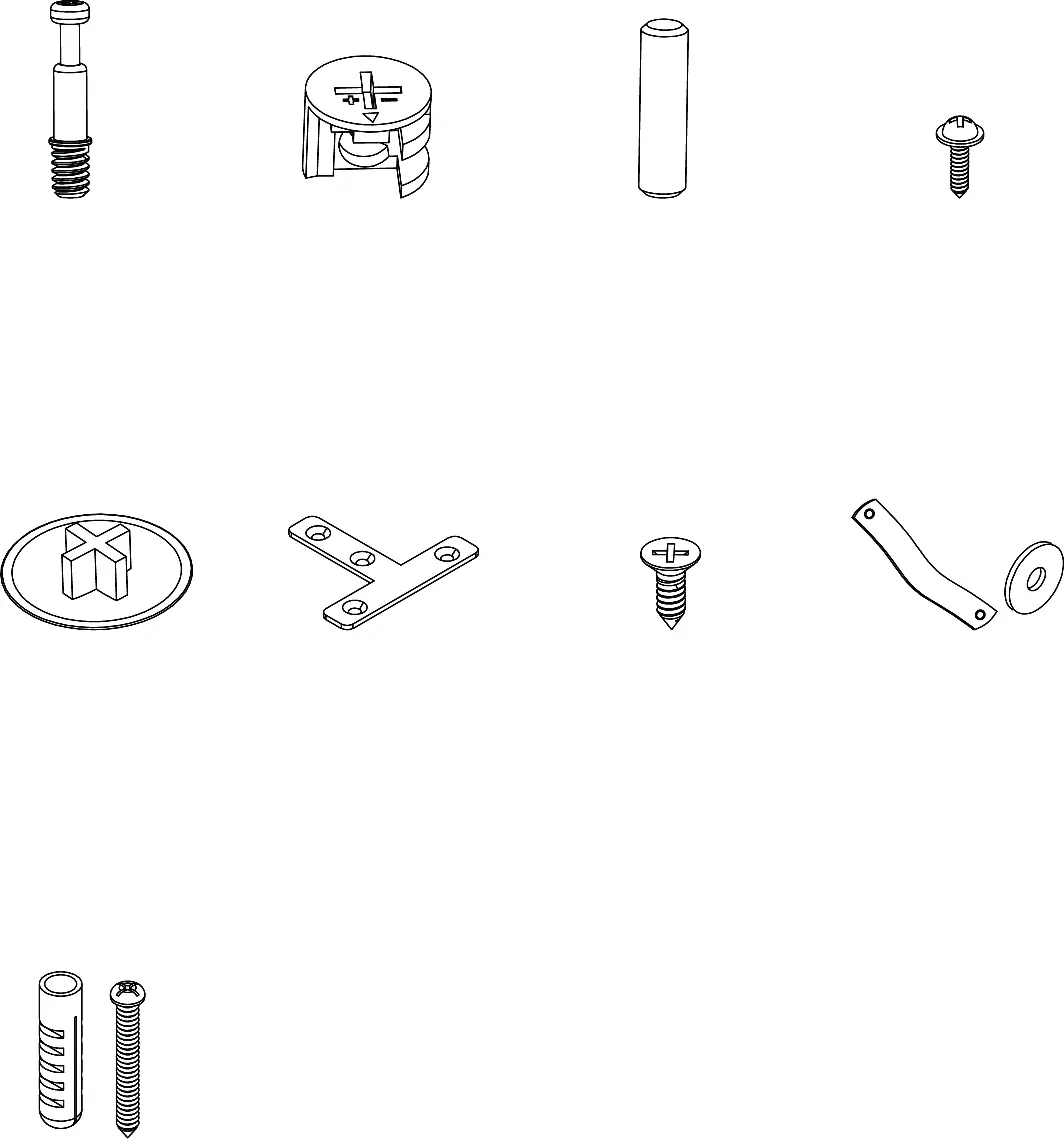

Hardware includes various cam locks, bolts, screws, and dowels required for assembly.

Assembly Instructions

The assembly process involves 20 steps, primarily using cam locks and bolts to secure the panels. Key steps include:

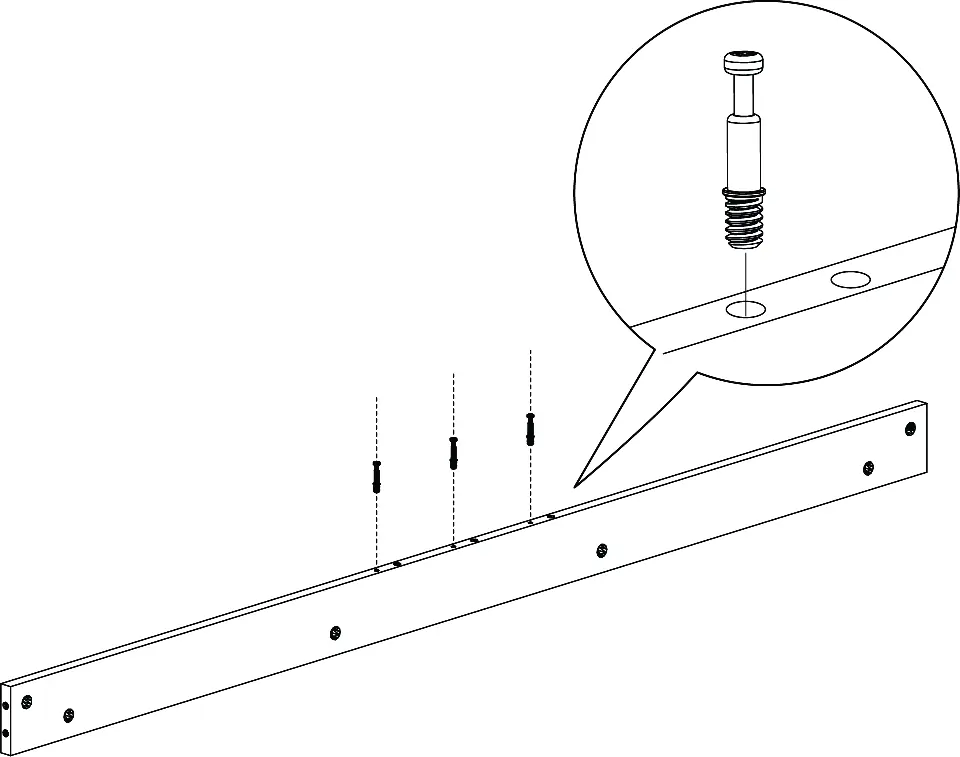

• Steps 1-3: Preparing the bottom plate and rear shelf support plate with hardware.
• Steps 4-6: Assembling the shelf board and attaching support plates.
• Steps 7-12: Constructing the main frame, including side plates and median septums.
• Steps 13-16: Attaching the top plate and finishing the main structure.

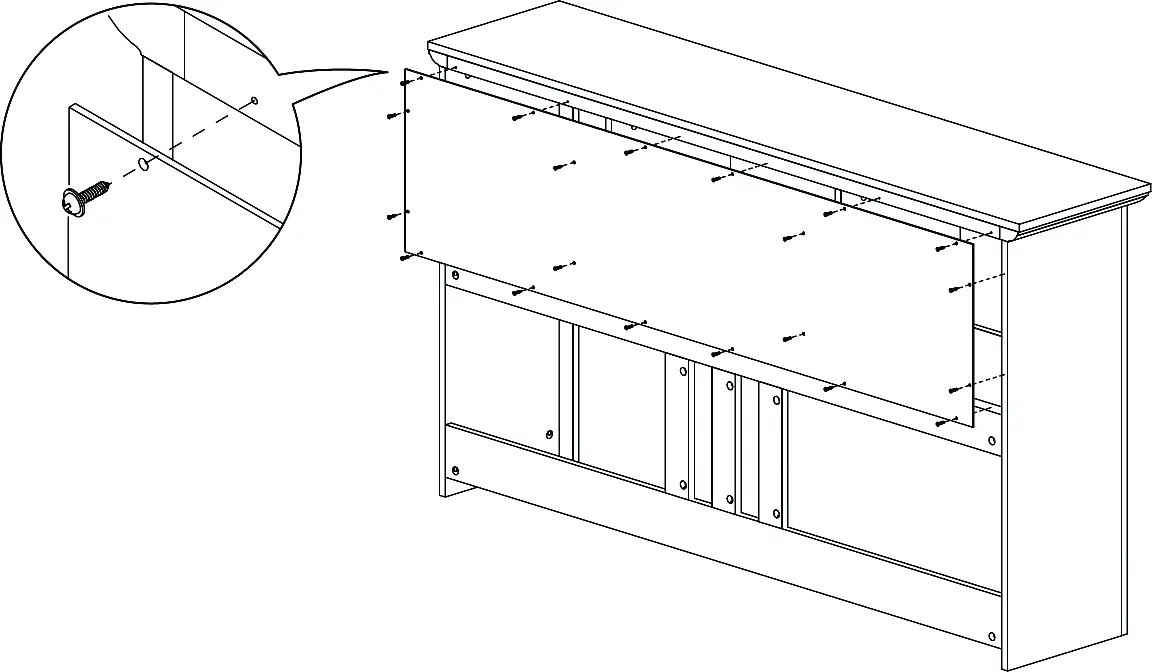

• Steps 17-18: Attaching the back board and connecting the hutch to the desk (014-HG-40747-A).

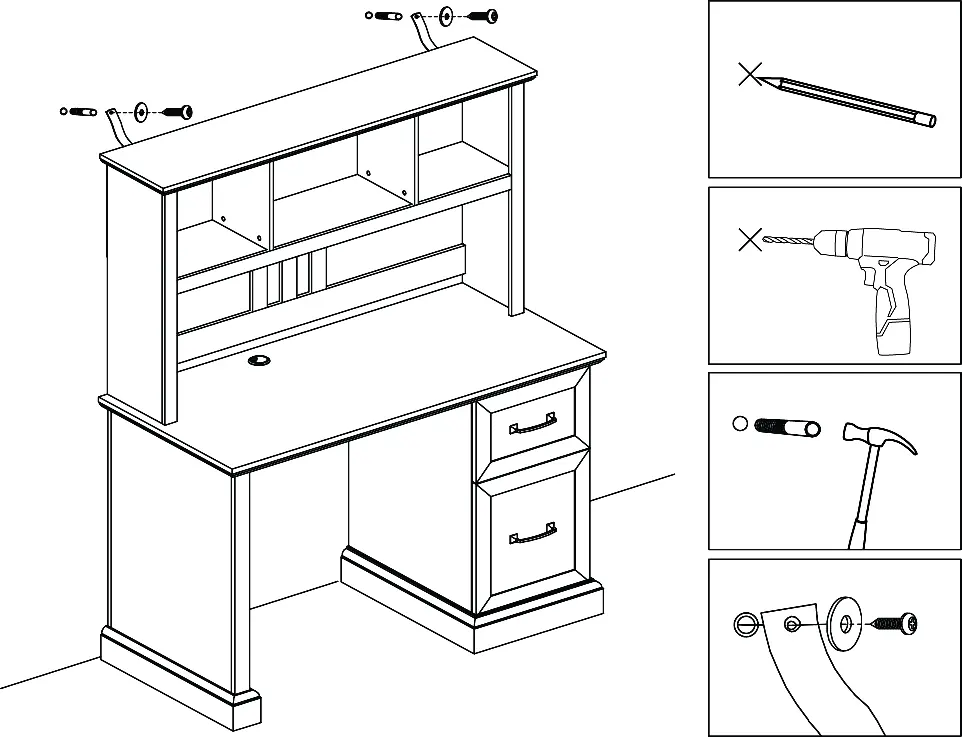

• Steps 19-20: Finalizing the assembly with hardware and securing the unit.

Care and Maintenance

To ensure the longevity of your furniture:

• Tighten all bolts and screws within the first 2 weeks of assembly.
• Check the tightness of all bolts every 2 months and tighten if necessary.
• Clean the surface with a lightly dampened cloth. A small amount of mild soap can be used if necessary.
• Dry the surface immediately after cleaning.
• Warning: Do not use bleach or alcohol-based detergents. Do not apply wood treatment to MDF parts.

Warranty

Belleze products come with a 1-year warranty from the date of delivery. If the product arrives damaged or with missing parts, contact support at 1-800-682-6376 or email [email protected] for replacements.
