User Manual for Belleze Carl Accent Table with Door

Important Information

This guide provides instructions for the assembly and maintenance of the Belleze Carl Accent Table with Door. Please read all instructions carefully before beginning assembly. The estimated assembly time is 90 minutes and requires two people.

Safety Warnings

• Weight Limits: The maximum load for the top of the table is 50 lb, and the maximum load for the shelf is 20 lb.
• Usage: Do not climb on, step on, or place overweighted objects on the product. Items must rest on a support surface without hanging over the edges.
• Assembly Safety: Keep pets and children away from the assembly area due to small components that pose a choking hazard.
• Handling: Assemble on a soft surface like a carpet or rug to prevent scratches. Do not over-tighten hardware to avoid damaging the MDF material.

Package Contents

The package includes various panels (Top, Bottom, Side, Storage, Base, Back, and Cabinet Door) and hardware (cam bolts, dowels, screws, hinges, and tools). Ensure all parts are present before starting assembly.

Assembly Instructions

The assembly process involves 17 steps:

1. Preparation: Attach cam bolts to side panels (3, 4).

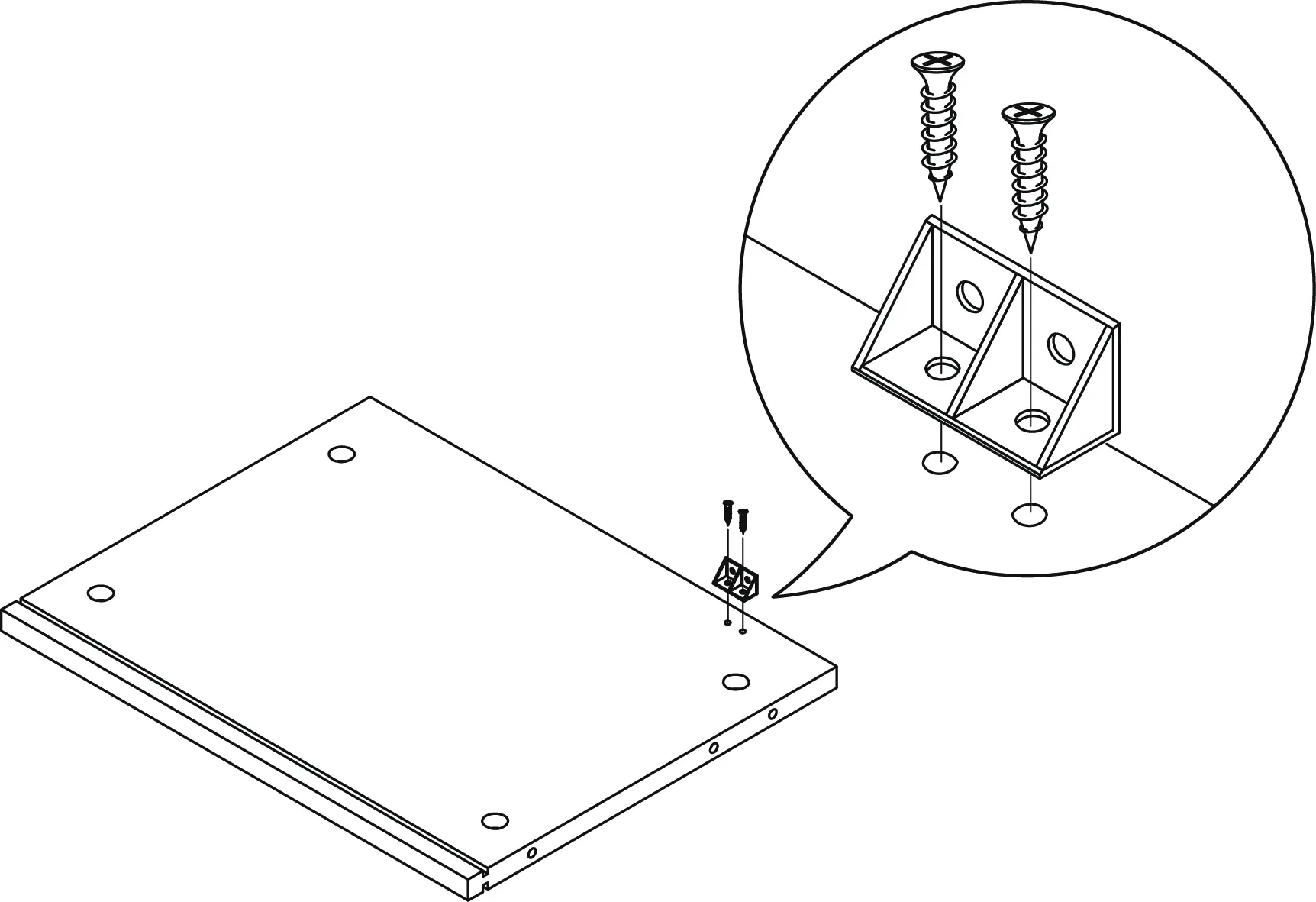

2. Door Stopper: Attach the door stopper to the storage panel (5).
3. Main Structure: Assemble the storage panel between the side panels.

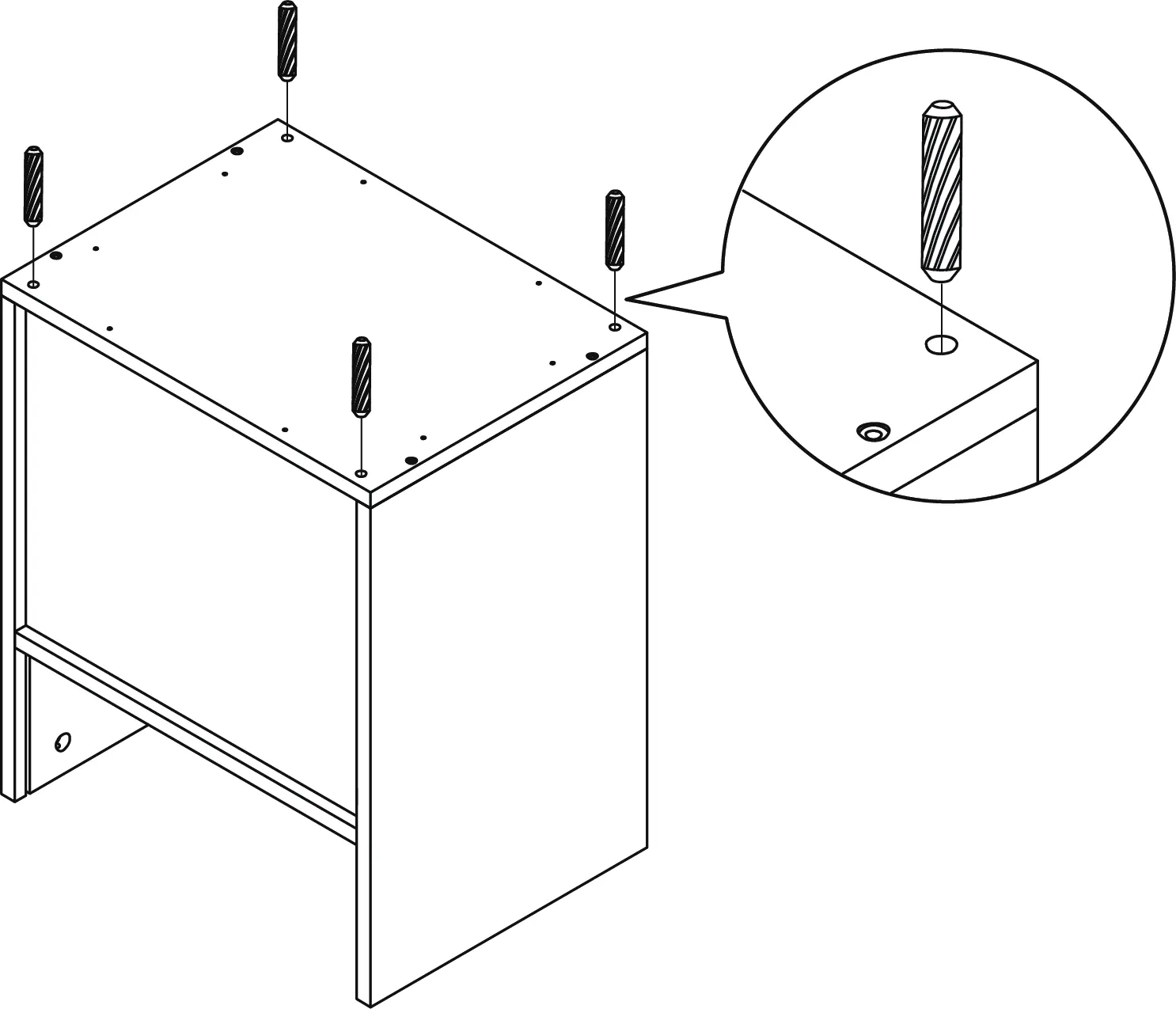

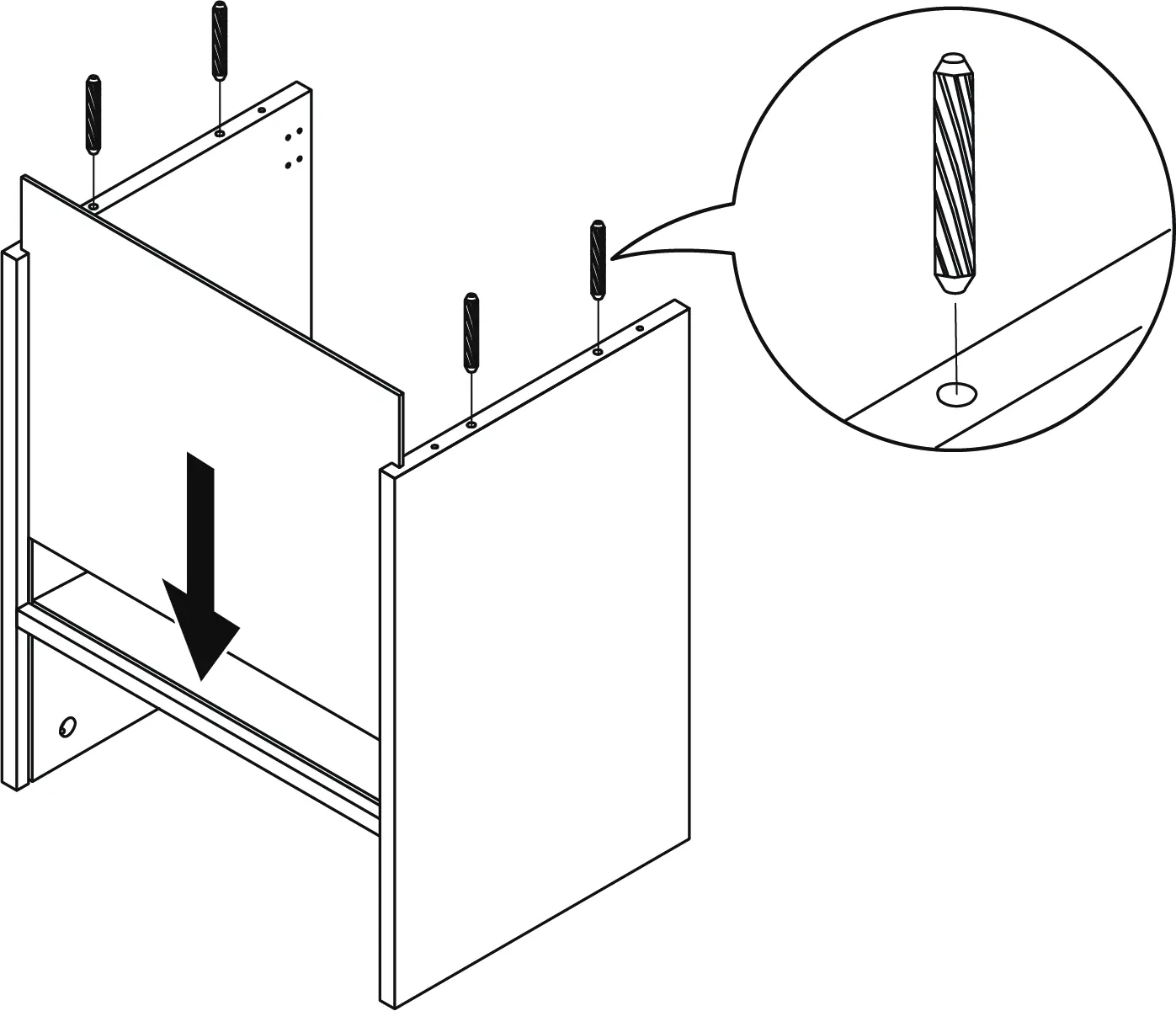

4. Back Panels: Slide in the lower back panel (11) and insert wood dowels.
5. Bottom Panel: Attach the bottom panel (2) to the side panels.
6. Legs: Attach stud bolts to the legs (8, 9).
7. Base Assembly: Attach the short base panels (7) between the legs and add protective pads.
8. Base to Body: Assemble the long base panels (6) between the leg assemblies and attach the base to the bottom panel.
9. Upper Back: Slide in the upper back panel (10).

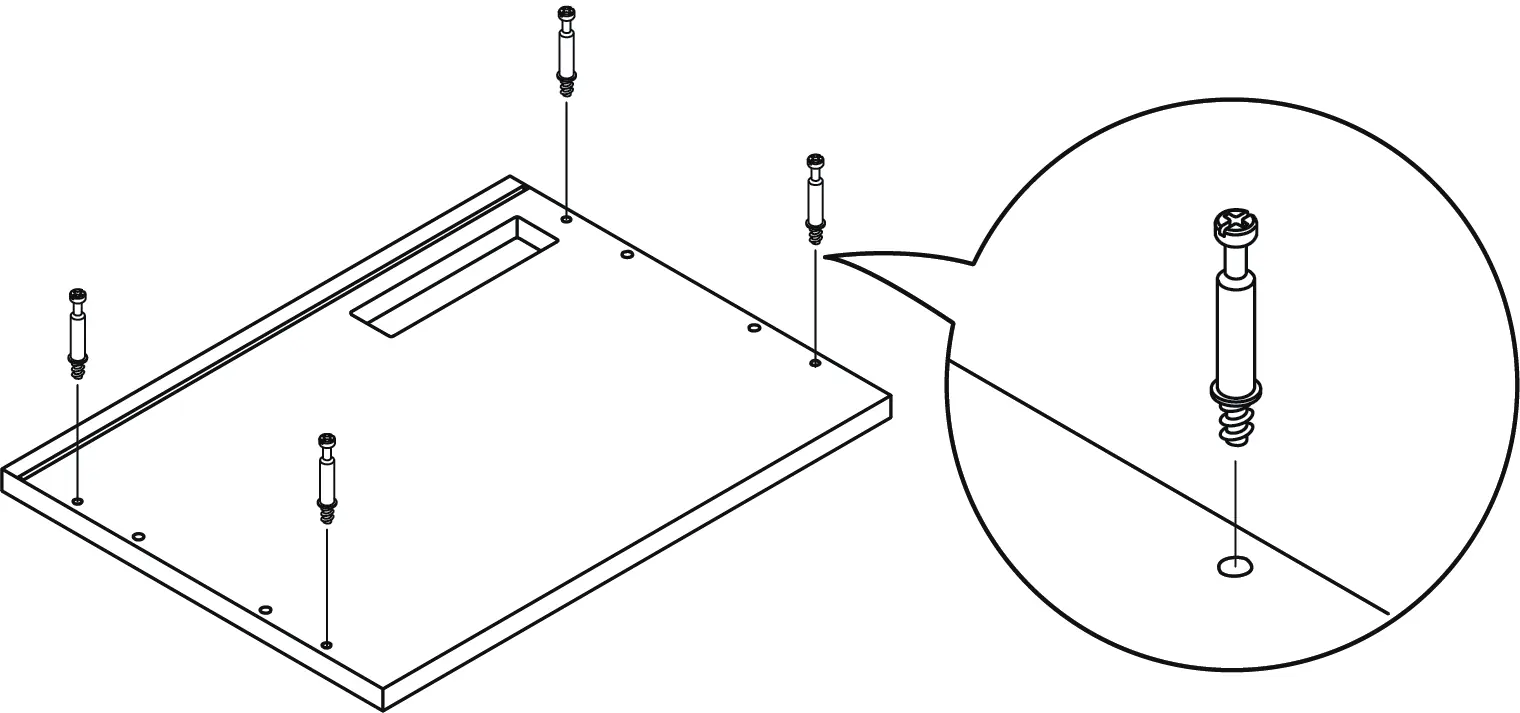

10. Top Panel: Attach the top panel (1) to the assembly.
11. Power Strip: Attach the power strip (K) to the top panel.

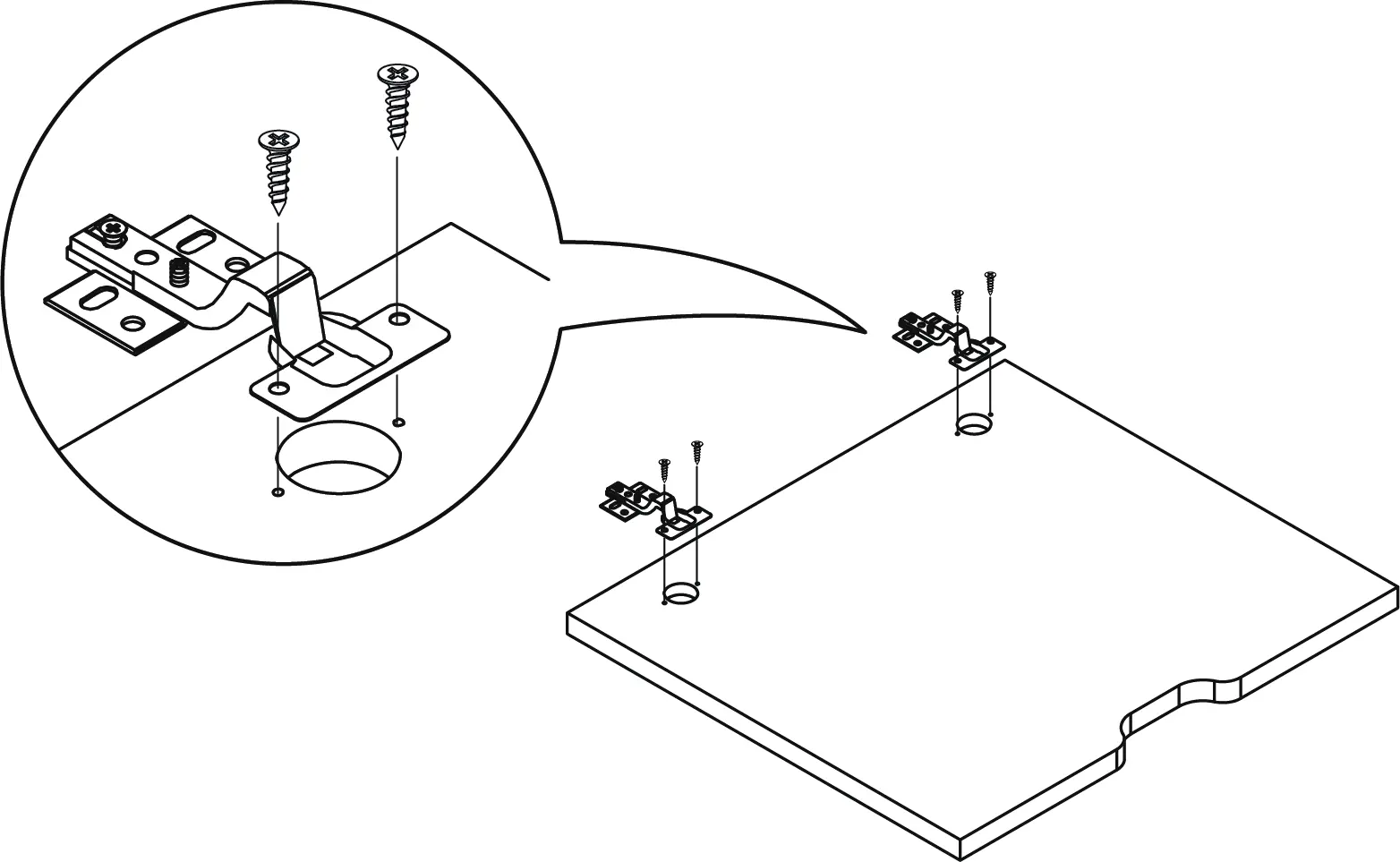

12. Door Installation: Attach hinges to the cabinet door and mount the door to the table.
13. Finalizing: Secure the back panels in place.

Cabinet Door Adjustment

If the door is not aligned, you can adjust it:

• Up and down: Loosen the screws on the mounting plate.
• In and out: Loosen the screws on the hinge arm.
• Side to side: Use the front adjustment screw on the hinge.

Care and Maintenance

• Tightening: Tighten all bolts and screws within the first 2 weeks of assembly. Check the tightness of all bolts every 2 months.
• Cleaning: Clean the MDF surface with a lightly dampened cloth. A small amount of mild soap can be used if necessary. Dry the surface immediately after cleaning.
• Restrictions: Do not use bleach or alcohol to clean the surface. Do not apply wood treatment to MDF parts.

Support

For assistance with missing parts or difficulties, contact Belleze support at 1-800-682-6376 or email [email protected].
