Installation Guide for Belleze Carl Accent Table 014-HG-41308-2

Quick guide from the manual

The Belleze Carl Accent Table requires approximately 120 minutes for assembly. It is highly recommended to have 2 people present for the assembly process. Ensure you have a clear, soft surface (like a carpet or rug) to prevent scratches during assembly.

Assembly Preparation

Before starting, lay out all components and hardware separately on a flat surface. Verify that no parts are missing or damaged. Do not discard packaging until you are certain all necessary parts are present. Hand-tighten all hardware, being careful not to over-tighten to avoid damaging the product.

Assembly Steps

The assembly process consists of 22 steps:

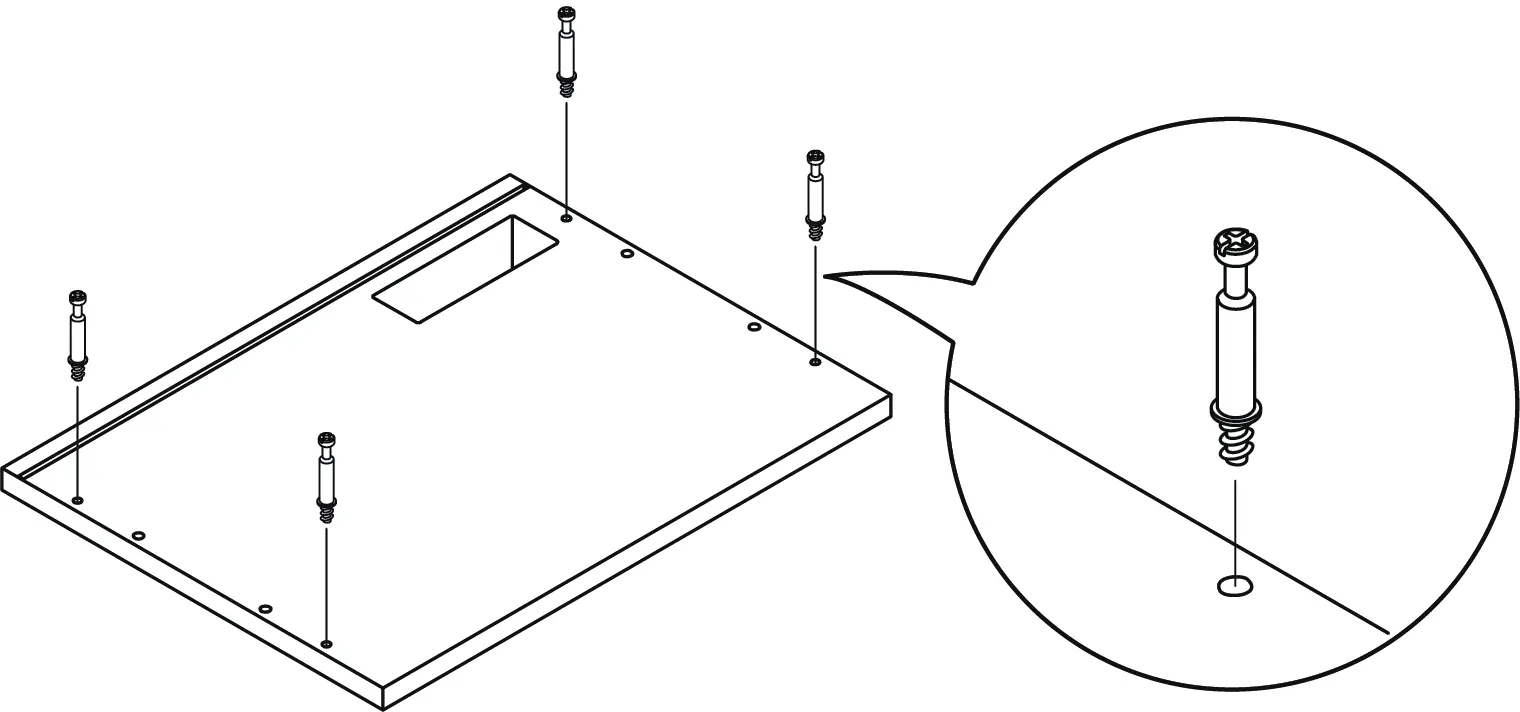

• Steps 1-3: Prepare side panels by attaching cam bolts and slide brackets.

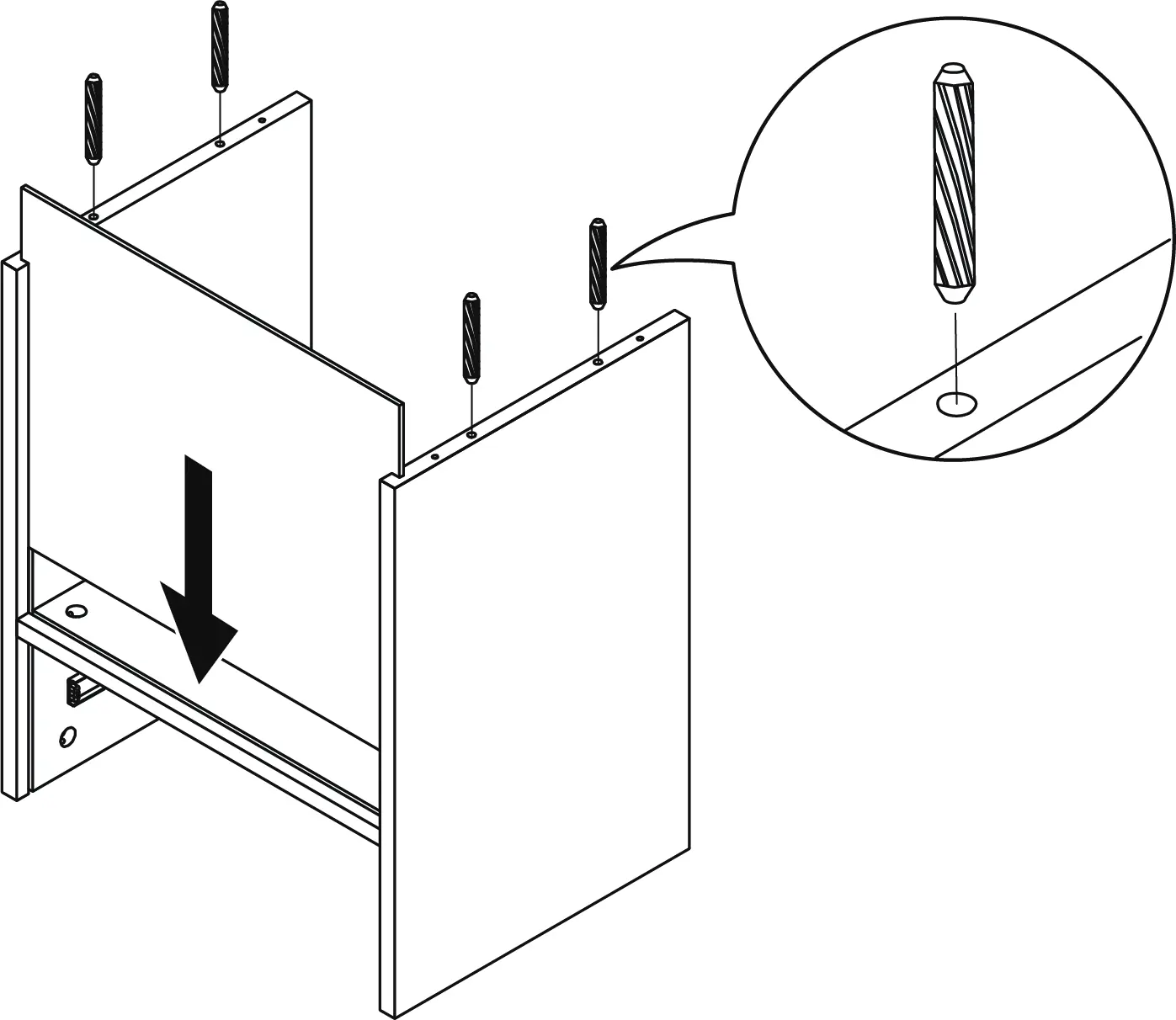

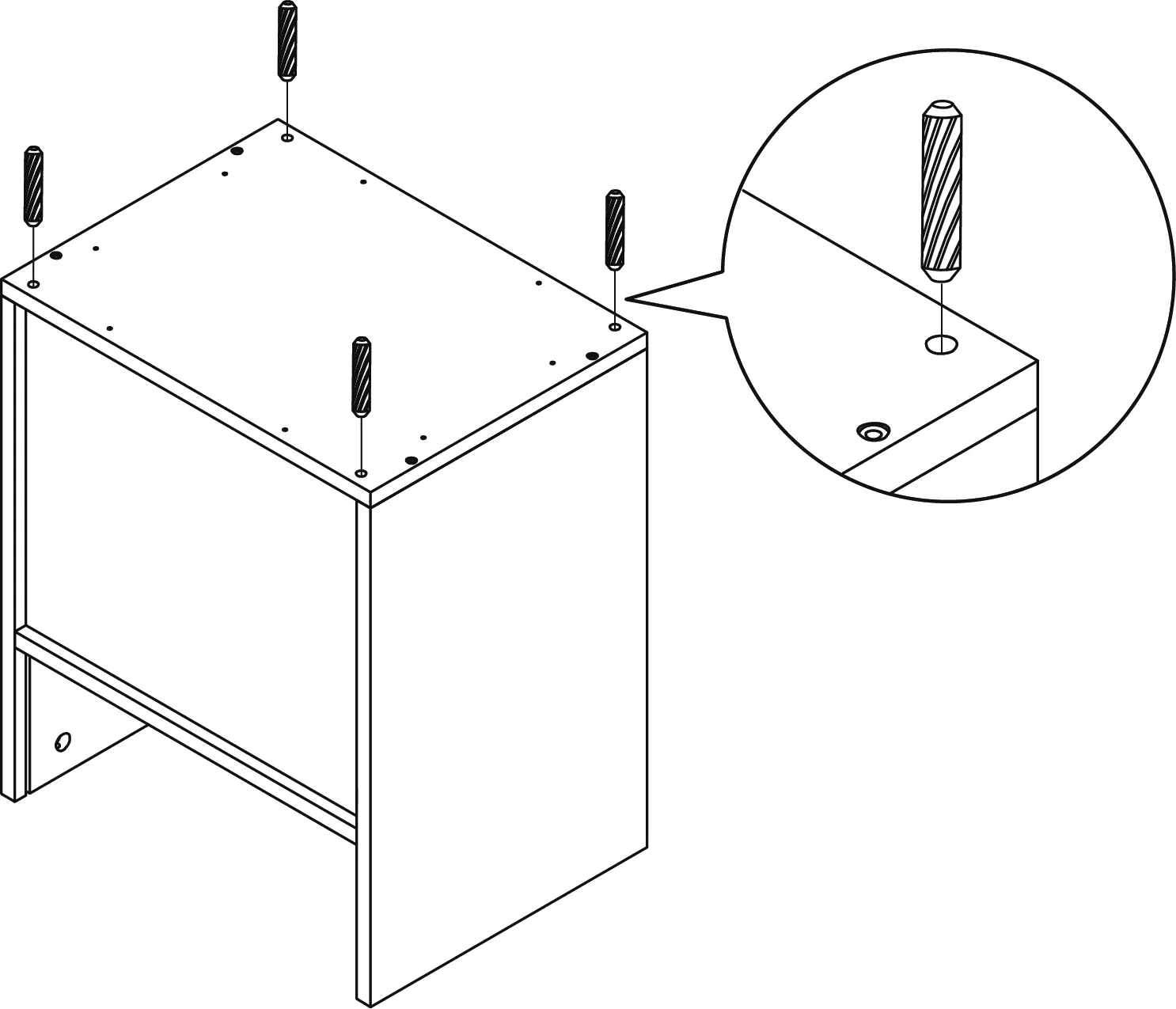

• Steps 4-6: Assemble the storage panel, lower back panel, and bottom panel to the side panels.
• Steps 7-11: Assemble the leg base structure and attach it to the bottom panel.
• Steps 12-14: Attach the upper back panel and the top panel.
• Steps 15-16: Secure back panels and attach the power strip to the top panel.

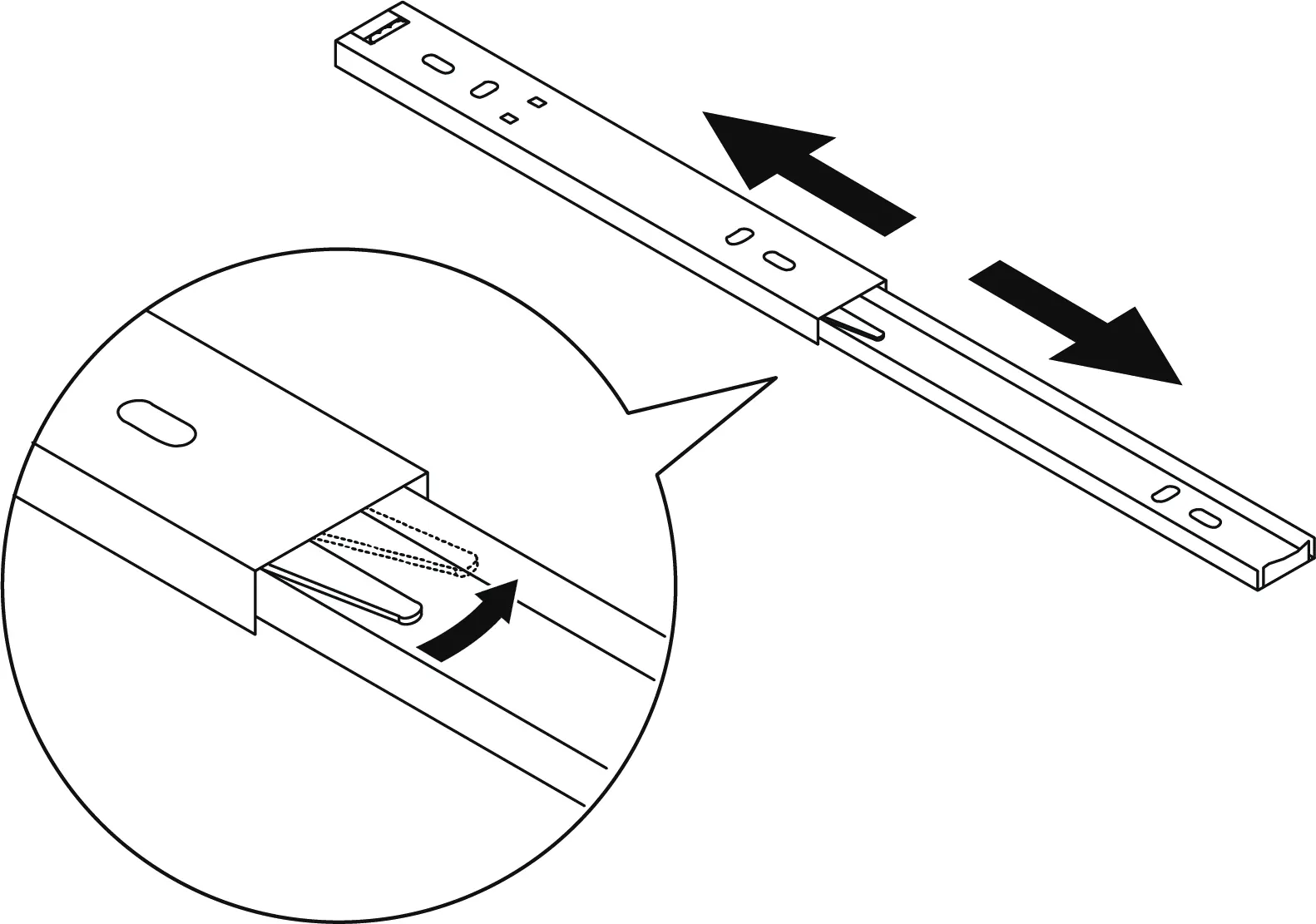

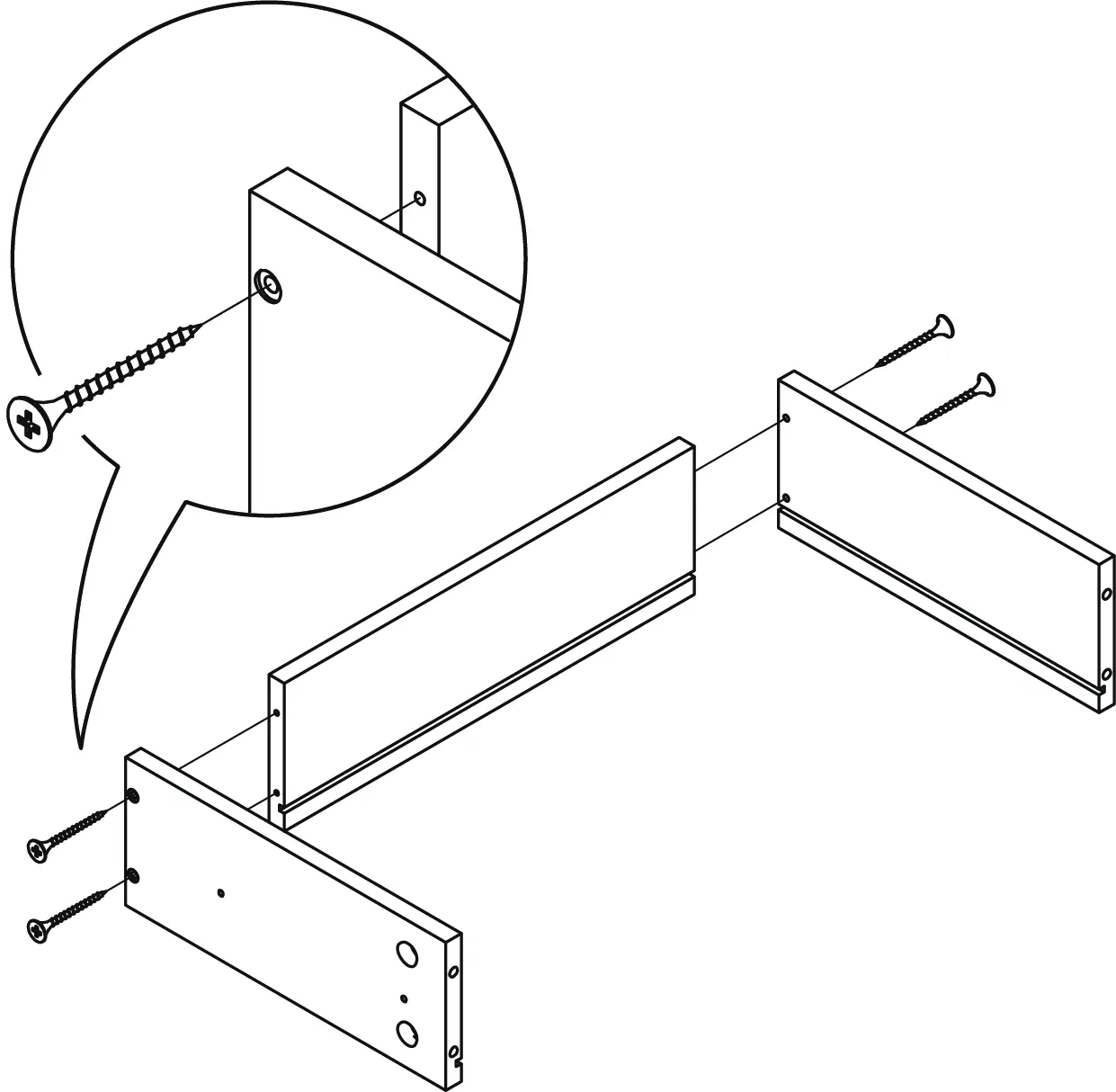

• Steps 17-21: Assemble the drawer components, including the drawer back, bottom, front, and sliders.
• Step 22: Slide the completed drawer into the table.

Safety and Warnings

Adhere to the following weight limitations to ensure safety and prevent damage:

• Top Panel: Maximum load 50 lb.
• Storage Shelf: Maximum load 30 lb.
• Drawer: Maximum load 10 lb.

Do not climb on, step on, or place overweighted objects on the product. Keep small components, plastic bags, and packaging film away from children and pets to avoid choking and suffocation hazards.

Care and Maintenance

To ensure the longevity of your furniture:

• Tighten all bolts and screws again within the first 2 weeks of assembly.
• Check the tightness of all bolts every 2 months and tighten if necessary.
• Clean the surface with a lightly dampened cloth. A small amount of mild soap may be used if necessary.
• Dry the surface immediately after cleaning.
• Do not use bleach or alcohol to clean the surface.
• Do not apply wood treatment on parts made with MDF.

Warranty and Support

Belleze products come with a 1-year warranty from the date of delivery. For missing parts or assistance, contact support at 1-800-682-6376 or email [email protected].
