User Manual for Belleze Carl End Table 014-HG-41304-2

Quick guide from the manual

The Belleze Carl End Table requires approximately 120 minutes to assemble and is designed for two-person assembly. Before starting, ensure you have a flat, protected surface (such as a carpet or rug) to prevent scratches. Verify all parts and hardware are present before beginning the assembly process.

Weight limitations

• Top Panel: 50 lb
• Storage Panel: 20 lb
• Drawer: 10 lb

Assembly instructions

The assembly process involves 21 steps, primarily focusing on attaching cam bolts, slide brackets, and connecting panels. Key steps include:

• Step 1: Attach cam bolts to side panels (3, 4).
• Step 2-3: Detach and attach drawer slide brackets to side panels.
• Step 4-6: Assemble the main frame, including storage and bottom panels.
• Step 7-11: Assemble the base and legs, then attach to the bottom panel.

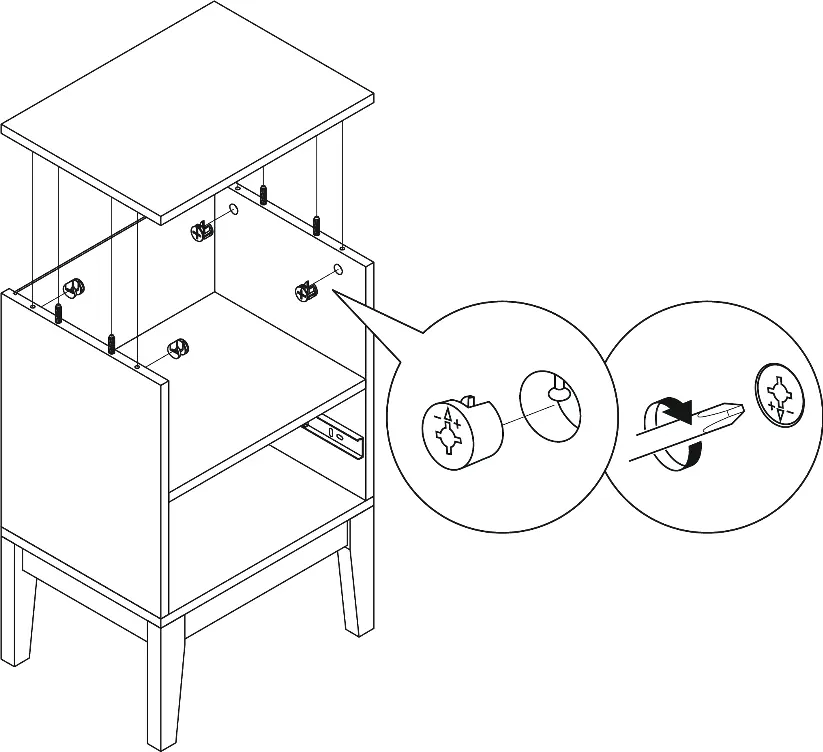

• Step 12-14: Attach the top panel.
• Step 15-20: Assemble the drawer components (front, back, sides, bottom) and attach slide runners.
• Step 21: Slide the completed drawer into the table.

Care and maintenance

To ensure the longevity of your furniture:

• Tighten all bolts and screws within the first 2 weeks of assembly.
• Check the tightness of all bolts every 2 months and tighten if necessary.
• Clean the surface with a lightly dampened cloth. A small amount of mild soap may be used if necessary.
• Dry the surface immediately after cleaning.
• Do not use bleach or alcohol to clean the surface.
• Do not apply wood treatment to MDF parts.

Safety warnings

For your safety, keep pets and children away from the assembly area. Do not climb or step on the product. Only place items on the product that meet the recommended weight limits. Ensure items placed on the product rest on a support surface without hanging over the edges.
