User Manual for Belleze Cooper Metal Shed 014-HG-17061
Quick guide for the Belleze Cooper Metal Shed (014-HG-17061). Includes assembly steps, parts list, safety warnings, and maintenance tips for your outdoor storage shed.
Table of contents
Manual images
Click an image to enlargeImportant Safety and Preparation
Before beginning assembly, check local building codes to determine if building approval is required. Ensure the assembly area is clear of children and pets. The shed must be placed on a leveled base, such as treated timber or concrete, to prevent moisture from entering. If using a concrete pad, ensure it is slanted toward the outer edges to prevent water accumulation. Do not attempt to assemble the shed on a rainy or windy day.
Assembly Requirements
This product requires at least 2 people for assembly. The estimated assembly time is 5 hours. Ensure all parts are present and undamaged before starting. Do not discard packaging until assembly is complete. Hand-tighten all hardware to avoid damaging the product.
Assembly Steps
The assembly process involves the following key stages:

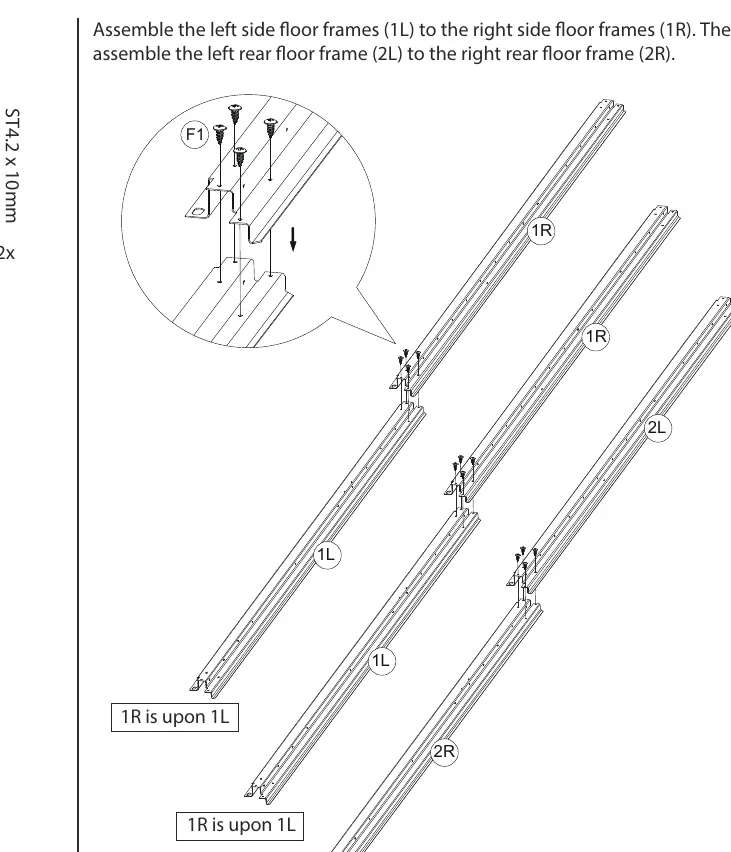

- Floor Frame: Assemble the left and right side floor frames (1L, 1R) and rear floor frames (2L, 2R), then attach the front floor frames (3L, 3R) and ramp (5).
- Wall Panels: Install wall panels (P1, P2, P3) and corner panels (P9) along with wall channels (22L, 22R, 23L, 23R) and angles (9, 10L, 10R, 11).
- Gables and Roof: Assemble the gables (21L, 21R) with braces (B1, B2, B3, B4) and roof beam splices (12). Install roof beams (13, 14, 16, 16-1) and roof panels (P7, P10, P11).
- Roof Finishing: Attach ridge caps (19), roof trims (17L, 17R, 15-1, 15-2), and peak caps (GE).
- Doors: Attach handles to doors (D1, D2), install horizontal door braces (18), and mount the doors to the door slides (G2).

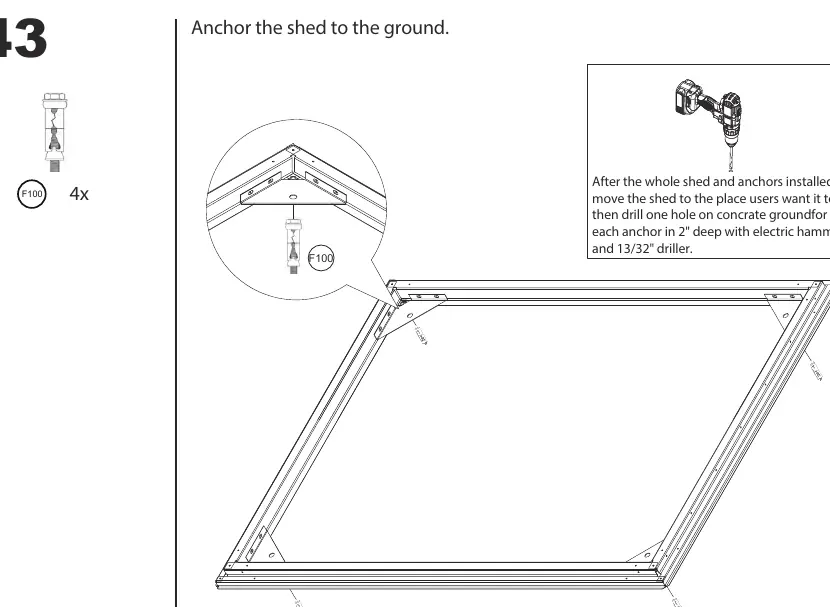

- Anchoring: Install anchors (J1) onto each corner of the base and secure the shed to the ground.
Maintenance and Care
To ensure longevity, perform the following maintenance:
- Tighten all bolts and screws again within the first 2 weeks of assembly.
- Check the tightness of all bolts every 2 months and tighten if necessary.
- Ensure the shed remains securely anchored to the base.
- Trim overhanging trees or objects above the shed.
- Regularly clean leaves, tree branches, and snow off the roof.
Manufacturer information
Belleze Furniture
Practical help
Common problems
Missing parts
Verify all parts against the package contents list. If items are missing, contact support before proceeding.
Difficulty assembling
Ensure at least 2 people are working on the assembly. Do not force parts; check alignment.
Water leakage
Ensure the base is perfectly leveled and slanted toward the outer edges to prevent water backflow.
Before use
- Check local building codes for approval requirements.
- Ensure at least 2 people are available for assembly.
- Verify all parts against the package contents list.
- Prepare a leveled base (treated timber or concrete).
- Choose a dry and calm day for assembly.
Specs in practice
- Estimated assembly time
- 5 hours.
- Base requirement
- Must be a leveled surface (timber or concrete) to prevent moisture entry.
Images and diagrams

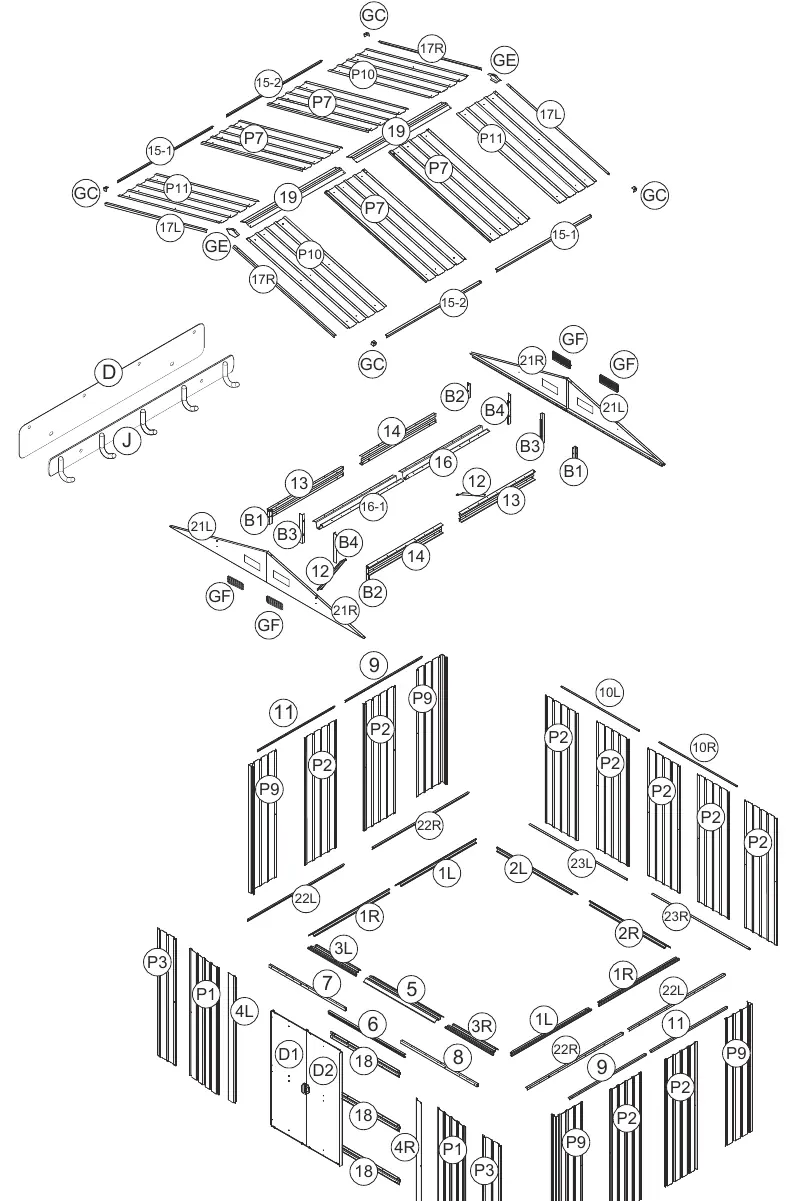

- Exploded view: Shows the connection of all panels and frames.
- Hardware identification: Pages 4-8 detail all screws and parts.
Model compatibility
- Requires a leveled base to prevent moisture entry.
