User Manual for Bosch GRA 18V2-46 Cordless Lawnmower

Quick guide from the manual

This lawnmower is designed for mowing lawns at ground level. It requires two 18V batteries to operate. Always ensure both batteries have the same charge level before use.

Safety

• Keep bystanders away from the working area.
• Keep hands and feet away from the rotating blades.
• Always remove the isolator key and batteries before performing maintenance, cleaning, or transport.
• Do not use the lawnmower in wet grass or during bad weather (e.g., risk of lightning).

Operation

Inserting Batteries: Insert two charged batteries into the battery port until they lock in place. Ensure both batteries have the same charge level.

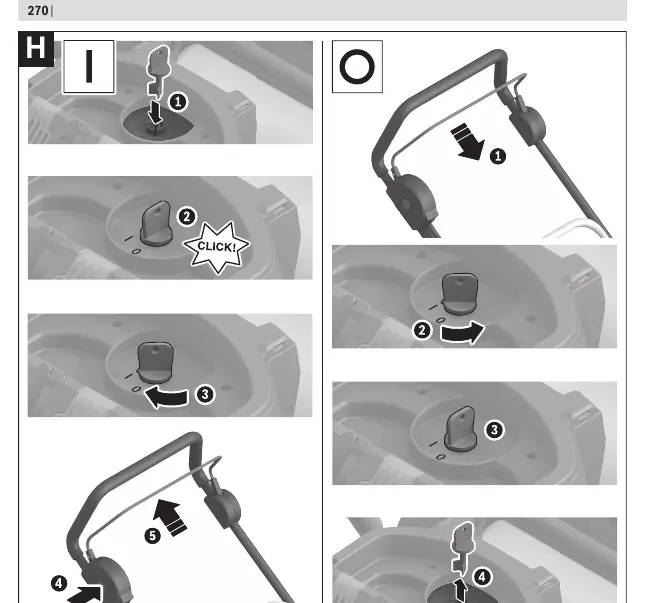

Starting: Insert the isolator key, then switch on the motor.

Mulching: Remove the grass bag and insert the mulch adapter into the ejection chute. Close the ejection flap.

Maintenance

• Keep the product and ventilation slots clean.
• Do not spray the product with water or immerse it in water.

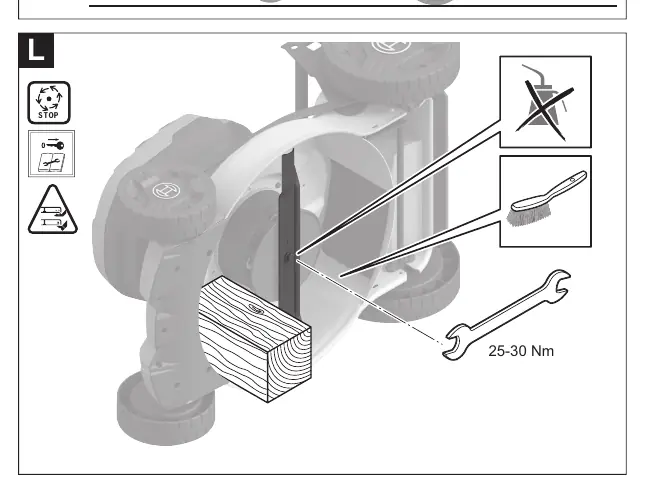

• Regularly check the blade and blade assembly for wear or damage.
• Tighten blade nut/bolt to 25-30 Nm if loose.

Troubleshooting

If the motor does not start, check if the batteries are charged, the isolator key is inserted correctly, or if the motor protector has activated (let the motor cool down and increase cutting height).
