The Bosch GAL 18V-160 C Professional is an intelligent battery charger designed for Bosch Li-Ion batteries (14.4V - 18V). It features Active Air Cooling, Bluetooth connectivity (with optional module), and multiple charging modes to optimize battery life and charging speed.
Device description
The charger includes a charging slot, a Power Boost button for rapid charging, and LED indicators for battery charge status, temperature/error monitoring, and Bluetooth connection status.
Installation and setup
The charger can be used on a desktop or mounted on a wall using two screws (5mm to 6.5mm diameter). Ensure the mains voltage matches the rating plate. If using the Bluetooth Low Energy Module, ensure it is correctly inserted and locked.
Charging process
Charging begins automatically when the battery is inserted into the slot. The charger detects battery temperature and voltage to apply the optimal charging current.
- Power Boost mode: Charges to approx. 50% capacity rapidly.
- Standard mode: Charges to 100% capacity.
- Long-life mode: Charges to approx. 80% capacity to extend battery life.
- Long-term storage mode: Charges to approx. 50% for long-term storage (6+ months).
Maintenance and troubleshooting
Keep the charger clean. If the red temperature/error LED flashes, check if the battery is correctly inserted, contacts are clean, or if the battery/charger is faulty. If the green LED does not light up, check the power connection. If the blue Bluetooth LED does not light up, check the module installation and mobile device connection.
Manufacturer information
Bosch
Practical help
Common problems
Red temperature/error LED flashes
Check if the battery is correctly inserted, clean the battery contacts, or replace the battery if faulty.
Green battery charge LED does not light up
Ensure the mains plug is fully inserted into the socket and check the power supply.
No Bluetooth connection
Ensure the Bluetooth Low Energy Module is correctly installed, Bluetooth is enabled on your mobile device, and the distance between devices is minimized.
Before use
- Check the charger, cable, and plug for damage before every use.
- Ensure the mains voltage matches the charger's rating plate.
- Ensure the battery capacity is at least 1.3 Ah (4 cells).
- Do not operate the charger on flammable surfaces or in flammable environments.
- Ensure ventilation slots are not covered.
Specs in practice
- Charging voltage
- 14.4V - 18V (automatic detection).
- Charging current
- 16A maximum.
- Permitted charging temperature
- 0°C to 45°C.
Images and diagrams
- The charger features a charging slot (2), a Power Boost button (6), and various LED indicators (4, 5, 7) to monitor status.

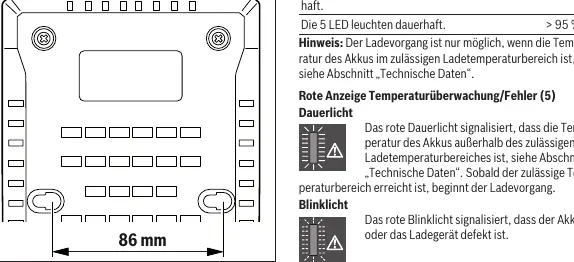

- The wall mounting diagram shows the required spacing (86mm) for the two mounting holes.
Model compatibility
- Compatible with Bosch Li-Ion batteries (14.4V - 18V).
- Bluetooth connectivity requires the Bluetooth Low Energy Module (included with 'Connected' model, optional for others).
