Spare Parts List for Bosch GSB 18V-65 Cordless Percussion Screwdriver
A comprehensive spare parts guide for the Bosch GSB 18V-65 cordless percussion screwdriver, including exploded view diagrams, component identification, and torque specifications for assembly.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document serves as the official spare parts list for the Bosch GSB 18V-65 Cordless Percussion Screwdriver (Type E). It provides detailed exploded view illustrations and a corresponding list of components to assist in identifying parts for repair and maintenance. Please note that this document is intended for identification purposes and does not replace the full user manual for operational safety instructions.
Exploded view and components
The manual provides two main illustrations detailing the assembly of the tool:

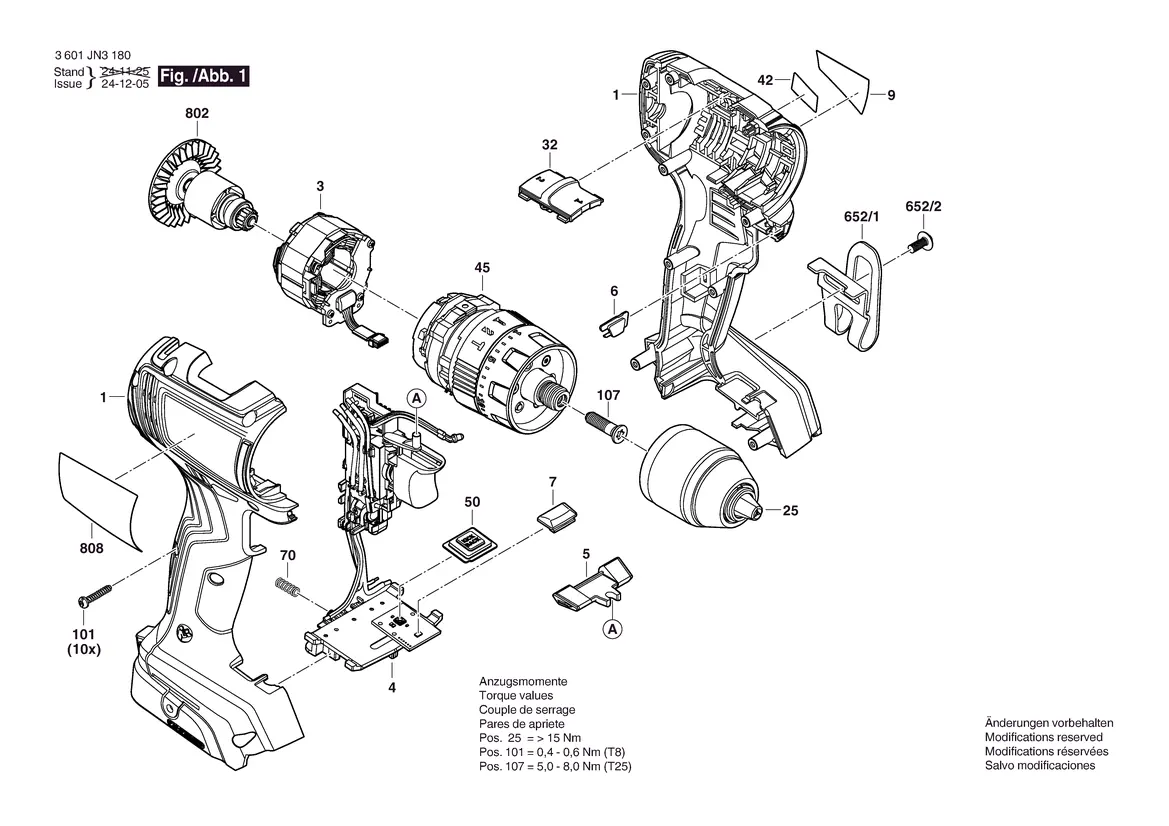

- Illustration 1: Shows the internal components of the main tool housing, including the motor, gear box, electronics module, and keyless chuck.

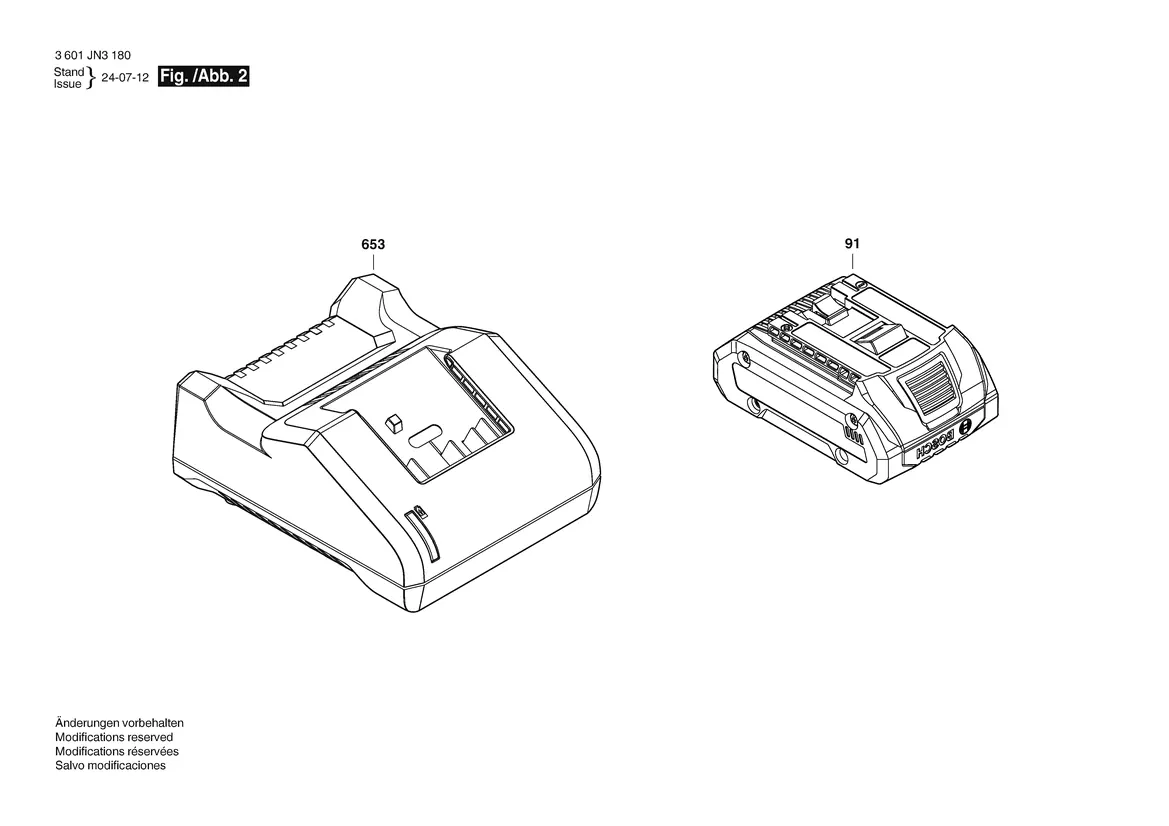

- Illustration 2: Displays the battery pack and the fast charger unit.
Torque specifications
When reassembling the tool, observe the following torque values provided in the documentation:
- Pos. 25 (Keyless Chuck): > 15 Nm
- Pos. 101 (Torx Oval-Head Screw): 0.4 - 0.6 Nm (T8)
- Pos. 107 (Countersunk-Head Screw M6X23): 5.0 - 8.0 Nm (T25)
Spare parts list
The following key components are listed for the GSB 18V-65:
- Housing: 1 605 806 6X1
- Electronics Module: 1 619 PS1 173
- Keyless Chuck: 1 619 PS1 119
- Gear Box: 1 600 A03 BG1
- Battery Pack (GBA 18V 2.0AH): 1 607 A35 0MA
- Fast Charger: 2 607 226 251
Manufacturer information
Bosch
Practical help
Common problems
Loose or damaged keyless chuck
Replace with part 1 619 PS1 119, ensuring a torque of > 15 Nm during installation.
Housing screws loose
Ensure Torx screws (Pos. 101) are tightened to 0.4 - 0.6 Nm using a T8 driver.
Before use
- Verify the battery pack (91) is fully charged.
- Ensure the keyless chuck (25) is securely tightened.
- Check that the changeover lever (6) moves freely.
- Inspect the housing (1) for any cracks or damage.
Specs in practice
- Pos. 107 (M6X23)
- Countersunk-head screw with lefthand threads; requires 5.0 - 8.0 Nm torque.
- Battery Compatibility
- Compatible with GBA 18V 2.0AH battery packs.
Images and diagrams
- Illustration 1 provides an exploded view of the main tool body, identifying 20+ individual internal parts.
- Illustration 2 identifies the external power components: the battery pack and the fast charger.
Model compatibility
- The parts listed are specific to the GSB 18V-65 (Type E) model.
- Ensure the correct battery pack (91) and charger (653) are used as specified in the parts list.
