User Manual for Candy CDI 1L38-02 Dishwasher
Get the most out of your Candy CDI 1L38-02 dishwasher with this comprehensive user guide. Includes installation instructions, loading tips, maintenance advice, and troubleshooting steps.
Quick answers from the manual
Quick answer
- This manual provides installation, operation, and maintenance instructions for the Candy CDI 1L38-02 dishwasher. It covers safety, loading, detergent use, and troubleshooting. p. 1, 116
Key actions
- Load salt p. 8, 122
- Clean filters p. 16, 130
First start
- Fill the salt container with water until it overflows during the first installation. p. 8, 122
Problems and fixes
Machine does not drain
Check for kinks in the drain hose, clean the filter, and ensure the drain height is at least 40cm.
p. 19, 133Maintenance and reset
- Clean filters regularly and check spray arms for blockages. p. 16, 18, 130, 132
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Water pressure | 0.08 - 0.8 MPa | Operating water pressure range | p. 6, 120 |
Where to find it in the PDF
- Installation p. 5, 119
- Troubleshooting p. 19, 133
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides essential instructions for the installation, operation, and maintenance of your Candy CDI 1L38-02 dishwasher. Before using the appliance, ensure it is correctly installed and connected to the water supply and drainage system. Always follow the safety guidelines provided, especially regarding the loading of sharp objects and the use of appropriate detergents.
Installation
The dishwasher is designed for built-in installation. Ensure the appliance is level by adjusting the feet. The water supply should be connected using the new hoses provided. The water pressure must be between 0.08 MPa and 0.8 MPa. The drain hose must be positioned at a minimum height of 40 cm from the floor to ensure proper drainage.
Loading the dishwasher
Proper loading is essential for optimal cleaning results. The upper basket can be adjusted in height to accommodate larger plates. Always place cutlery in the designated basket with handles pointing downwards. Ensure that spray arms can rotate freely after loading. Large plates should be slightly tilted towards the rear.
Detergent and Rinse Aid
Use only detergents specifically designed for dishwashers. The detergent dispenser is located inside the door. For best results, use rinse aid, which is automatically released during the final rinse cycle. You can adjust the rinse aid dosage (1-6) if you notice streaks or spots on your dishes.
Cleaning and Maintenance

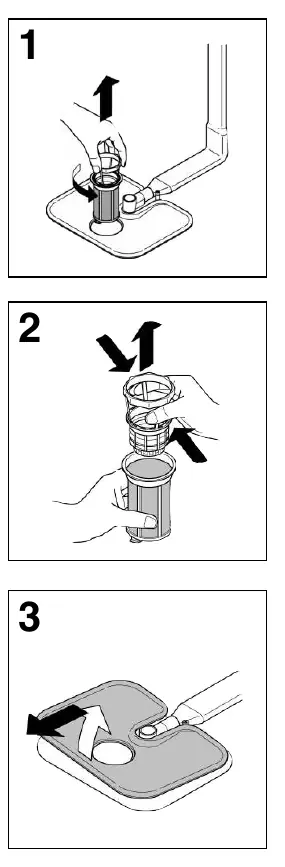

Regular maintenance ensures the longevity of your dishwasher. Inspect and clean the filter system (central container, flat gauze, and microfilter) after each wash. If the dishwasher is not cleaning properly, check the spray arms for blockages and clean them under running water. Clean the exterior with a damp cloth; do not use abrasive cleaners.
Troubleshooting
If the dishwasher fails to operate, check the power supply, door closure, and water tap. If the machine does not drain, check for kinks in the drain hose and ensure the filter is clean. For persistent issues, refer to the troubleshooting table in the manual or contact the technical assistance service.
Manufacturer information
Candy
Practical help
Common problems
Machine does not start
Check if the plug is connected, the power is on, the door is closed, and the O/I button is pressed.
Machine does not drain
Check for kinks in the drain hose, clean the filter, and ensure the drain height is at least 40cm.
Dishes are not clean
Check spray arms for blockages, ensure correct loading, and use the appropriate amount of detergent.
White spots on dishes
Check salt and rinse aid levels and adjust the dosage settings.
Before use
- Ensure the water supply is connected and the tap is open.
- Check the salt level and fill if necessary.
- Ensure the drain hose is correctly positioned (min 40cm height).
- Check that spray arms can rotate freely.
- Load dishes correctly according to the diagrams in the manual.
Specs in practice
- Water Pressure
- Must be between 0.08 MPa and 0.8 MPa for proper operation.
- Water Temperature
- Can be connected to cold or hot water (max 60°C).
- Drain Height
- Must be at least 40cm from the floor to prevent siphoning.
Images and diagrams
- Fig. A: Overview of dishwasher interior components.

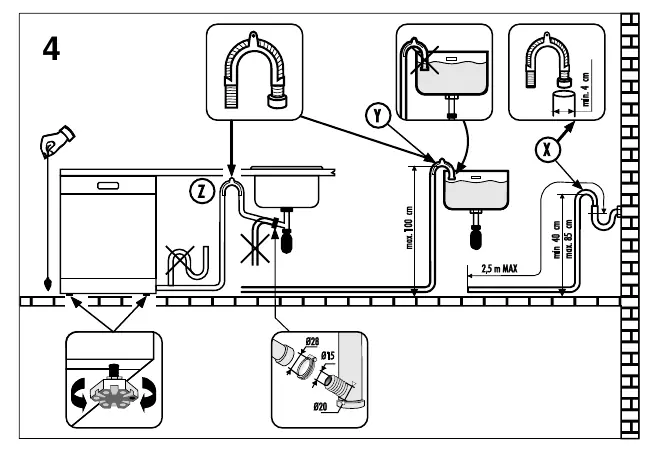

- Fig. 4: Drain hose connection diagram showing correct height and positioning.

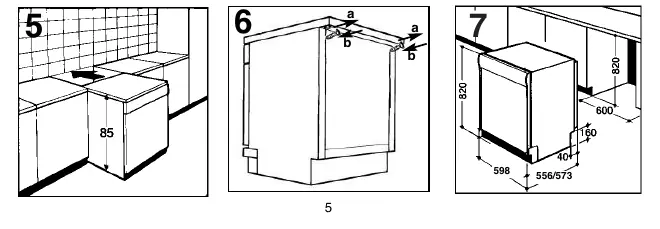

- Fig. 5, 6, 7: Installation steps for built-in configuration.
- Fig. 1, 2, 3: Upper basket adjustment and loading examples.
