Celestron MicroDirect 1080p HD Handheld Digital Microscope User Manual

Product Overview

The Celestron MicroDirect 1080p HD Handheld Digital Microscope is a high-performance, low-magnification digital microscope designed for observing solid objects such as coins, stamps, rocks, electronics, and insects. Unlike traditional microscopes, it uses a camera sensor instead of an eyepiece, allowing you to view magnified images in real-time on a monitor or projector via HDMI, or record directly to a PC.

Setup and Connection

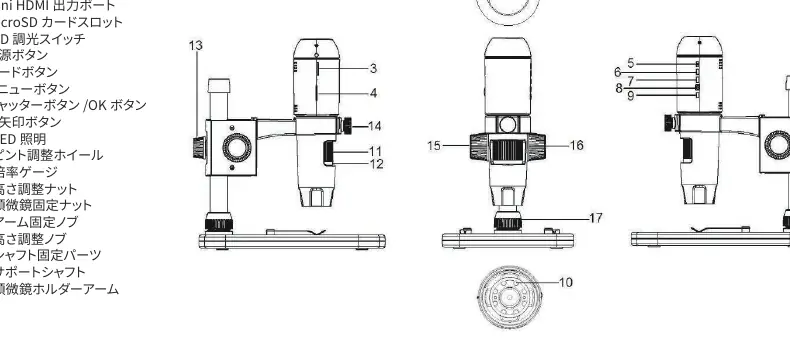

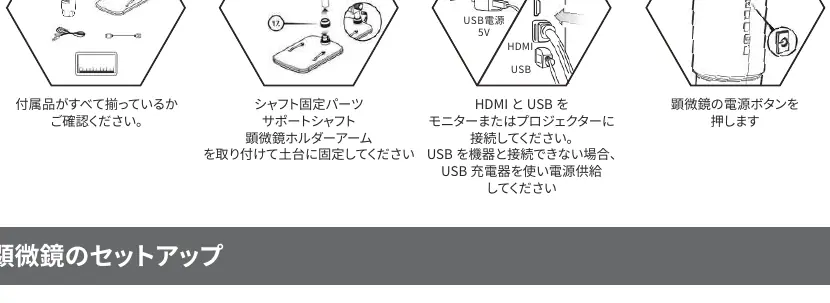

To begin, assemble the microscope stand by attaching the holder arm to the support shaft and securing it to the base. Insert the microscope into the holder and tighten the locking nut. Connect the device to a monitor or projector using the included HDMI cable. For power, connect the USB cable to a USB 2.0 port on your display device or a 5V/1A USB power adapter. Ensure the device is not connected to a computer for power, as this may cause it to be recognized as a storage device instead of a display.

Operation and Imaging

Insert a microSD card (up to 32GB SDHC) into the slot to save images. Adjust the height using the arm and height adjustment knobs, then use the focus wheel to sharpen the image. Press the shutter button to capture photos. You can review captured images by switching to playback mode using the mode button. For PC use, connect the microscope via USB to transfer files or use the included Portable Capture HD software for advanced features.

Software and Advanced Features

The Portable Capture HD software allows for advanced image capture, video recording, and time-lapse photography. It also includes powerful measurement tools. Before performing measurements, you must calibrate the microscope using the included calibration ruler to ensure accuracy. Once calibrated, you can measure lines, radii, diameters, and angles directly on your captured images. You can also add shapes and text annotations to your images for documentation purposes.

Maintenance and Safety

Keep the microscope in a clean, dry place and operate it within the -5°C to 50°C temperature range. Avoid sudden temperature changes to prevent moisture buildup inside the housing. Keep the device away from liquids and do not use it in rain or snow. Clean the exterior with a soft, dry cloth and use an air duster to remove dust from the lens area. Never disassemble or modify the device, as this voids the warranty and poses a risk of electric shock.
