User Manual for CMA CMA-180UC-3 Commercial Dishwasher
Comprehensive user manual for the CMA CMA-180UC-3 commercial under-counter dishwasher. Includes installation guidelines, operational procedures, daily cleaning instructions, technical specifications, and wiring diagrams.
Quick answers from the manual
Quick answer
- The CMA-180UC-3 is a commercial under-counter dishwasher with a 2-minute cycle. It requires a 208/240V dedicated circuit and a 120°F water supply. p. 2, 5
Key actions
- Daily Cleaning p. 9, 10
- Starting a Cycle p. 9, 10
First start
- Installation p. 4, 6
Problems and fixes
Clogged spray arms
Remove by turning bearings counter-clockwise, clean jets, and flush.
p. 10Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Wash Temperature | 160°F | Minimum required wash temperature. | p. 2 |
| Rinse Temperature | 180°F - 195°F | Required rinse temperature range. | p. 2 |
Where to find it in the PDF
- Specifications p. 2
- Installation Guidelines p. 4, 6
- Operating Instructions p. 9, 10
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

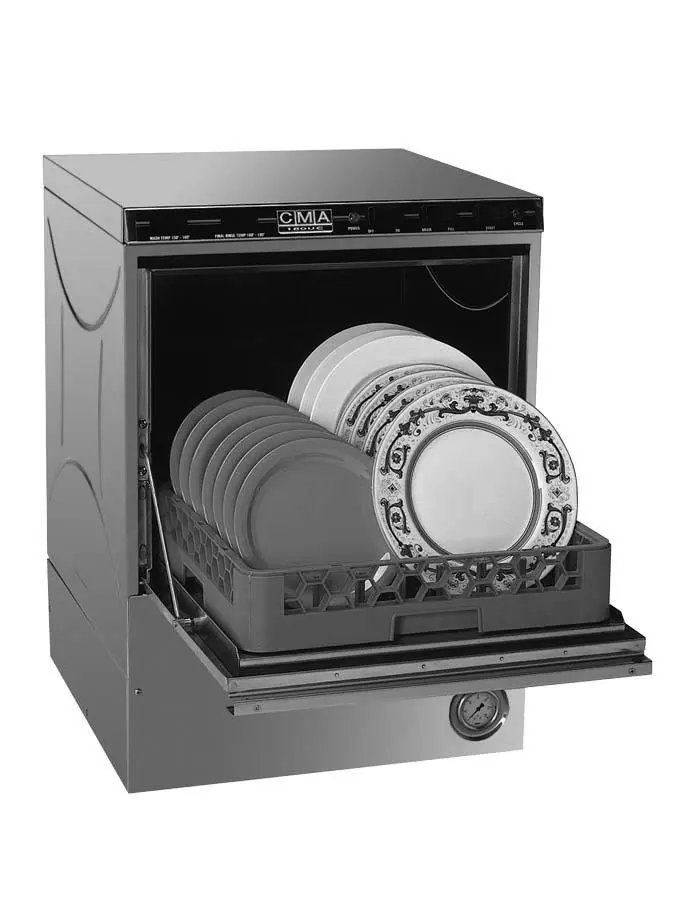

The CMA-180UC-3 is a commercial, single-rack, under-counter dishwasher designed for hot water sanitizing. The machine operates on a 2-minute cycle. Key requirements for operation include a 120°F minimum water supply at 24 PSI and a dedicated 208/240V electrical circuit. Daily maintenance involves cleaning the scrap screen and spray arms to ensure proper performance.
Installation Requirements
Proper installation is critical to maintain the warranty. Ensure the following conditions are met:
- Leveling: The machine must be level side-to-side and front-to-back. Use leveling feet to adjust for uneven floors.
- Electrical: Requires a dedicated 208/240V, 60Hz, single-phase circuit. A minimum 40-amp breaker is recommended. The machine is hard-wired with provided flexible conduit.
- Plumbing: Water supply must be at least 120°F at 24 PSI with a 6 GPM flow rate. The supply line must be at least 1/2 inch. A pressure regulating valve is recommended if pressure exceeds 50 PSI.
- Drain: The standpipe drain height should not exceed 22 inches. Installation with an air gap is recommended.
Operational Cycle
The total cycle time is 2 minutes (120 seconds). The cycle includes:
- Wash Cycle: 94 seconds.
- Rinse Cycle: 11 seconds.
- Safe-T-Temp Feature: The machine will pause the cycle if the booster heater has not reached 180°F, ensuring proper sanitization before the final rinse.
Operating and Cleaning Instructions
Follow these steps for daily operation:
- Startup: Turn the power switch to the ON position. The machine will fill automatically. Allow 10-15 minutes for the machine to heat up to 160°F.
- Operation: Press the START switch to begin the cycle.
- Shutdown: At the end of the day, drain the machine by pressing and holding the DRAIN button until empty. Power off the machine.
- Cleaning: Daily, remove and clean the scrap screen under a faucet. Inspect spray arm jets; if clogged, remove the arms by turning bearings counter-clockwise, clean with a toothpick, and flush with water.
Technical Specifications
- Wash Temperature: 160°F minimum.
- Rinse Temperature: 180°F - 195°F.
- Water Consumption: 0.68 gallons per rack.
- Operating Capacity: 28 racks per hour.
Practical help
Common problems
Machine not heating to required temperatures
Ensure the booster heater is functioning and the Safe-T-Temp feature is not being bypassed. Check that the water supply meets the 120°F minimum requirement.
Spray arms clogged
Remove spray arms by turning bearings counter-clockwise. Use a toothpick to clear jets and flush with water.
Water leaks from door
Ensure the machine is perfectly level side-to-side and front-to-back.
Before use
- Check for concealed shipping damage.
- Verify hot water supply is at least 120°F.
- Ensure incoming water supply line is at least 1/2 inch.
- Confirm water pressure is at least 24 PSI.
- Ensure the scrap screen is in place inside the wash cavity.
- Verify the machine is properly grounded.
Specs in practice
- Wash Tank Heater
- Maintains wash water at a minimum of 160°F.
Images and diagrams
- Page 10 provides a visual guide for daily operation and cleaning steps.

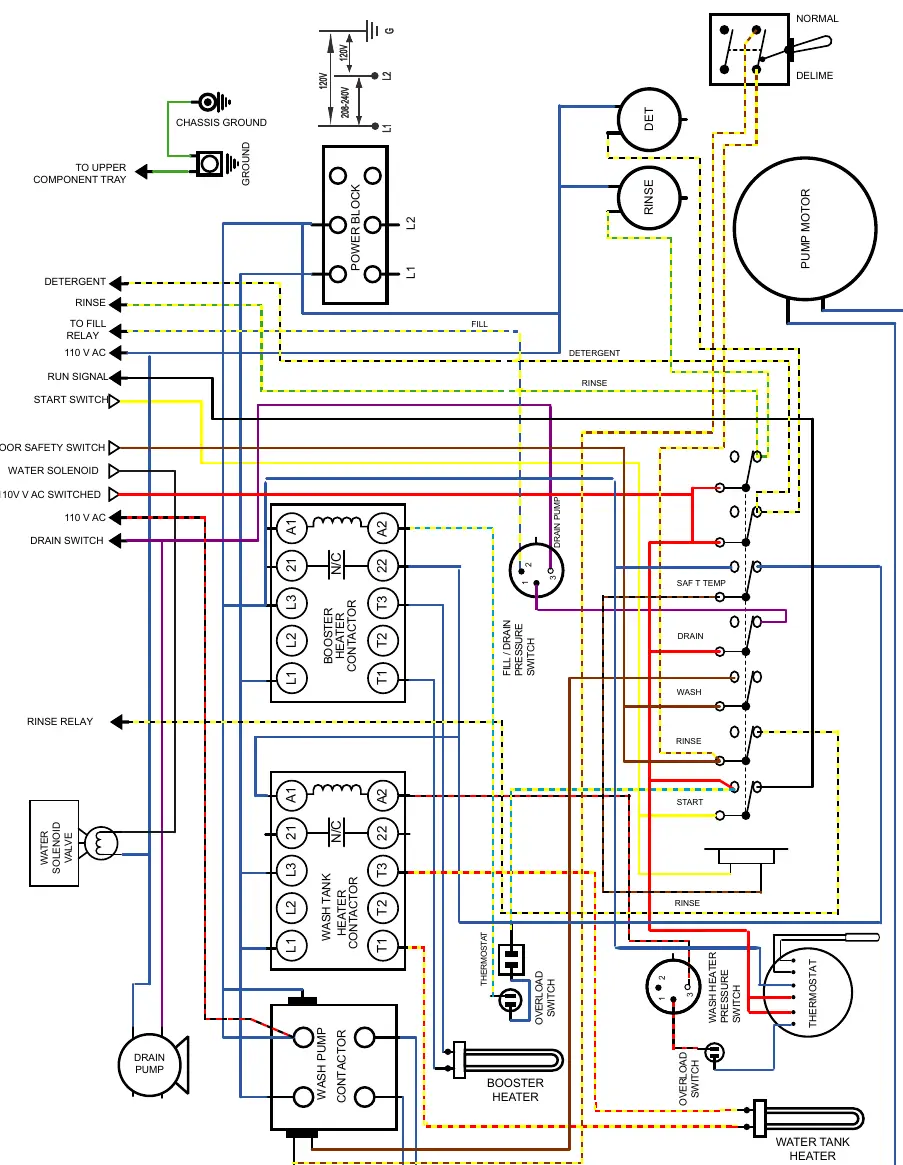

- Pages 11-12 contain detailed electrical wiring diagrams for the power box and control drawer.
Model compatibility
- Use only commercial-grade high-temperature detergents and rinse additives.
- Do not use detergents formulated for residential dishwashers.
