Assembly Instructions for Crystorama 1488-HB-CL-MWP Chandelier
A comprehensive assembly and installation guide for the Crystorama 1488-HB-CL-MWP chandelier, including crystal placement diagrams, component lists, and electrical safety requirements.
Table of contents
Quick guide from the manual
This document provides assembly and installation instructions for the Crystorama 1488-HB-CL-MWP chandelier. The fixture is dry-rated and requires installation by a licensed electrician in accordance with the National Electric Code and local electrical codes. Ensure power is turned off before starting any work.
Installation and Assembly
Follow these steps to assemble and install your fixture:
- Perform a complete inventory of all parts and components before beginning.
- Securely attach the fixture to the outlet box.
- Install bobeches and bulbs.
- Connect the power supply.
- Dress the fixture with crystals, starting with the pocket labeled (A).
- Apply crystal sets in alphabetical order (A through E).

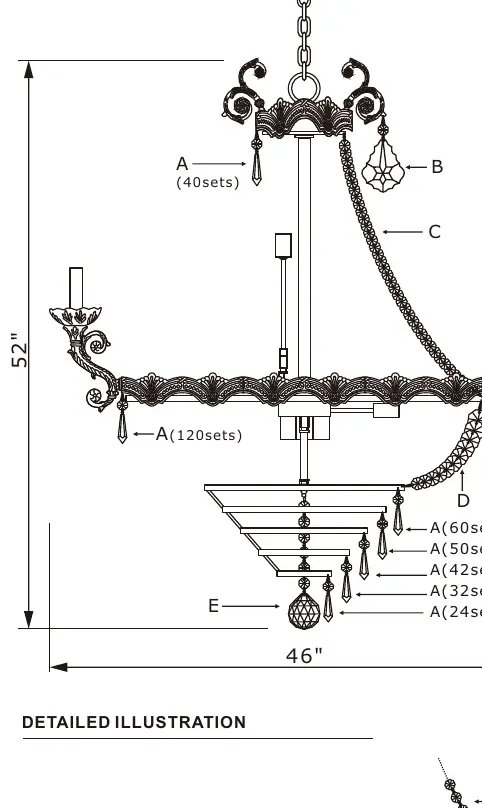

Crystal Sets Configuration
The chandelier requires specific crystal sets to be installed in the following quantities:
- Set A: 368 sets (14mm + AS2-1.5")
- Set B: 24 sets (14mm + AS20-3")
- Set C: 40 sets (38x 14mm)
- Set D: 80 sets (2x 28mm, 2x 26mm, 2x 24mm, 2x 20mm, 2x 18mm, 1x 16mm)
- Set E: 1 piece (6x 14mm + AS8-40mm Ball)
Technical Specifications
The fixture requires 20 Candelabra base bulbs. It is recommended to use 40W bulbs (40W maximum). The use of LED bulbs is recommended for extended life.
Safety Warnings
This product contains lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information, visit www.P65warnings.ca.gov.
Official resources from the manual
Manufacturer information
Crystorama
Practical help
Common problems
Fixture does not light up
Ensure the fixture is correctly wired to the outlet box and that all bulbs are properly seated in the sockets.
Missing crystal sets
Verify the inventory against the crystal set list provided in the manual before starting assembly.
Before use
- Turn off electrical power at the breaker.
- Inventory all parts against the provided component list.
- Ensure you have 20 Candelabra base bulbs (max 40W each).
- Verify the installation location is dry-rated.
- Confirm you have a licensed electrician for the installation.
Images and diagrams
- The manual provides a detailed breakdown of the 5-tier basket assembly.
- Pin hole counts are specified for each banding section to ensure correct crystal placement.
Model compatibility
- Fixture must be installed in accordance with the National Electric Code.
- Not suitable for damp or wet locations.
