User Manual for Cuisinart DCC-2650P1 Coffeemaker and DBM-8P1 Burr Mill
Comprehensive user guide for the Cuisinart DCC-2650P1 12-Cup Programmable Coffeemaker and DBM-8P1 Automatic Burr Mill. Includes setup, brewing instructions, grinding settings, cleaning procedures, and safety guidelines.
Table of contents
Manual images
Click an image to enlargeQuick Guide
This document covers two separate products: the Cuisinart DCC-2650P1 Coffeemaker and the DBM-8P1 Burr Mill. Always read the safety instructions before use. For the coffeemaker, ensure the charcoal filter is prepared and the carafe is in place before brewing. For the grinder, ensure the hopper and grind chamber are properly seated, as a safety feature prevents operation if they are not.
Cuisinart DCC-2650P1 Coffeemaker
Setup and Brewing
- Charcoal Filter: Soak the filter in cold tap water for 15 minutes before first use. Insert it into the holder and snap it closed. Flush with cold water for 10 seconds.
- Programming: Use the Function knob to select CLOCK, PROG (Auto On), or AUTO OFF. Use the Hour and Minute buttons to adjust settings.
- Brewing: Fill the reservoir with water. Place a #4 paper filter or the permanent gold-tone filter in the basket. Add ground coffee (max 15 scoops). Turn the Function knob to BREW and press the On/Off button.
- Brew Pause: Allows you to pour a cup mid-brew. Do not remove the carafe for more than 20 seconds to prevent overflow.
Cleaning and Maintenance
- Daily: Discard used grounds and filter. Wash the carafe and filter basket in warm, soapy water or the top rack of the dishwasher.
- Decalcification: If the Clean light flashes, fill the reservoir with a 1/3 white vinegar and 2/3 water mixture. Press the Clean button and turn the unit on. Run a cycle, then run a cycle of fresh water.

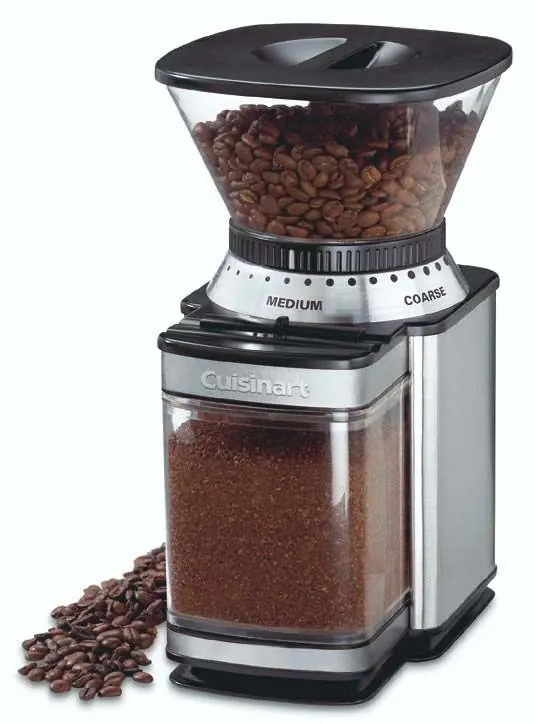

Cuisinart DBM-8P1 Burr Mill
Operation
- Setup: Remove the bean hopper lid and fill with beans (max 8 ounces).
- Settings: Set the Grind Selector (Coarse for French press, Medium for drip, Fine for espresso).
- Grinding: Position the Slide Dial to the desired number of cups (4-18). Press the Power Bar to start. The unit stops automatically.
- Manual Stop: Slide the dial to the OFF position.
Cleaning
- Base: Never immerse the base in water. Wipe with a damp cloth.
- Removable Parts: The bean hopper and grind chamber are dishwasher safe on the top rack only.
Safety Information
- Do not touch hot surfaces on the coffeemaker.
- Do not use the coffeemaker carafe on a range top.
- Do not operate the grinder with foreign objects in the hopper.
- Always unplug appliances before cleaning or when not in use.
Manufacturer information
Cuisinart
Practical help
Common problems
Coffeemaker filter basket overflowing
Ensure you are not using too much coffee (max 15 scoops), too fine a grind, or multiple paper filters.
Coffeemaker not draining during brew cycle
Unplug the unit immediately, wait 10 minutes, then check the filter basket.
Grinder will not start
Ensure the bean hopper and grind chamber are properly locked into place; a safety feature prevents operation otherwise.
Before use
- Soak charcoal water filter for 15 minutes (Coffeemaker).
- Ensure carafe is on the heating plate (Coffeemaker).
- Check that the bean hopper and grind chamber are seated correctly (Grinder).
- Set the grind selector to the desired coarseness (Grinder).
- Flush the system with water before the first pot of coffee.
Specs in practice
- 18-Position Grind Selector
- Allows adjustment from fine (espresso) to coarse (French press) grind.
Images and diagrams
- The coffeemaker control panel allows for programming Auto On/Off times, flavor strength, and carafe temperature.
- The grinder features a slide dial to select the number of cups to grind (4-18).
Model compatibility
- Use only Cuisinart Gold Tone Commercial Style Filter or standard #4 basket paper filters.
- The glass carafe is designed for this coffeemaker only and must not be used on a range top.
