Danfoss 027H7194 Inspection Kit Installation Guide
Installation guide and spare parts list for the Danfoss 027H7194 inspection kit, compatible with ICS, ICM, and ICLX size 125 valves. Includes exploded view diagrams and component specifications.
Table of contents
Quick guide from the manual
This document serves as the official spare parts and assembly reference for the Danfoss Inspection Kit (Code number 027H7194). It provides exploded view diagrams and component specifications necessary for the maintenance and repair of specific Danfoss valve models.
Compatible Valves
The 027H7194 inspection kit is designed for use with the following valve series, specifically in size 125:
- ICS (size 125)
- ICM (size 125)
- ICLX (size 125)
Spare Parts and Assembly

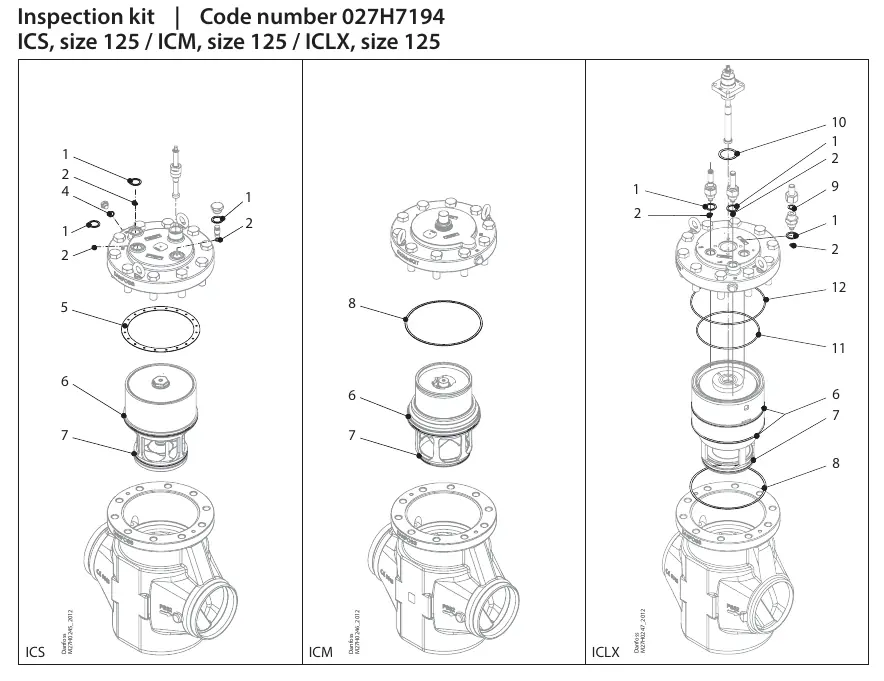

The manual provides detailed exploded view diagrams for the ICS, ICM, and ICLX valves. These diagrams illustrate the correct placement of seals, gaskets, and O-rings. Users should identify the required part number from the diagram and verify the specifications against the provided parts list.
Component Specifications:
- Part 1: Fibre, Ø32.5 mm (Total no. 3)
- Part 2: Ø9 mm (Total no. 3)
- Part 4: Alu., Ø18 mm (Total no. 1)
- Part 5: Fibre, Ø178 mm (Total no. 1)
- Part 6: Ø158 mm (Total no. 2)
- Part 7: Ø114 mm (Total no. 1)
- Part 8: Fibre, Ø178 mm (Total no. 1)
- Part 9: Alu., Ø22 mm (Total no. 1)
- Part 10: Fibre, Ø54 mm (Total no. 1)
- Part 11: Ø133 mm (Total no. 1)
- Part 12: Ø165 mm (Total no. 1)
Manufacturer information
Danfoss A/S
Practical help
Before use
- Verify the valve model is ICS, ICM, or ICLX size 125.
- Ensure the inspection kit code matches 027H7194.
- Check the material type (Fibre or Aluminium) for each seal before installation.
- Verify the quantity of each part against the 'Total no.' listed in the manual.
Images and diagrams
- The diagrams show the exploded view of the valve assembly, indicating the order and position of seals (numbered 1-12).
- Each valve type (ICS, ICM, ICLX) has a specific diagram showing which parts are applicable to that model.
Model compatibility
- This kit is strictly for size 125 valves.
- Ensure the correct diagram is referenced for the specific valve type (ICS, ICM, or ICLX).
