Installation Guide for Danfoss 027F3376 Overhaul Kit
Installation guide and spare parts list for the Danfoss 027F3376 overhaul kit, designed for PM size 65 valves with a standard cone. Includes exploded diagrams and component specifications.
Table of contents
Manual images
Click an image to enlargeQuick Guide
This document provides the spare parts list and exploded view diagrams for the Danfoss 027F3376 overhaul kit. This kit is specifically designed for use with PM size 65 valves featuring a standard cone. Before beginning any maintenance, ensure you have identified the correct valve configuration (PM1 or PM3) and verified all parts against the provided list.

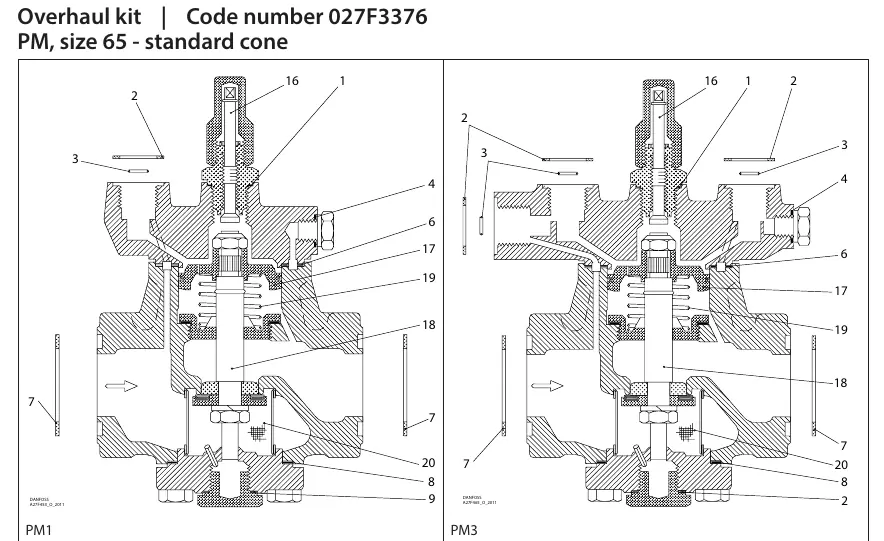

Exploded View Diagrams
The guide includes detailed exploded view diagrams for both PM1 and PM3 valve configurations. These diagrams identify the placement of components numbered 1 through 20, allowing for accurate assembly and replacement of parts during the overhaul process.

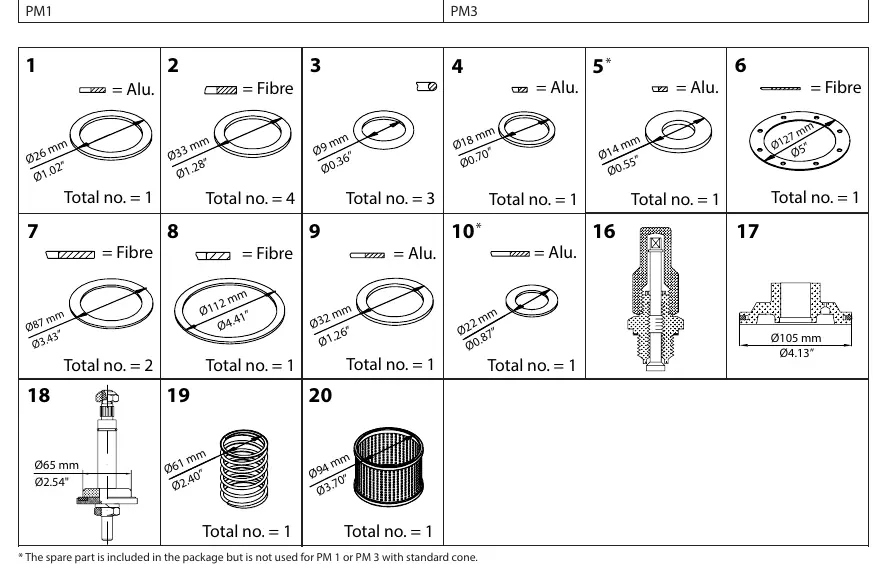

Spare Parts List
The kit contains various components made of Aluminum (Alu.) or Fiber (Fibre). Key components include:
- Gaskets and Seals: Various diameters ranging from 9mm to 127mm, specified by material type.
- Internal Components: Springs, cones, and valve internals identified by their respective reference numbers (1-20).
- Dimensions: All parts are listed with their corresponding diameters in both millimeters (mm) and inches.
Important Notes
Please note that some spare parts included in the package may not be used for specific PM1 or PM3 configurations with a standard cone. Always refer to the exploded view diagram to confirm which parts are required for your specific valve model.
Manufacturer information
Danfoss A/S
Practical help
Before use
- Verify the valve model is PM size 65 with a standard cone.
- Ensure the kit code 027F3376 matches your specific valve requirements.
- Cross-reference all parts in the kit with the provided exploded view diagram before starting assembly.
- Identify whether your valve is a PM1 or PM3 configuration.
Images and diagrams
- The diagrams provide an exploded view of PM1 and PM3 valves, showing the exact assembly order and location of parts 1 through 20.
Model compatibility
- Designed specifically for PM size 65 valves with a standard cone.
- Some parts included in the kit may not be used for specific PM1 or PM3 configurations.
