Installation Guide for Danfoss Overhaul Kit 027F3385

A technical installation and parts reference guide for the Danfoss 027F3385 overhaul kit, featuring exploded diagrams for PM1 and PM3 valves and a detailed component list.

Table of contents

Manual images

Click an image to enlarge
Exploded view diagrams for PM1 and PM3 valves Page 1 Component list with quantities and material types Page 1

Quick Guide to the Overhaul Kit

This document serves as an installation and parts reference guide for the Danfoss Overhaul Kit 027F3385, specifically designed for PM size 50 V-cone valves. It provides exploded view diagrams and a comprehensive list of components required for maintenance.

Valve Assembly Diagrams

The guide includes detailed exploded view diagrams for both PM1 and PM3 valve configurations. These diagrams illustrate the internal structure and the correct positioning of components 1 through 20. Use these diagrams as a primary reference during the disassembly and reassembly of the valve.

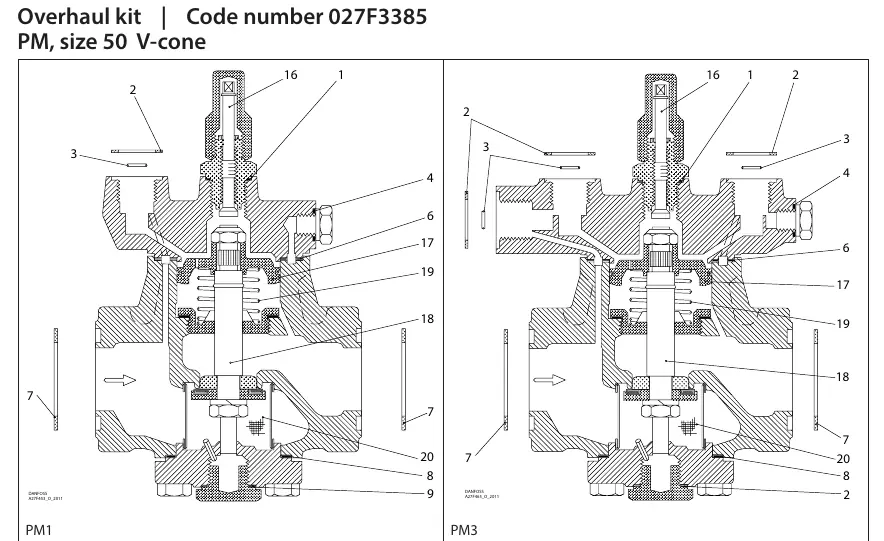

Exploded view diagrams for PM1 and PM3 valves
Exploded view diagrams for PM1 and PM3 valves

Component List and Specifications

The overhaul kit contains various parts made of Aluminum (Alu.) or Fibre. Each component is numbered to correspond with the exploded view diagrams. The guide specifies the quantity required for each part (Total no.). Ensure all parts are accounted for before beginning the maintenance procedure.

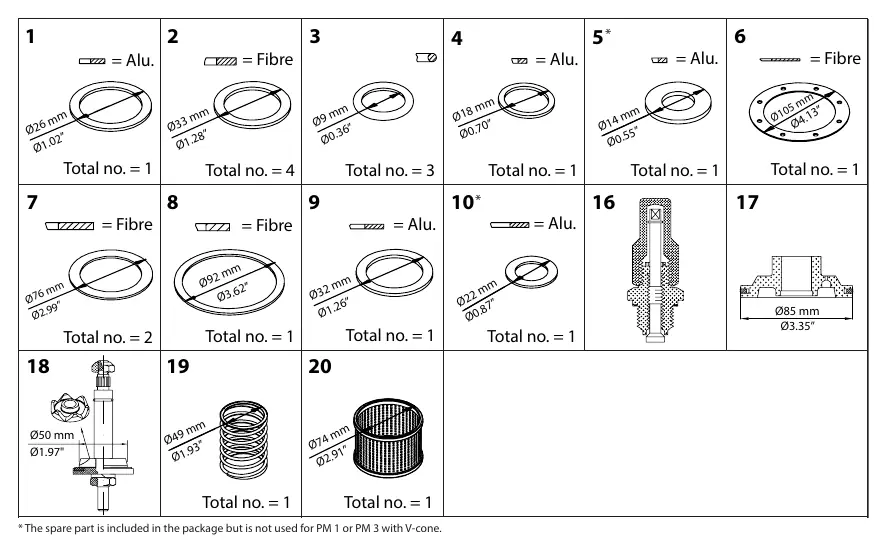

Component list with quantities and material types
Component list with quantities and material types

Important Notes

Please note that part 10 is included in the package but is not used for PM 1 or PM 3 valves with a V-cone configuration. Ensure you verify your specific valve model before installation to avoid confusion regarding unused parts.

Manufacturer information

Danfoss A/S

Brand profile
Manufacturer website https://www.danfoss.com Support https://www.danfoss.com/en/service-and-support/ Manufacturer manuals https://www.danfoss.com/en/service-and-support/downloads/

Practical help

Common problems

Part 10 is included in the kit but not used

Do not attempt to install part 10 if you are servicing a PM 1 or PM 3 valve with a V-cone; it is not required for this specific configuration.

Before use

  • Verify the valve model (PM 1 or PM 3)
  • Confirm the valve is a size 50 V-cone type
  • Check all parts against the provided list to ensure the kit is complete
  • Identify material types (Alu vs Fibre) for correct placement during assembly

Images and diagrams

  • The diagrams show the exploded view of PM1 and PM3 valves.
  • Numbers in the diagram correspond directly to the component list provided in the table.

Model compatibility

  • Designed specifically for PM, size 50 V-cone valves.
