Installation Guide for Danfoss Overhaul Kit 027F3387

This guide provides the parts breakdown and installation reference for the Danfoss Overhaul Kit (Code 027F3387) designed for PM size 80 V-cone valves. Includes exploded view diagrams and component specifications.

Table of contents

Quick Guide from the Manual

This document serves as the official spare parts and installation reference for the Danfoss Overhaul Kit, code number 027F3387, specifically for PM size 80 V-cone valves. It provides an exploded view of the valve assembly and a detailed list of components included in the kit to assist with maintenance and repair procedures.

Exploded View and Component Identification

The provided diagram illustrates the assembly of the PM size 80 valve. Components are numbered to correspond with the parts list. Ensure all parts are accounted for before beginning maintenance. The diagram shows the relative positioning of seals, springs, and internal valve components.

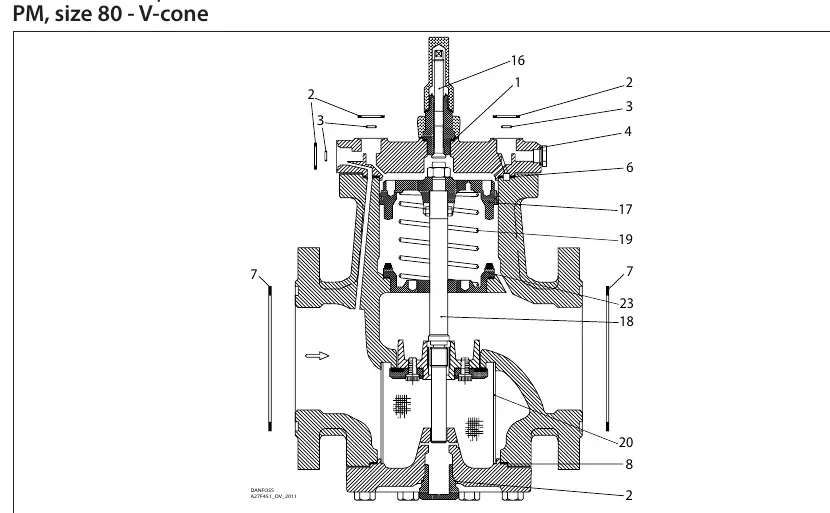

Exploded view of the PM size 80 valve assembly.

Parts List and Specifications

The kit contains various seals, gaskets, and internal components. Materials are specified as either Aluminium (Alu.) or Fibre. Please verify the quantities and dimensions below:

Item 1: Fibre, Ø38 mm (1.5"), Qty: 1
Item 2: Fibre, Ø33 mm (1.28"), Qty: 4
Item 3: Ø9 mm (0.36"), Qty: 3
Item 4: Alu., Ø18 mm (0.70"), Qty: 1
Item 5: Alu., Ø14 mm (0.55"), Qty: 1
Item 6: Fibre, Ø154 mm (6.06"), Qty: 1
Item 7: Fibre, Ø149 mm (5.87"), Qty: 2
Item 8: Fibre, Ø134 mm (5.28"), Qty: 1
Item 9: Alu., Ø32 mm (1.26"), Qty: 1
Item 10: Alu., Ø22 mm (0.87"), Qty: 1
Item 16: Internal component
Item 17: Ø120 mm (4.72")
Item 18: Internal assembly, 265 mm (10.44")
Item 19: Spring, Ø80 mm (3.15"), Qty: 1
Item 20: Filter/Screen, Ø110 mm (4.33"), Qty: 1
Item 23: Ø114 mm (4.49")

Important Notes

Parts marked with a single asterisk (*) are included in the package but are not used for the PM size 80 with V-cone configuration.
Parts marked with a double asterisk (**) are included in the manual opening device.

Manufacturer information

Danfoss A/S

Brand profile

Manufacturer website https://www.danfoss.com Support https://www.danfoss.com/en/service-and-support/ Manufacturer manuals https://www.danfoss.com/en/service-and-support/downloads/

Practical help

Common problems

Unused parts after assembly

Check if the part is marked with an asterisk (*). These parts are included in the kit but are not used for the PM size 80 with V-cone configuration.

Before use

Verify the kit code is 027F3387.
Confirm the valve is a PM size 80 V-cone model.
Lay out all parts and compare against the exploded view diagram.
Identify material types (Alu. vs Fibre) to ensure correct placement.

Images and diagrams

The exploded view shows the vertical assembly order of the valve components.
Numbers in the diagram correspond to the numbered parts list provided below the diagram.

Model compatibility

This kit is specifically for PM size 80 V-cone valves.
Some parts included in the kit are not compatible with the V-cone configuration and should be set aside.
