Operating manual for Dometic Gale 12V Electric Air Pump
Quick guide for the Dometic Gale 12V Electric Air Pump. Learn how to operate, troubleshoot, and maintain your 12V air pump for tents and awnings.
Table of contents
Quick guide from the manual
The Dometic Gale 12V Electric Air Pump is designed for inflating awning tents and other inflatables using a 12V DC vehicle power supply. Important: Do not operate the pump continuously for longer than 15 minutes to prevent motor overheating. If used for 15 minutes, allow the device to cool down for 30 minutes before further use.
Using the electric air pump
- Connect the air hose: Attach the air hose to the inflation port on the pump (see fig. 1, page 3).
- Connect to power: Plug the 12V DC connector into your vehicle's power socket (see fig. 2, page 3).
- Attach to inflatable: Connect the appropriate nozzle adapter to your inflatable (see fig. 3, page 3).
- Set pressure: Use the control panel to set the desired pressure. The LCD display shows the current pressure (see fig. 5, page 3).
- Inflation: Start the pump. The device features an auto-off function that stops inflation once the preset pressure is reached (see fig. 7, page 3).
Safety instructions
- Do not operate the pump if it is visibly damaged.
- Keep children and pets away from the pump during operation.
- Do not direct the air stream at your face or body.
- Ensure the pump is sufficiently ventilated during operation.
- Do not use the pump in wet conditions or submerge it in liquid.
Cleaning and maintenance
- Occasionally clean the product with a damp cloth.
- After each use, store the plug in the opening provided.
- Ensure the supply cord and air hose are not trapped or kinked during storage.
- Do not use sharp or hard objects or cleaning agents for cleaning, as these may damage the product.
Troubleshooting
If the pump does not work and the LCD display does not illuminate, check that the DC plug is fully inserted into the socket and test the socket with another 12V device. If the LCD illuminates but the pump does not work, ensure the power source is rated for at least 10A. If the pressure increases quickly, check the nozzle adapter and inflation port for obstructions or kinks in the air hose.
Technical data
- Voltage: 12V DC
- Delivery rate: 100 l/min ± 10%
- Operating time: Maximum 15 min
- Noise emission: 32 dB
- Dimensions: 280 x 200 x 90 mm
- Weight: 1.79 kg
Manufacturer information
Dometic
Practical help
Common problems
Pump does not work and LCD display is off
Check that the DC plug is fully inserted into the socket. Test the socket with another 12V device to ensure it is working.
Pump does not work but LCD display is on
Ensure the 12V power source is rated for at least 10A.
Pressure increases quickly
Turn off the pump immediately. Check the nozzle adapter and inflation port for obstructions and ensure the air hose is not kinked.
Before use
- Ensure the power cable and plug are dry and free of rust or foreign matter.
- Check that the voltage specification on the data plate corresponds to your power supply.
- Ensure the pump is placed on a stable surface.
- Verify the air hose is not kinked or trapped.
- Make sure the pump is sufficiently ventilated.
Specs in practice
- Operating time
- Maximum 15 minutes of continuous use; allow 30 minutes to cool down afterwards.
- Delivery rate
- 100 l/min ± 10%.
- Noise emission
- 32 dB.
Images and diagrams

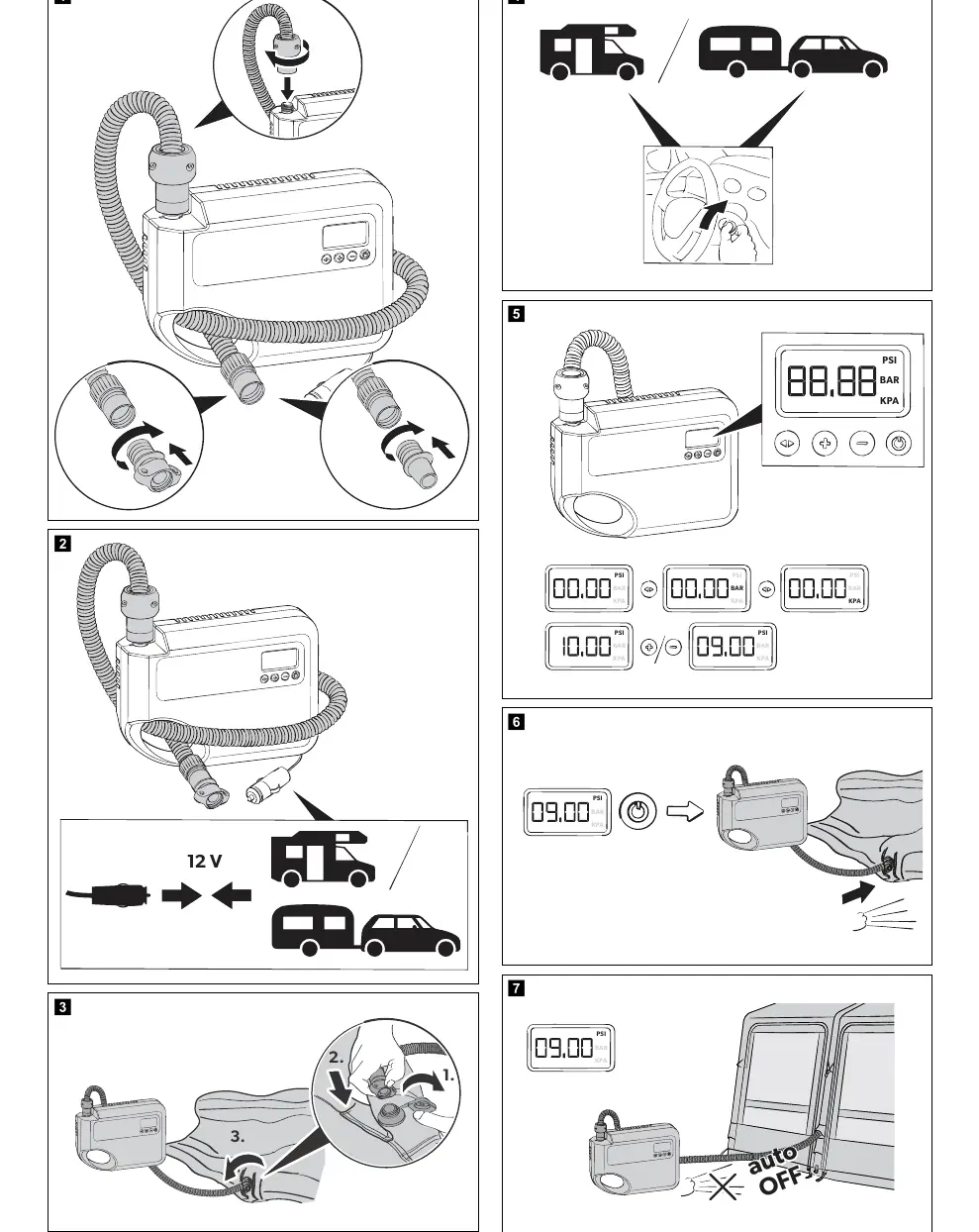

- Fig 1: Connecting the air hose to the pump.
- Fig 2: Connecting the pump to a 12V vehicle power socket.
- Fig 5: Using the control panel to set pressure.
- Fig 7: Auto-off function when target pressure is reached.
Model compatibility
- Designed for 12V DC power supply sockets.
- Intended for inflatables such as awning tents and tents.
