allen + roth 1331B Drapery Rod Set

Quick guide from the manual

This guide provides instructions for installing the allen + roth drapery rod set. Before beginning, ensure all parts are present. If any parts are missing or damaged, do not attempt to assemble the product.

Estimated Assembly Time: 30 minutes.

Tools Required (Not Included): Drill, 3/16 inch drill bit, level, screwdriver.

Package Contents

The set includes:

• 3x Brackets
• 2x Finials
• 6x Screws
• 6x Wall Anchors

Installation Overview

1. Marking: Use the bracket as a guide to mark the location on the wall for mounting screws at the desired height.
2. Drilling: Remove the bracket. Drill a pilot hole using a 3/16 inch bit (not included) and insert the wall anchors.

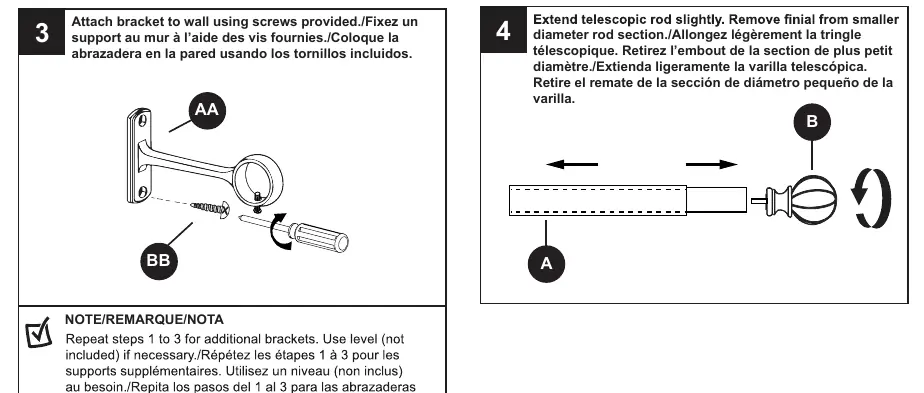

3. Mounting: Attach the bracket to the wall using the provided screws. Repeat for additional brackets as needed.
4. Preparation: Extend the telescopic rod slightly. Remove the finial from the smaller diameter rod section.

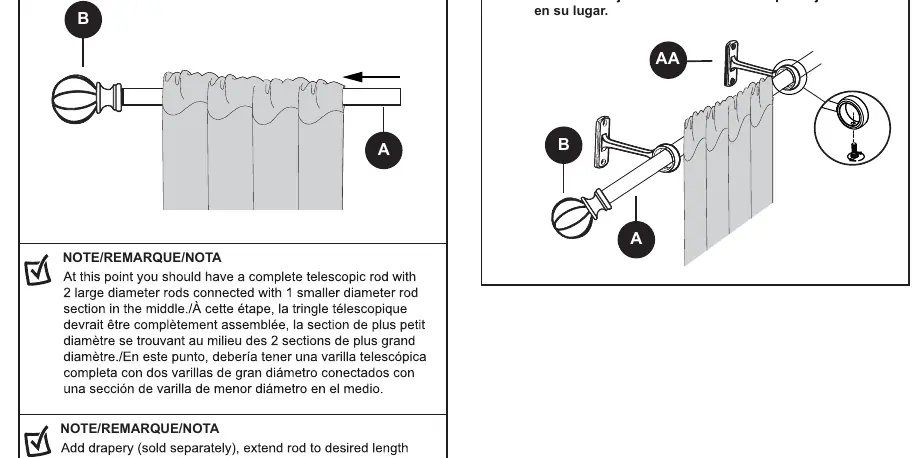

5. Assembly: Slide the additional rod over the smaller diameter rod.
6. Finishing: Reattach the finial and tighten the set screws on the brackets to lock the rod in place.

Troubleshooting

• Drapery rod not level: Ensure you use a level during installation.
• Drapery rod hook is loose: Ensure brackets are anchored correctly to wall studs or using the provided anchors.

Care and Maintenance

Clean with a soft cloth. Do not use abrasive cleaning agents, solvents, or polishes as they may damage the finish.
