User Manual for Eurom HVF 16-P High Speed Fan

Quick guide from the manual

This manual provides instructions for the safe and correct use of the Eurom HVF 16-P High Speed Fan. It is intended for indoor use only. Please read all safety instructions carefully before assembling or operating the device.

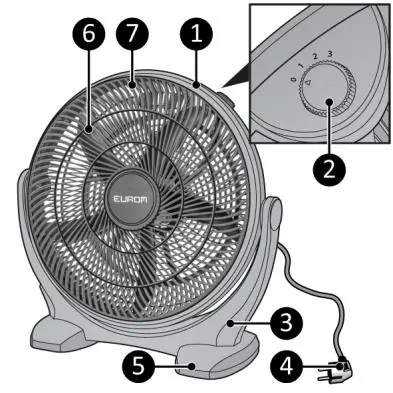

Description

The HVF 16-P is a high-velocity fan designed for indoor use. Key components include the main body, control knob, base, power plug, pedestals, fan, and safety grill.

Safety

General Safety Instructions:

• Do not splash water on or in the device.
• Do not immerse any part of the device in water or other liquids.
• Never insert fingers or objects into the openings.
• Do not spray insect repellents or cleaning agents on the device.
• Do not expose the device to strong vibrations or mechanical stress.
• Do not cover the device during use; keep textiles, curtains, and hair at least 30 cm away.

Safety During Operation:

• Do not use outdoors.
• Do not use if parts are dirty or wet.
• Do not use in humid environments (e.g., bathrooms, laundry rooms) or near water sources (baths, showers, pools).
• Do not use in dusty or dirty environments.
• Do not use near flammable materials, liquids, or fumes.
• Do not use near heat sources or open fire.
• Do not use at temperatures above 40°C.
• Do not use with automatic switching devices like timers or dimmers.

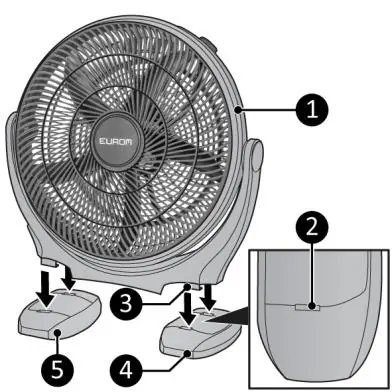

Assembly

The device is packed in one box. To assemble:

1. Locate the left and right pedestals.
2. Click the pedestals into the slot under the base. Refer to the markings on the pedestals for correct orientation.

Installation

1. Place the device on a flat, stable surface.
2. Ensure a minimum distance of 30 cm from any object, wall, or ceiling.
3. Ensure the control knob is in the OFF position.
4. Plug the device into an easily accessible, grounded wall socket.

Note on Extension Cables: Avoid using extension cables. If unavoidable, use an undamaged, grounded cable with a minimum power rating of 50 Watts and unwind it completely to prevent overheating.

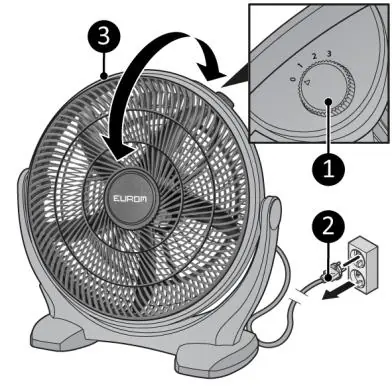

Operation

1. Ensure your hands are dry and the device is clean and undamaged.
2. Turn the control knob to the desired setting:
• Level 1: Low
• Level 2: Medium
• Level 3: High
3. To adjust the wind direction, ensure the device is OFF, then carefully push the main body to the desired angle.

Maintenance and Cleaning

Cleaning:

• Clean the device after each use and before storage.
• Vacuum the openings carefully to remove dust and dirt.
• Wipe the device with a damp, clean, soft, lint-free cloth or a soft brush.
• Let the device dry completely before use or storage.

Important: Do not use scouring pads, hard brushes, or flammable/aggressive cleaning products. Do not perform any repairs or modifications yourself; these must be carried out by a EUROM authorized professional.

Technical Specifications

• Voltage: 220-240 V ~ 50 Hz
• Power: 50 W
• Weight: 2.6 kg
• Protection rating: IPX0
• Protection class: Class II

Disposal

At the end of its life, dispose of the device according to local laws and regulations or return it to your supplier.
