User Manual for Fanelite 15880-R Fan

Quick guide from the manual

This fan is designed for indoor domestic use. Before first use, ensure the device is fully assembled. Do not operate the fan without the protective grilles. Always disconnect the power supply before cleaning or moving the unit. The fan is operated via the control panel or the included remote control.

Description

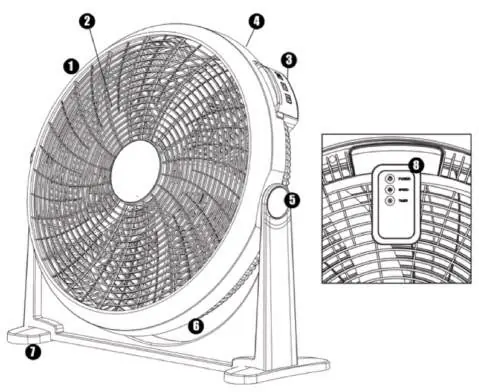

The fan consists of the following components: front grill, blade, control panel, carry handle, tilt axis, rear grill, feet, and a remote control.

Assembly and Installation

Floor Standing

Insert the front part (A) of the feet first, then push the rear part (B) until it snaps into place.

Wall Mounting

Do not install the feet if mounting on a wall. Use appropriate screws and plugs for your wall structure. Insert two #8 (4x30) screws into the wall, leaving approximately 1.6 cm exposed. Align the base of the fan with the screws and hang the unit, then tighten the screws to secure.

Operation

Use the control panel or remote control to operate the fan.

• Power/Speed: Press the ON/SPEED button to turn on and cycle through 3 speeds (Low, Medium, High).
• Timer: Press the TIMER button to set an automatic shut-off from 1 to 7 hours. Each press increases the time by one hour.
• Tilt: Adjust the head angle manually by moving it vertically. Only adjust when the fan is off and unplugged.

Replacing Batteries

Slide down the battery compartment cover on the back of the remote control. Insert two AAA batteries, ensuring correct polarity, and slide the cover back up.

Cleaning and Maintenance

Clean the fan at least once a month. Disconnect from power before cleaning. Use a vacuum cleaner with a suitable nozzle to remove dust from grilles. Do not disassemble the fan. Use a soft, dry cloth; do not use water or detergents.
