User Manual for Taurus Airbrume 2500 Mist Fan
Quick guide for the Taurus Airbrume 2500 mist fan. Includes assembly instructions, operation modes, cleaning, and maintenance tips.
Quick answers from the manual
Quick answer
- The Taurus Airbrume 2500 is a mist fan with adjustable speed, mist intensity, oscillation, and timer functions. It requires assembly of the base, wheels, and grill/propeller before use. p. 12, 13, 14
Key actions
- Assembly p. 13
- Filling water p. 13
- Cleaning p. 15
First start
- Remove packaging, assemble base/wheels/grill, insert batteries, fill water tank, connect to power. p. 13, 14
Problems and fixes
Mist stops generating
The water tank is empty; refill the tank.
p. 14Maintenance and reset
- Clean the water tank and base every 72 hours. p. 14
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Oscillation | 75 degrees | Automatic rotation range | p. 14 |
| Timer | 0.5 - 7.5 hours | Operating time control | p. 14 |
Where to find it in the PDF
- Assembly p. 4, 5
- Operation p. 14
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Taurus Airbrume 2500 is a mist fan designed to provide cooling and humidity. Before first use, ensure all packaging is removed and the device is assembled correctly. The fan requires assembly of the base, wheels, and grill/propeller. Always use clean, filtered, or distilled water in the tank and clean the tank and base every 72 hours to maintain hygiene.
Description

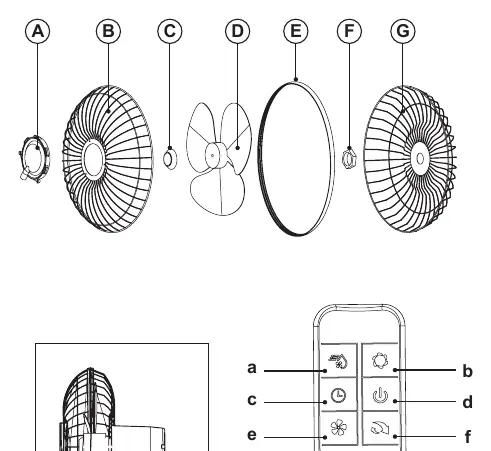

The device consists of the following main components: Mist diffuser, Front grill, Propeller nut, Propeller, Fixing belt, Grill nut, Rear grill, Motor body, Motor shaft, Mist tube, Base pipe, Water tank, Base, Wheels, Empty water tank indicator, Supply cord, and Supply cord housing.
Installation
Assembling the base and wheels
Place the appliance face down to attach the base to the column using the provided screws, ensuring cables are inserted inside. Similarly, attach the wheels by pressing them into their housing.
Assembling the grill and propeller
Connect the main part of the appliance to the base and secure it with the provided screw. Fit the rear grill onto the motor body and tighten the grill nut. Attach the propeller to the motor shaft and secure it with the propeller nut. Finally, attach the front grill, secure it with the fixing belt and safety screw, and connect the mist tube to the mist diffuser.
Operation
Fan and Mist functions
Turn the appliance on using the On/Off button. Select the desired fan speed or mist intensity using the buttons on the control panel or remote control. The water tank provides 5 to 8 hours of mist depending on the intensity setting. When the tank is empty, the mist function stops, and the empty water tank indicator lights up.
Modes and Timer
Adjust the wind mode (Normal, Breeze, Night) using the MODE button. The timer function allows you to set the operating time from 0.5 to 7.5 hours in 0.5-hour increments by pressing the TIMER button repeatedly.
Oscillation
Activate the oscillation function to allow the fan to automatically rotate within a 75-degree range using the swing button on the control panel or remote.
Cleaning and Maintenance
Always disconnect the appliance from the mains before cleaning. Clean the exterior with a damp cloth and a few drops of detergent; do not immerse the appliance in water. Wash the water tank with warm soapy water. To prevent lime scale, use distilled or filtered water. If necessary, use a specific anti-lime scale product every 6 to 12 weeks depending on water hardness. Do not use vinegar or homemade solutions for decaling.
Manufacturer information
Taurus Group
Practical help
Common problems
Mist is not generating
Check if the water tank is empty. The empty water tank indicator will light up.
Base is unstable
Ensure the base is correctly secured to the column with the provided screws.
Propeller does not rotate
Check if the grill and propeller are correctly assembled and the nuts are tightened.
Before use
- Remove all packaging material from inside the appliance.
- Ensure the appliance is on a level surface.
- Check that the water tank is filled with clean, filtered, or distilled water.
- Ensure the plug is easily accessible.
- Install 2x AAA batteries in the remote control.
Specs in practice
- Water tank duration
- 5 to 8 hours depending on mist intensity.
Images and diagrams
- Fig 1: Base assembly.

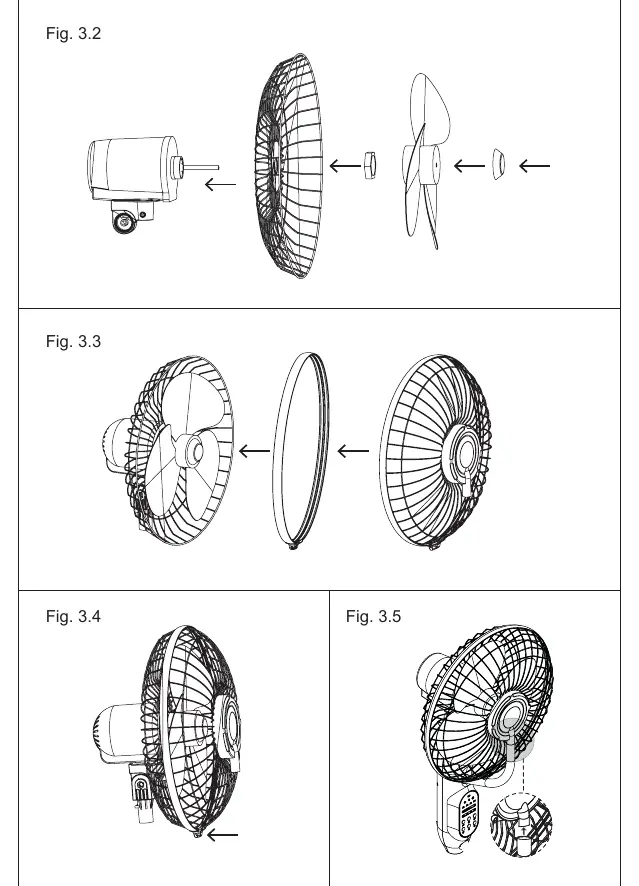

- Fig 3.1-3.5: Grill and propeller assembly.
- Fig 6.1: Drain plug location for emptying the base.
Model compatibility
- Use only distilled or filtered water.
- Do not use mineral water.
- Do not use essential oils.
