User Manual for Falcon 130W Foldable Solar Panel

Quick guide for the Falcon 130W Foldable Solar Panel. Learn how to set up, connect to a 12V battery, configure the solar charge controller, and troubleshoot common issues.

Table of contents

Quick guide from the manual

The Falcon 130W Foldable Solar Panel is designed to charge 12V batteries. To get started, unfold the panels, extend the stand, and connect the battery clips to your 12V battery terminals. Ensure the battery has at least 6V of charge for the controller to activate. Configure the battery type on the controller before placing the panels in direct sunlight.

Product Overview

The kit includes the following components:

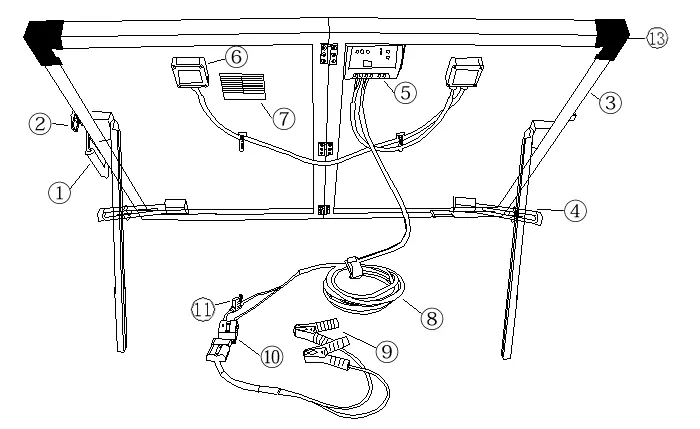

Diagram of the solar panel components and parts list

Solar Panels: Foldable aluminum frame with stand.
Solar Charge Controller: Manages charging and battery protection.
Connection Cables: Includes battery crocodile clips, Anderson plug, and ring terminals.
Accessories: Storage bag, corner protectors, and fuse.

Installation

Unfold: Unclip the two latches on the side of the unit and unfold the panels. Extend the stand to support the panels.
Connect: Connect the battery clips to the positive (red) and negative (black) terminals of your 12V battery. Ensure connections are secure.
Controller Setup: The kit requires a battery with at least 6V to start the controller. Press the setting button on the controller until it reaches Batt type. Hold the button for 5 seconds until digits flash, then press quickly to select the battery type: 1 (sealed lead acid), 2 (gel), or 3 (flooded).
Positioning: Place the kit in a clear, sunlit area free from obstructions. For maximum output, adjust the position throughout the day to track the sun.

Operation

The solar charge controller features two LED indicators:

PV LED (Charging Status): Solid green indicates the panel is charging the battery. Fast flashing green indicates system over-voltage.
BATT LED (Battery Status): Solid green indicates normal voltage/partially charged. Slowly flashing green indicates fully charged. Orange indicates low voltage (requires charging). Red indicates the battery is over-discharged.

Maintenance and Cleaning

To maintain performance, keep the panels clean. Sweep off dust and dirt using a soft brush, then wipe the surface with a wet cloth to remove grime. While the panels and controller are IP66 waterproof, it is recommended to protect the kit from rain to prevent rust on fittings.

Troubleshooting

Check Connections: Ensure all cables are secure and clean.
Check Polarity: Verify the battery connection polarity and ensure the battery generates at least 6V.
Check Sunlight: Ensure panels are exposed to sufficient light and face the sun directly.

Specifications

Model: folding2x65 (130W)

Max Power: 130W
Max Power Voltage: 20.5V
Max Power Current: 6.35A
Open Circuit Voltage: 24.0V
Short Circuit Current: 6.66A

Manufacturer information

Falcon Electronics

Brand profile

Manufacturer website https://falconelectronics.com/ Support https://falconelectronics.com/pages/contact-new

Practical help

Common problems

Solar controller does not turn on

Ensure the connected battery has at least 6V. The controller requires this minimum voltage to activate.

Battery not charging

Check that all connections are secure and clean. Verify that the battery polarity is correct and the panels are in direct sunlight.

PV LED flashing green

This indicates an over-voltage in the system. Check all connections.

Before use

Unclip the two latches and unfold the panels.
Extend the aluminum stand to support the panels.
Ensure the 12V battery has at least 6V of charge.
Connect red clip to positive (+) and black clip to negative (-) terminals.
Set the correct battery type (1=sealed, 2=gel, 3=flooded) on the controller.

Specs in practice

Max Power Voltage: 20.5V - The voltage at which the panel produces maximum power.
Max Power Current: 6.35A - The current at which the panel produces maximum power.

Images and diagrams

The diagram illustrates the rear of the solar panel, identifying the solar charge controller, connection box, battery clips, and folding stand mechanism.

Model compatibility

Designed for 12V sealed lead acid, gel, or flooded batteries.
Not designed for 24V charging without professional modification (unauthorized modification voids warranty).
Can charge multiple 12V batteries if connected in parallel, provided they are the same type and capacity.
