This document provides instructions for fitting and adjusting the Falcon Thermoset Toilet Seat. The seat features an adjustable stainless steel hinge system designed to fit various toilet pans. Ensure you have all parts before beginning installation.

Parts included

The seat is supplied with the following fixing kit (2x of each component, except the Fixing Key):

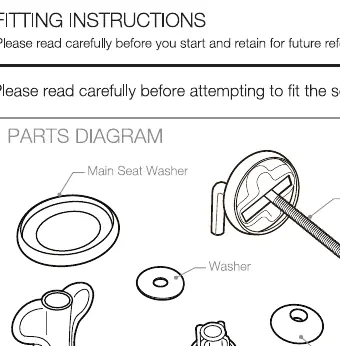

Parts diagram showing the assembly of the hinge and fixing kit.
Parts diagram showing the assembly of the hinge and fixing kit.
  • Main Seat Washer
  • Swivel Hinge Anchor
  • Washer
  • Dome Washer
  • Fixing Hole Insert
  • Nut
  • Fixing Key

Fitting the seat to the pan

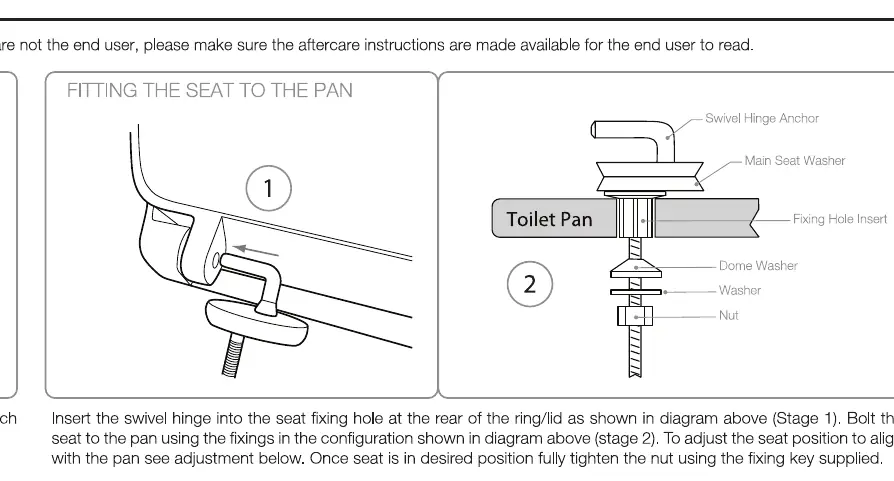

Fitting the seat to the pan showing the hinge insertion and bolting process.
Fitting the seat to the pan showing the hinge insertion and bolting process.
  1. Insert the swivel hinge into the seat fixing hole at the rear of the ring/lid.
  2. Bolt the seat to the pan using the fixings in the configuration shown in the diagram.
  3. Once the seat is in the desired position, fully tighten the nut using the provided fixing key.

Adjustment

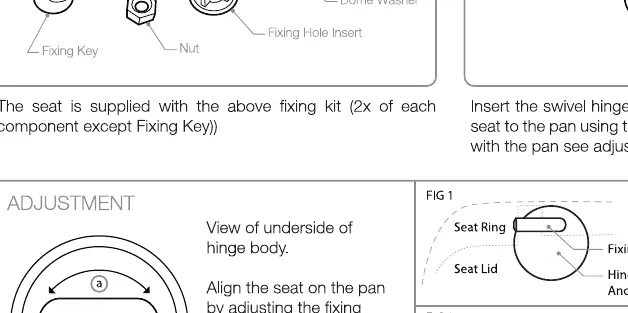

To align the seat on the pan, adjust the fixing bolts position. This can be done by rotating the disc (a) and sliding the fixing bolt backwards or forwards (b). Refer to the diagrams for minimum and maximum seat projection settings.

Adjustment mechanism for aligning the seat on the pan.
Adjustment mechanism for aligning the seat on the pan.

Aftercare instructions

  • Clean surfaces with a soft damp cloth and mild soap solution.
  • Do not use abrasive cleaning agents.
  • Do not scrub or scour the surface.
  • Do not stand on the lid or ring of your toilet seat.

Customer services

For further assistance, contact: Brassmill Lane Trading Estate, Bath BA1 3JF. Telephone: 01225 303900.

Manufacturer information

Falcon Electronics

Brand profile
Manufacturer website https://falconelectronics.com/ Support https://falconelectronics.com/pages/contact-new

Practical help

Common problems

Seat is loose

Ensure the nut is fully tightened using the provided fixing key.

Seat is not aligned with the pan

Rotate the disc (a) and slide the fixing bolt backwards or forwards (b) to adjust the position.

Before use

  • Verify all parts are present (2x of each component, except Fixing Key)
  • Ensure the toilet pan is clean and dry before installation
  • Identify the correct hinge anchor orientation for your desired seat projection

Specs in practice

Adjustable Stainless Steel Hinge
Allows for flexible positioning to fit various toilet pan sizes and shapes.

Images and diagrams

  • Parts Diagram: Shows the assembly order of the hinge, washers, and nut.
  • Fitting Diagram: Illustrates how the swivel hinge inserts into the seat and bolts to the pan.
  • Adjustment Diagram: Shows how to rotate the disc and slide the bolt for alignment.
  • Projection Diagrams: Shows how to position hinge anchors for minimum vs maximum seat projection.

Model compatibility

  • The hinge system is adjustable to accommodate different toilet pan dimensions.
